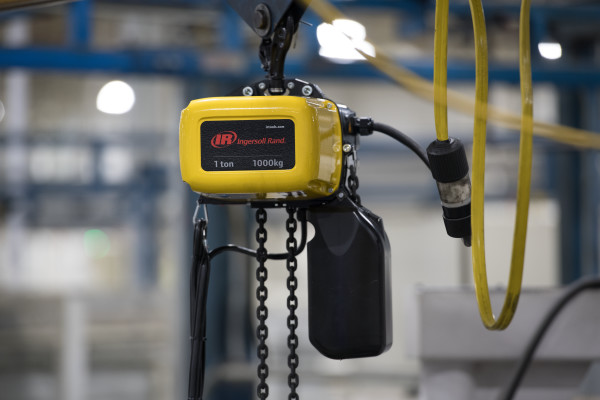

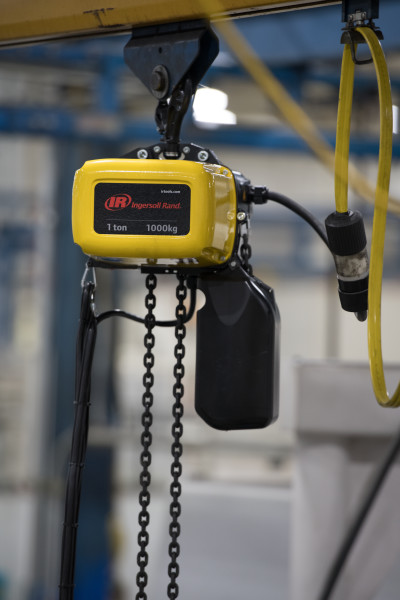

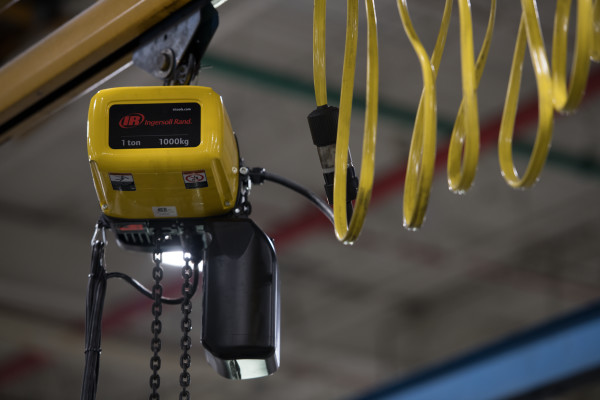

Ingersoll Rand ELK100-1ND100H-15-11-4CF15 ELK Series Electric Chain Hoist | 1 Ton Capacity | 15 ft Lift | 11 ft Drop | Hook Suspension | Pendent Control

Ingersoll Rand ELK100-1ND100H-15-11-4CF15 ELK Series Electric Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. Equipped with a 15 ft lift, 11 ft pendent drop, hook suspension, and pendent control, this electric chain hoist provides fast dual-speed lifting with smooth, accurate load positioning for demanding industrial operations.

Built on the ELK100-1ND100 three-phase platform, this hoist utilizes a single-fall load chain configuration to maximize lifting efficiency while maintaining precise control. According to the Ingersoll Rand ELK Series specification table, the base model delivers 32/8 ft/min (9.6/2.5 m/min) lifting speeds, an H4 (2m) duty rating, 24.2 in (617 mm) headroom, a 136.6 lb (62 kg) body weight, and 0.92 lb/ft (1.37 kg/m) chain weight, making it suitable for frequent industrial lifting applications.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1ND100H-15-11-4CF15 | SKU: 47661376001 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 15 ft | Pendent Drop: 11 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min (9.6/2.5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1 ton (2,200 lbs) for demanding industrial lifting applications.
• Three-phase electric operation for continuous-duty manufacturing and production environments.
• Dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min) provide efficient lifting with precise load positioning.
• Single-fall load chain configuration delivers fast, efficient lifting performance.
• 15 ft lift height accommodates elevated workstations and overhead lifting requirements.
• 11 ft pendent drop provides comfortable operator access from floor level.
• Hook suspension enables quick installation on compatible overhead support structures.
• Pendent control provides responsive and accurate raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting service.
• ELK100 Series construction is designed for dependable performance in demanding material handling applications.

Made in USA:

Applications:

• Manufacturing facilities.
• Production and assembly lines.
• Fabrication shops.
• Warehouse material handling.
• Maintenance departments.
• Machine installation and servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1 ton (2,200 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-1ND100 base model provides dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model uses a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What type of suspension is included?
  A: This model features hook suspension for attachment to a compatible overhead support structure.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.
