Ingersoll Rand ELK100-1ND100H-10-6-4CF15 ELK Series Electric Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Hook Suspension | Pendent Control

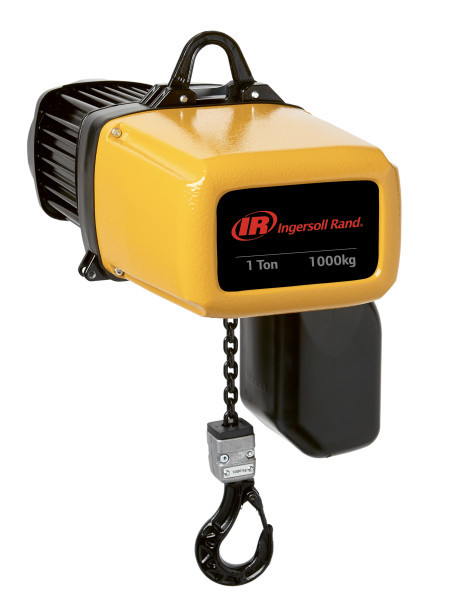

Ingersoll Rand ELK100-1ND100H-10-6-4CF15 ELK Series Electric Chain Hoist is designed for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. Featuring a 10 ft lift, 6 ft pendent drop, hook suspension, and pendent control, this electric chain hoist delivers fast dual-speed lifting with precise load positioning for demanding industrial environments.

Built on the ELK100-1ND100 three-phase platform, this hoist utilizes a single-fall load chain configuration to maximize lifting speed while maintaining smooth operation. According to the Ingersoll Rand ELK Series specification table, the base model provides 32/8 ft/min (9.6/2.5 m/min) lifting speeds, an H4 (2m) duty rating, 24.2 in (617 mm) headroom, a 136.6 lb (62 kg) body weight, and 0.92 lb/ft (1.37 kg/m) chain weight, making it well suited for frequent industrial lifting operations.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1ND100H-10-6-4CF15 | SKU: 47661375001 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Hook | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min (9.6/2.5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1 ton (2,200 lbs) for industrial overhead lifting applications.
• Three-phase electric operation for demanding production and material handling environments.
• Dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min) provide rapid lifting with precise positioning.
• Single-fall load chain configuration delivers efficient lifting performance.
• 10 ft lift accommodates a wide range of overhead lifting tasks.
• 6 ft pendent drop allows comfortable operation from floor level.

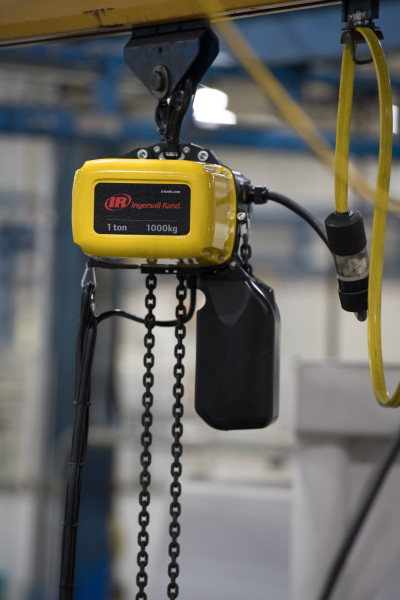

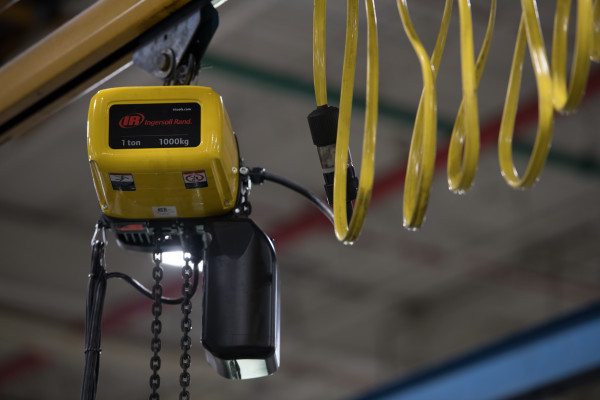

• Hook suspension enables quick installation on compatible overhead support structures.
• Pendent control provides responsive and accurate lifting and lowering of suspended loads.
• H4 (2m) duty classification is designed for frequent industrial lifting service.
• Compact ELK100 Series construction combines high lifting capacity with dependable operation.

Made in USA:

Applications:

• Manufacturing plants.
• Assembly operations.
• Fabrication facilities.
• Warehouse material handling.
• Maintenance departments.
• Machine installation and equipment servicing.
• General industrial overhead lifting.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1 ton (2,200 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-1ND100 base model provides dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model utilizes a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What type of suspension is included?
  A: This hoist features hook suspension for installation on compatible overhead support structures.
• Q: What duty rating does this hoist have?
  A: It is rated H4 (2m) for frequent industrial lifting applications.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
