Ingersoll Rand ELK100-1ND100E-10-6-4CF3 ELK Series Electric Chain Hoist | 1 Ton Capacity | 10 ft Lift | 6 ft Drop | Eye Bolt | Pendent Control

Ingersoll Rand ELK100-1ND100E-10-6-4CF3 ELK Series Electric Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1 Ton (2,200 lbs) lifting capacity. Equipped with a 10 ft lift, 6 ft pendent drop, eye bolt suspension, and pendent control, this electric chain hoist provides smooth dual-speed lifting with precise load positioning while offering a fixed eye mounting configuration for permanent installations.

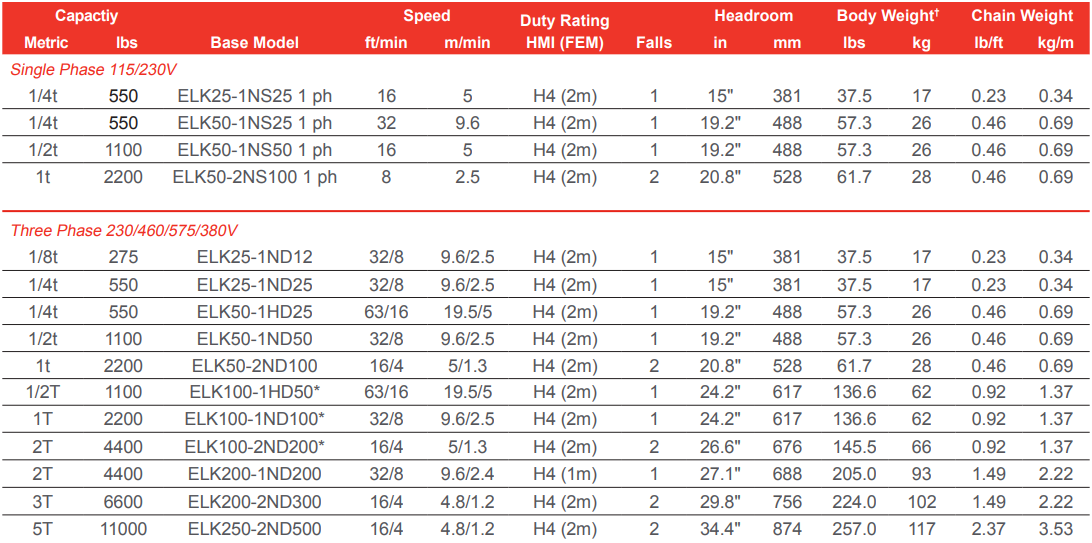

Built on the ELK100-1ND100 three-phase platform, this hoist utilizes a single-fall load chain configuration to maximize lifting efficiency while maintaining excellent control. According to the Ingersoll Rand ELK Series specification table, the base model delivers 32/8 ft/min (9.6/2.5 m/min) lifting speeds, an H4 (2m) duty rating, a 24.2 in (617 mm) headroom, a 136.6 lbs (62 kg) body weight, and a 0.92 lb/ft (1.37 kg/m) chain weight, making it well suited for frequent industrial lifting applications.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1ND100E-10-6-4CF3 | SKU: ELK100-1ND100E-10-6-4CF3 | Capacity: 1 Ton (2,200 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 10 ft | Pendent Drop: 6 ft | Suspension: Eye Bolt | Control Type: Pendent Control | Lifting Speed: 32/8 ft/min (9.6/2.5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1 ton (2,200 lbs) for industrial material handling applications.
• Three-phase electric operation supports continuous-duty manufacturing and production environments.
• Dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min) provide efficient lifting with precise load control.
• Single-fall load chain configuration delivers reliable lifting performance.
• 10 ft lift accommodates a wide variety of overhead lifting applications.
• 6 ft pendent drop provides comfortable operator access from floor level.
• Eye bolt suspension offers a secure fixed mounting option for permanent installations.
• Pendent control enables smooth and accurate raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting operations.
• Designed for reliable performance in manufacturing plants, maintenance departments, fabrication facilities, and warehouse operations.

Made in USA:

Applications:

• Fixed overhead lifting stations.
• Manufacturing facilities.
• Assembly and production lines.
• Fabrication shops.
• Warehouse material handling.
• Maintenance departments.
• Machine installation and servicing.

FAQs:

• Q: What is the rated lifting capacity of this hoist?
  A: This model is rated for 1 ton (2,200 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-1ND100 platform provides dual lifting speeds of 32/8 ft/min (9.6/2.5 m/min).
• Q: What type of suspension does this model use?
  A: This hoist utilizes an eye bolt suspension designed for fixed mounting applications.
• Q: How many chain falls does this hoist use?
  A: This model features a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What duty classification does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.
