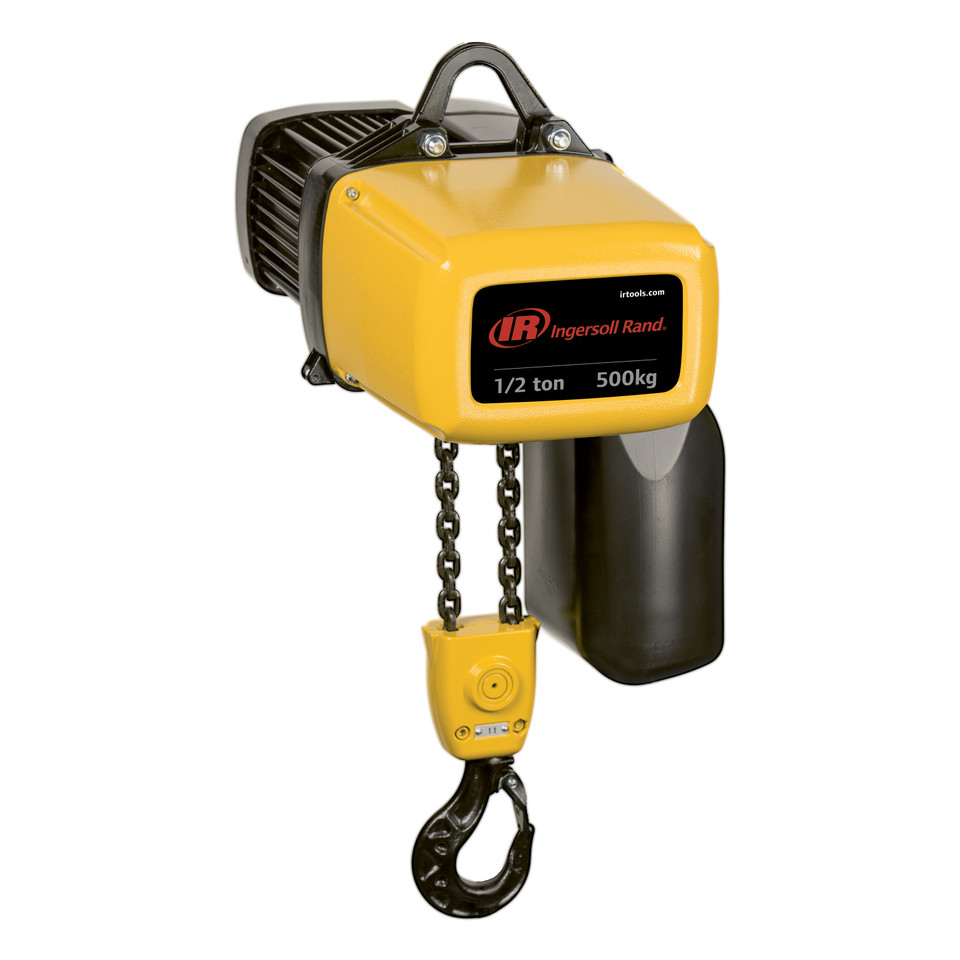

Ingersoll Rand ELK100-1HD50P-20-16-A4CF15 ELK Series Electric Chain Hoist | 1/2 Ton Capacity | 20 ft Lift | 16 ft Drop | Plain Trolley | Pendent Control

Ingersoll Rand ELK100-1HD50P-20-16-A4CF15 ELK Series Electric Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, fabrication, and material handling applications requiring a 1/2 Ton (1,100 lbs) lifting capacity. Equipped with a 20 ft lift, 16 ft pendent drop, plain trolley, and pendent control, this electric chain hoist combines high-speed lifting with smooth manual trolley travel for accurate load positioning along compatible beam systems.

Built on the ELK100-1HD50 three-phase platform, this hoist utilizes a single-fall load chain configuration for efficient lifting performance. According to the Ingersoll Rand ELK Series specification table, the base model delivers 63/16 ft/min (19.5/5 m/min) lifting speeds, an H4 (2m) duty rating, a compact 24.2 in (617 mm) headroom, a 136.6 lb (62 kg) body weight, and a 0.92 lb/ft (1.37 kg/m) chain weight. The integrated plain trolley enables smooth manual horizontal travel for flexible load placement in industrial workspaces.

Type: Electric Chain Hoist | Series: ELK Series | Model: ELK100-1HD50P-20-16-A4CF15 | SKU: 47670964001 | Capacity: 1/2 Ton (1,100 lbs) | Power Supply: Three Phase 230/460/575/380V | Lift: 20 ft | Pendent Drop: 16 ft | Suspension: Plain Trolley | Control Type: Pendent Control | Lifting Speed: 63/16 ft/min (19.5/5 m/min) | Duty Rating: H4 (2m) | Falls: 1 | Headroom: 24.2 in (617 mm) | Body Weight: 136.6 lbs (62 kg) | Chain Weight: 0.92 lb/ft (1.37 kg/m)

Features:

• Rated lifting capacity of 1/2 ton (1,100 lbs) for industrial overhead lifting applications.
• Three-phase electric operation supports demanding production and material handling environments.
• Dual lifting speeds of 63/16 ft/min (19.5/5 m/min) provide rapid lifting with controlled positioning.
• Single-fall load chain configuration delivers efficient lifting performance.
• 20 ft lift accommodates elevated workstations and extended lifting requirements.
• 16 ft pendent drop provides comfortable operator access from floor level when mounted at greater heights.
• Plain trolley allows smooth manual movement along compatible beam systems.
• Pendent control enables accurate raising and lowering of suspended loads.
• H4 (2m) duty classification supports frequent industrial lifting service.
• Designed for reliable operation in manufacturing plants, warehouses, fabrication shops, and maintenance facilities.

Made in USA:

Applications:

• Manufacturing facilities.
• Assembly and production lines.
• Fabrication shops.
• Warehouse material handling.
• Maintenance departments.
• Machine installation and servicing.
• General industrial overhead lifting requiring manual trolley travel.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: This model is rated for 1/2 ton (1,100 lbs).
• Q: What lifting speeds does this hoist provide?
  A: The ELK100-1HD50 base model provides dual lifting speeds of 63/16 ft/min (19.5/5 m/min).
• Q: How many chain falls does this hoist use?
  A: This model utilizes a single-fall load chain configuration.
• Q: What is the headroom?
  A: The headroom is 24.2 inches (617 mm).
• Q: What is the advantage of the plain trolley?
  A: The plain trolley allows the hoist to be moved manually along a compatible beam, providing flexible horizontal load positioning.
• Q: What duty rating does this hoist have?
  A: It carries an H4 (2m) duty rating for frequent industrial lifting applications.

Looking for more information about Ingersoll Rand Electric Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
