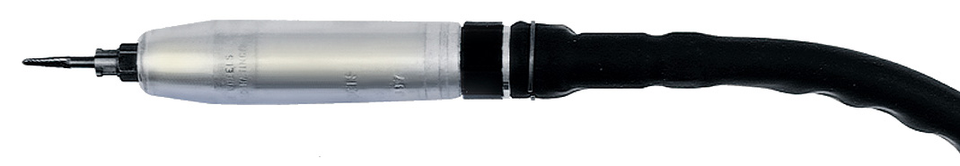

Ingersoll Rand DG600G2 Pencil Grinder is a compact pneumatic grinding tool designed for precision material removal and finishing in areas where a larger grinder may be difficult to position. With a 60,000 RPM operating speed, 1/8" collet, and rear exhaust, this model is suited to detailed grinding and deburring tasks using compatible 1/8" shank accessories.
The slim pencil-style configuration of the Ingersoll Rand DG600G2 supports close control when working on small features and confined areas. Its 60,000 RPM speed is intended for compatible high-speed accessories, while the rear exhaust directs discharged air away from the front of the tool and immediate work area.
Type: Pencil Grinder | Model: DG600G2 | Speed: 60,000 RPM | Collet Size: 1/8" | Exhaust: Rear Exhaust
Features:
- 60,000 RPM operating speed supports precision grinding and material removal with compatible high-speed accessories.
- 1/8" collet accepts compatible accessories with 1/8" shanks.
- Pencil-style configuration provides a compact tool profile for detailed work and access to confined areas.
- Rear exhaust directs discharged air away from the front of the tool and the immediate point of work.
- Pneumatic operation supports use with a compatible compressed-air supply.
Applications:
- Precision grinding and deburring of small components and detailed work areas.
- Removing minor burrs and refining edges where controlled access is required.
- Finishing work in confined locations that are difficult to reach with larger grinding tools.
- Surface preparation and material removal using compatible 1/8" shank accessories rated for the tool's operating speed.
FAQs:
- Q: What is the operating speed of the Ingersoll Rand DG600G2?
A: The DG600G2 is rated at 60,000 RPM. - Q: What size accessories fit this pencil grinder?
A: The tool uses a 1/8" collet and accepts compatible accessories with a 1/8" shank. Accessories should also be rated for the tool's operating speed. - Q: Where does the DG600G2 exhaust air?
A: This model uses a rear exhaust configuration, directing discharged air away from the front of the tool. - Q: What types of work is a pencil grinder suited for?
A: Its compact configuration is suited to detailed grinding, deburring, edge refinement, and similar material-removal tasks where precise tool positioning is important. - Q: What should be checked when selecting an accessory for this grinder?
A: Verify that the accessory has a compatible 1/8" shank and is rated for use at the grinder's 60,000 RPM operating speed.
| SKU | 1 min. | Throttle Style | Output | Exhaust | Spindle Offset | L | @ Free Speed | @ Free Speed | Standard Collet |
|---|---|---|---|---|---|---|---|---|---|
| rpm | in (mm) | in (mm) | cfm | dBA | Insert | ||||
| DG600G2 | 60,000 | Twist | 1/8" Collet | Rear | 0.3" (8) | 5.3" (136) | 7 | 77 | 47568-1 |
| DG600G2K | 60,000 | Twist | 1/8" Collet | Rear | 0.3" (8) | 5.3" (136) | 7 | 77 | 47568-1 |
Looking for more information about the Ingersoll Rand Pencil Grinder? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Grinders for your application, please call (800) 608-5210 or email info@intlairtool.com
