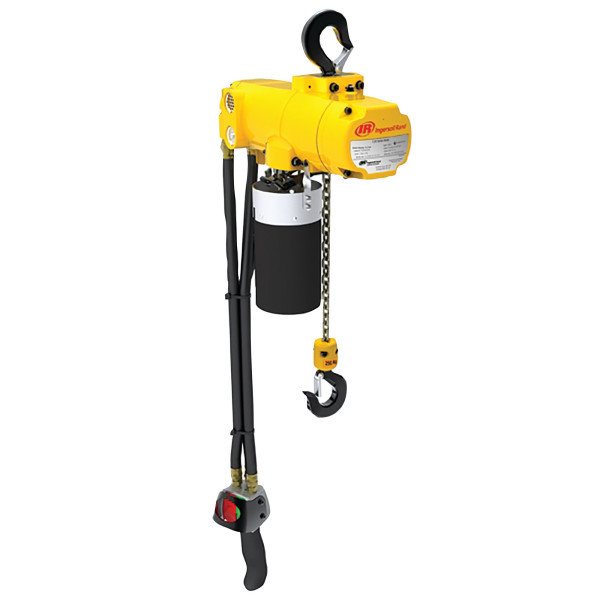

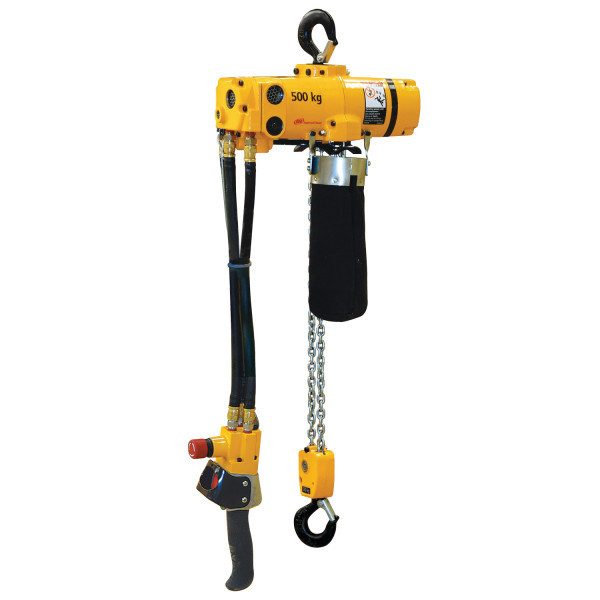

Ingersoll Rand CL500K-2C3-C3 CLK Series Air Chain Hoist | 1/2 Ton Capacity | 3 ft Lift | 3 Drop | Steel Snap Hook | Pendent Control

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand CL500K-2C3-C3 Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) capacity with a 3 ft lift and 3 ft pendent drop for efficient load handling in areas with limited lifting height. Part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor engineered for continuous 100% duty cycle operation, delivering reliable lifting performance throughout demanding industrial shifts. The responsive 2-button pendent control enables smooth and accurate load positioning, while the steel snap hook with safety latch provides secure load engagement.

Engineered for reliable industrial service, the CL500K-2C3-C3 features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. Supplied without a chain container, this hoist is ideal for workstations, maintenance bays, fabrication areas, and assembly operations where short lifting heights are required.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 3 ft | Pendent Drop: 3 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: None | Chain Falls: 2 | Load Chain Size: 5 × 15 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle performance.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Two-fall load chain configuration supports the rated 1/2 ton lifting capacity.
• Compact hook-mounted design minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Short-travel lifting operations in manufacturing and assembly facilities.
• Maintenance departments servicing machinery and production equipment.
• Machine shops and fabrication facilities handling fixtures and fabricated components.
• Workstations with limited overhead clearance requiring compact lifting equipment.
• General material handling applications utilizing compressed air-powered hoists.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL500K-2C3-C3 is rated to lift up to 1/2 ton (1,100 lb / 500 kg).
• Q: How many chain falls does this model use?
  A: This hoist utilizes a 2-fall load chain configuration designed for its rated lifting capacity.
• Q: Does this model include a chain container?
  A: No. This version is supplied without a chain container.
• Q: What air supply is required?
  A: The hoist operates on clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air connection.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous industrial lifting applications.
