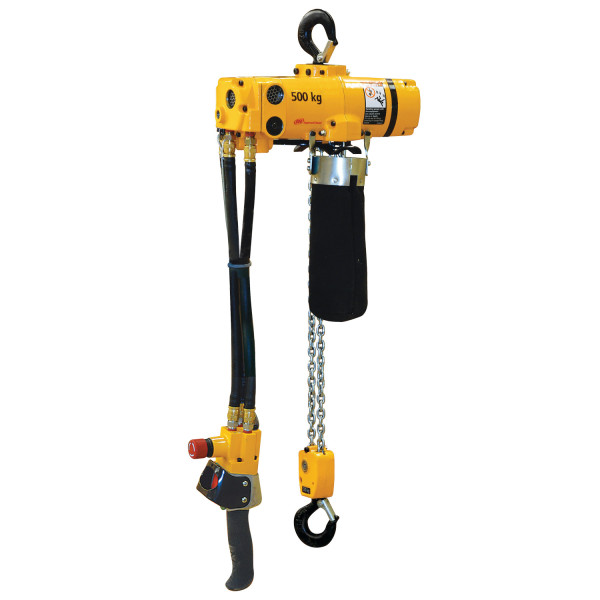

Ingersoll Rand CL500K-2C10-C6U CLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Ingersoll Rand CL500K-2C10-C6U Air Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications. Featuring a 1/2 Ton (1,100 lb / 500 kg) capacity, 10 ft lift, and 6 ft pendent drop, this CLK Series pneumatic hoist utilizes a six-vane air motor engineered for continuous 100% duty cycle operation. The responsive 2-button pendent control enables smooth, accurate load positioning, while the steel snap hook with safety latch provides secure load attachment during lifting operations.

Designed for reliable industrial service, the CL500K-2C10-C6U incorporates a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain organized during operation, making this hoist well suited for production facilities, maintenance departments, fabrication shops, and industrial assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 2 | Load Chain Size: 5 × 15 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Fabric chain container helps keep excess load chain organized and protected.
• Compact hook-mounted configuration minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Lifting machinery, fabricated components, and production assemblies weighing up to 1/2 ton.
• Manufacturing and production facilities utilizing compressed air-powered lifting equipment.
• Maintenance departments handling motors, pumps, tooling, and replacement components.
• Machine shops and fabrication facilities requiring precise overhead lifting.
• Industrial assembly operations where continuous-duty pneumatic lifting is preferred.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL500K-2C10-C6U has a rated lifting capacity of 1/2 ton (1,100 lb / 500 kg).
• Q: How many chain falls does this model have?
  A: This model utilizes a 2-fall load chain configuration to safely lift its rated 1/2 ton capacity.
• Q: Does this model include a chain container?
  A: Yes. It includes a fabric chain container to collect excess load chain during operation.
• Q: What air supply is required?
  A: The hoist operates on clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. Its six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for demanding industrial lifting applications.
