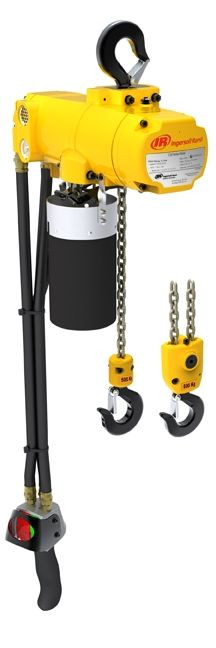

Ingersoll Rand CL500K-2C10-C10U-E CLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 10 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand CL500K-2C10-C10U-E CLK Series Air Chain Hoist | 1/2 Ton Capacity | 10 ft Lift | 10 Drop | Steel Snap Hook | Pendent Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
CL500K-2C10-C10U-E
Weight:
47.5000 LBS
Condition:
New
Description


Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand CL500K-2C10-C10U-E Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) capacity with a 10 ft lift and 10 ft pendent drop for efficient load handling. Part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor engineered for continuous 100% duty cycle operation, delivering reliable lifting performance throughout demanding industrial shifts. The responsive 2-button pendent control enables smooth and accurate load positioning, while the steel snap hook with safety latch provides secure load engagement.

Engineered for reliable industrial service, the CL500K-2C10-C10U-E features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain organized during operation, making this hoist suitable for production facilities, maintenance departments, fabrication shops, and industrial assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 10 ft | Pendent Drop: 10 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 2 | Load Chain Size: 5 × 15 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

  • Six-vane air motor provides continuous 100% duty cycle performance.
  • Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
  • Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
  • Upper and lower limit stops help prevent excessive chain travel during operation.
  • Steel snap hook with integrated safety latch provides dependable load attachment.
  • Fabric chain container keeps excess load chain organized during operation.
  • Two-fall load chain configuration supports the rated 1/2 ton lifting capacity.
  • Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production facilities requiring continuous-duty pneumatic lifting.
  • Maintenance departments handling machinery, motors, pumps, and replacement components.
  • Machine shops and fabrication facilities moving fixtures and fabricated parts.
  • Industrial assembly stations requiring accurate overhead load positioning.
  • General material handling applications utilizing compressed air-powered lifting equipment.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The CL500K-2C10-C10U-E is rated for lifting loads up to 1/2 ton (1,100 lb / 500 kg).
  • Q: How many chain falls does this model use?
    A: This hoist utilizes a 2-fall load chain configuration designed for its rated lifting capacity.
  • Q: Does this model include a chain container?
    A: Yes. A fabric chain container is included to help manage excess load chain during operation.
  • Q: What air supply is required?
    A: The hoist operates on clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air connection.
  • Q: Is this hoist suitable for continuous-duty operation?
    A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for demanding industrial lifting applications.



  industrial-tools-parts-breakdown.png Looking for more information about Ingersoll Rand Air Hoist?  Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
CLK Series
Capacity (tons):
1/2
Capacity (lbs):
1100
Lift (ft.):
10
Drop (ft.):
10
Control:
2 Button Pendent
Top Suspension:
Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
2
Hook Mount Headroom (in.):
12.75
Trolley Mount Headroom (in.):
15.35
Lifting Speed Rated Load (ft/min):
15
Lifting Speed Rated Load (m/min):
4.6
Lifting Speed No Load (ft/min):
26
Lifting Speed No Load (m/min):
7.9
Lowering Speed Rated Load (ft/min):
22
Lowering Speed Rated Load (m/min):
6.7
Lowering Speed No Load (ft/min):
13
Lowering Speed No Load (m/min):
4
Chain Size:
4 x 12
Warranty Information
One year warranty against manufacturers defects.
