Ingersoll Rand CL250K-2C8-C5U CLK Series Air Chain Hoist | 1/4 Ton Capacity | 8 ft Lift | 5 Drop | Steel Snap Hook | Pendent Control

Ingersoll Rand CL250K-2C8-C5U Air Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications. Featuring a 1/4 Ton (550 lb / 250 kg) capacity, 8 ft lift, and 5 ft pendent drop, this CLK Series pneumatic hoist utilizes a six-vane air motor designed for continuous 100% duty cycle operation. The responsive 2-button pendent control enables smooth, precise load positioning, while the steel snap hook with safety latch provides secure load attachment during lifting operations.

Designed for reliable industrial service, the CL250K-2C8-C5U incorporates a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain neatly organized during operation, making this hoist ideal for production facilities, maintenance departments, machine shops, and industrial assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/4 Ton (550 lb / 250 kg) | Lift: 8 ft | Pendent Drop: 5 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor delivers continuous 100% duty cycle performance.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.

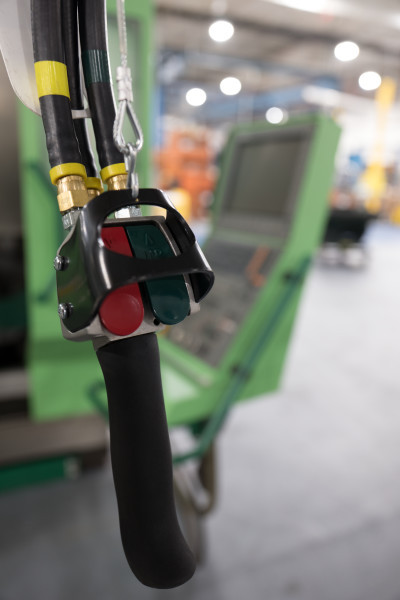

• Full-flow 2-button pendent control provides smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch ensures dependable load attachment.
• Fabric chain container helps keep excess load chain organized and protected.
• Compact hook-mounted configuration minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Manufacturing and production assembly operations.
• Maintenance departments performing equipment servicing and repairs.
• Machine shops and fabrication facilities handling tools, fixtures, and components.
• Industrial assembly stations utilizing compressed air-powered lifting equipment.
• General overhead material handling requiring accurate and controlled load positioning.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL250K-2C8-C5U has a rated lifting capacity of 1/4 ton (550 lb / 250 kg).
• Q: Does this model include a chain container?
  A: Yes. This model includes a fabric chain container that stores excess load chain and helps maintain an organized work area.
• Q: Does this hoist require electrical power?
  A: No. It operates using clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: What does the 5 ft pendent drop indicate?
  A: The pendent drop is the distance from the hoist body to the operator control, allowing convenient operation beneath the mounted hoist.
• Q: Is this hoist suitable for continuous-duty operation?
  A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous industrial lifting applications.
