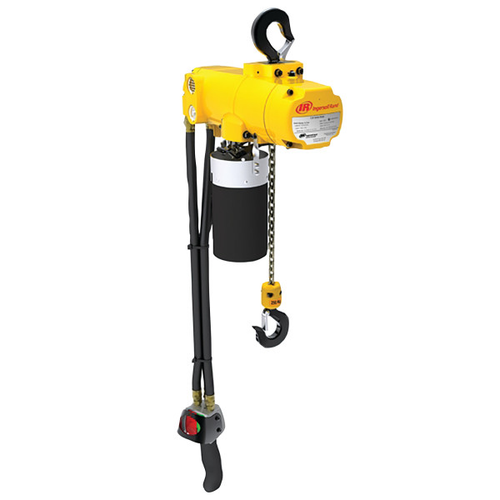

Ingersoll Rand CL250K-2C12-C8U CLK Series Air Chain Hoist | 1/4 Ton Capacity | 12 ft Lift | 8 ft Drop | Steel Snap Hook | Pendent Control

Built for lifting and positioning heavier loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL250K-2C12-C8U Air Chain Hoist combines a 1/4 Ton (550 lb / 250 kg) capacity with a 12 ft lift and 8 ft pendent drop for dependable overhead material handling. As part of the CLK Series, this pneumatic chain hoist features a six-vane air motor that delivers a 100% duty cycle, allowing continuous operation without the overheating associated with electric hoists. The responsive 2-button pendent control enables smooth and accurate load positioning, while the steel snap hook with safety latch provides secure load attachment during lifting operations.

Designed for reliable industrial service, the CL250K-2C12-C8U incorporates a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain neatly contained during operation, and quiet operation below 75 dBA makes this hoist suitable for production facilities, maintenance departments, fabrication shops, and assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/4 Ton (550 lb / 250 kg) | Lift: 12 ft | Pendent Drop: 8 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Fabric chain container helps keep excess load chain organized and protected.
• Compact hook-mounted configuration minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Lifting components and assemblies on manufacturing and production lines.
• Maintenance departments handling machinery, tooling, and replacement parts.
• Machine shops and fabrication facilities moving fixtures, dies, and workpieces.
• Industrial assembly stations requiring controlled pneumatic lifting.
• Material handling operations where accurate overhead load positioning is required.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL250K-2C12-C8U has a rated lifting capacity of 1/4 ton (550 lb / 250 kg).
• Q: What is the purpose of the fabric chain container?
  A: The fabric chain container stores excess load chain during operation, helping keep the workspace organized while reducing chain tangling.
• Q: Does this hoist require electrical power?
  A: No. This model operates on clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: What does the 8 ft pendent drop indicate?
  A: The pendent drop is the distance from the hoist body to the operator control, allowing convenient operation from beneath the mounted hoist.
• Q: Is this hoist suitable for continuous industrial use?
  A: Yes. Its six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous lifting applications.
