Ingersoll Rand CL250K-2C11-C10U CLK Series Air Chain Hoist | 1/4 Ton Capacity | 11 ft Lift | 10 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand CL250K-2C11-C10U CLK Series Air Chain Hoist | 1/4 Ton Capacity | 11 ft Lift | 10 Drop | Steel Snap Hook | Pendent Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
CL250K-2C11-C10U
Weight:
42.5000 LBS
Condition:
New
Description


Ingersoll Rand CL250K-2C11-C10U Air Chain Hoist is engineered for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications. Featuring a 1/4 Ton (550 lb / 250 kg) capacity, 11 ft lift, and 10 ft pendent drop, this CLK Series pneumatic hoist utilizes a six-vane air motor designed for continuous 100% duty cycle operation. Its responsive 2-button pendent control provides smooth, accurate load positioning, while the steel snap hook with safety latch ensures secure attachment during lifting operations.

Built for reliable industrial service, the CL250K-2C11-C10U features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain organized during operation, making this hoist well suited for production facilities, maintenance departments, fabrication shops, and industrial assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/4 Ton (550 lb / 250 kg) | Lift: 11 ft | Pendent Drop: 10 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

  • Six-vane air motor delivers continuous 100% duty cycle performance.
  • Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.

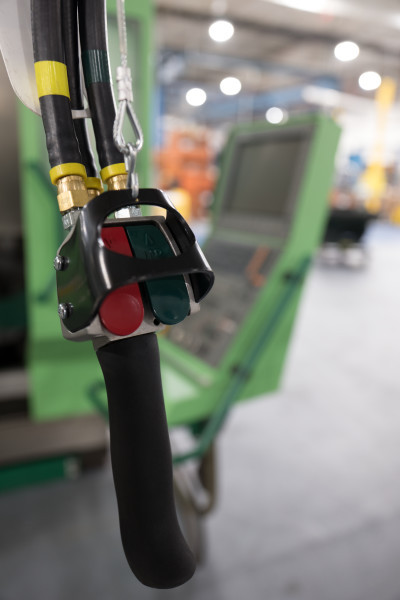

  • Full-flow 2-button pendent control provides smooth and precise lifting and lowering.
  • Upper and lower limit stops help prevent excessive chain travel during operation.
  • Steel snap hook with integrated safety latch ensures dependable load attachment.
  • Fabric chain container keeps excess load chain organized during lifting operations.
  • Compact hook-mounted configuration minimizes installation headroom requirements.
  • Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production assembly operations.
  • Maintenance departments performing machinery servicing and repairs.
  • Machine shops and fabrication facilities handling tools, fixtures, and components.
  • Industrial assembly stations utilizing compressed air-powered lifting equipment.
  • General overhead material handling requiring smooth and accurate load positioning.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The CL250K-2C11-C10U has a rated lifting capacity of 1/4 ton (550 lb / 250 kg).
  • Q: Does this model include a chain container?
    A: Yes. This model includes a fabric chain container that helps manage excess load chain during operation.
  • Q: Does this hoist require electrical power?
    A: No. It operates using clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
  • Q: What does the 10 ft pendent drop indicate?
    A: The pendent drop is the distance from the hoist body to the operator control, allowing comfortable operation beneath the mounted hoist.
  • Q: Is this hoist suitable for continuous-duty operation?
    A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous industrial lifting applications.



  industrial-tools-parts-breakdown.png Looking for more information about Ingersoll Rand Air Hoist?  Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
CLK Series
Capacity (tons):
1/4
Capacity (lbs):
550
Lift (ft.):
11
Drop (ft.):
10
Control:
2 Button Pendent
Top Suspension:
Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
11.5
Trolley Mount Headroom (in.):
14.1
Lifting Speed Rated Load (ft/min):
32
Lifting Speed Rated Load (m/min):
9.8
Lifting Speed No Load (ft/min):
56
Lifting Speed No Load (m/min):
17.1
Lowering Speed Rated Load (ft/min):
45
Lowering Speed Rated Load (m/min):
13.7
Lowering Speed No Load (ft/min):
27
Lowering Speed No Load (m/min):
8.2
Chain Size:
4 x 12
Warranty Information
One year warranty against manufacturers defects.
