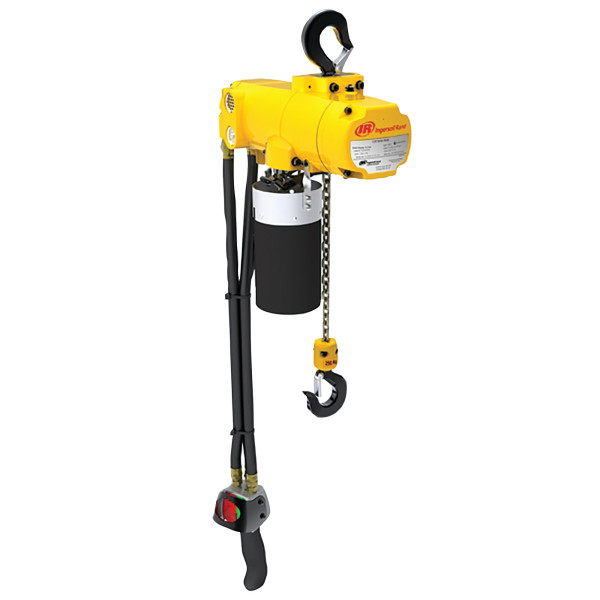

Ingersoll Rand CL125K-2DA10-C6U CLK Series Air Chain Hoist | 1/8 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Built for lifting and positioning light loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL125K-2DA10-C6U Air Chain Hoist combines a 1/8-ton (275 lb / 125 kg) capacity with a 10-ft lift and a 6-ft pendant drop for dependable overhead material handling. As part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor that delivers a 100% duty cycle, allowing continuous operation without the overheating associated with electric hoists. The responsive 2-button pendent control enables smooth and accurate load positioning, while the steel snap hook with safety latch provides secure load engagement during lifting operations.

The CL125K-2DA10-C6U features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the control is released. Upper and lower limit stops help prevent excessive chain travel, while the direct-mount suspension design offers a rigid mounting option for equipment manufacturers and fixed installations. A fabric chain container helps manage excess load chain for improved workplace organization, and quiet operation below 75 dBA makes this hoist suitable for production facilities, maintenance departments, and automated material handling systems.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/8 Ton (275 lb / 125 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Direct Mount | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Direct-mount suspension provides a secure installation for fixed overhead systems.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Fabric chain container keeps excess load chain organized during operation.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Production and manufacturing facilities requiring fixed overhead lifting systems.
• Assembly workstations where precise load positioning is essential.
• Maintenance departments performing routine equipment handling and repairs.
• Machine builders integrating pneumatic hoists into production equipment.
• Industrial material handling operations utilizing compressed air systems.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL125K-2DA10-C6U has a rated lifting capacity of 1/8 ton (275 lb / 125 kg).
• Q: What does the direct-mount suspension provide?
  A: Direct mounting allows the hoist to be securely installed onto compatible equipment or structural mounting points without using a top hook.
• Q: Does this model include a chain container?
  A: Yes. This hoist includes a fabric chain container to store excess load chain during operation.
• Q: What air supply is required?
  A: The hoist operates using clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: Is this hoist suitable for continuous industrial use?
  A: Yes. Its six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous lifting applications.
