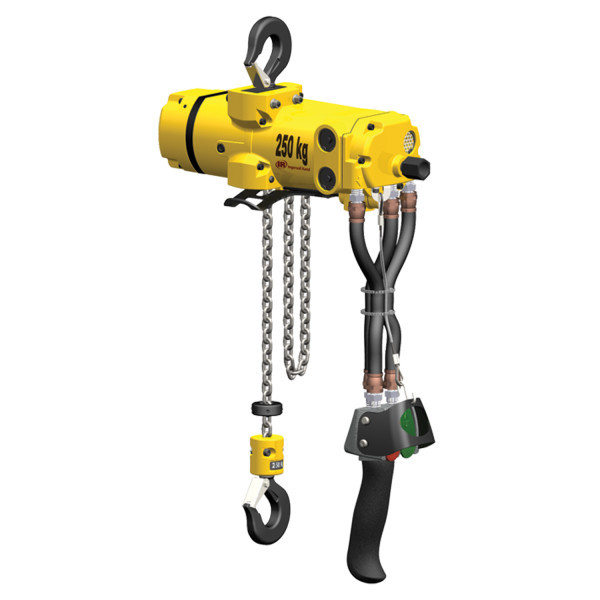

Ingersoll Rand CL125K-2C18-C6U CLK Series Air Chain Hoist | 1/8 Ton Capacity | 18 ft Lift | 6 Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand CL125K-2C18-C6U CLK Series Air Chain Hoist | 1/8 Ton Capacity | 18 ft Lift | 6 Drop | Steel Snap Hook | Pendent Control

List Price: $4,650.00
$4,101.61
(You save $548.39 )
Availability:
Available To Order From Supplier
SKU:
CL125K-2C18-C6U
Shipping:
Calculated at Checkout
Weight:
42.5000 LBS
Condition:
New
Adding to cart… The item has been added
Description

Built for lifting and positioning light loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL125K-2C18-C6U Air Chain Hoist combines a 1/8 Ton (275 lb / 125 kg) capacity with a 18 ft lift and 6 ft pendent drop for dependable overhead material handling. As part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor that delivers a 100% duty cycle, allowing continuous operation without the overheating associated with electric hoists. The responsive 2-button pendent control provides smooth and accurate load positioning, while the steel snap hook with safety latch ensures secure load attachment during lifting operations.

Designed for reliable industrial performance, the CL125K-2C18-C6U features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the control is released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration minimizes installation headroom requirements. An integrated fabric chain container keeps excess load chain organized during operation, and quiet operation below 75 dBA makes this hoist well suited for production facilities, maintenance departments, fabrication shops, and assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/8 Ton (275 lb / 125 kg) | Lift: 18 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

  • Six-vane air motor provides continuous 100% duty cycle operation.
  • Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
  • Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
  • Upper and lower limit stops help prevent excessive chain travel during operation.
  • Steel snap hook with integrated safety latch provides dependable load attachment.
  • Fabric chain container helps keep excess load chain organized and protected.
  • Compact hook-mounted configuration minimizes installation headroom requirements.
  • Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Lifting light components on production and manufacturing assembly lines.
  • Maintenance departments performing equipment servicing and repair operations.
  • Machine shops and fabrication facilities handling tools, fixtures, and finished components.
  • Industrial workstations utilizing compressed air-powered lifting equipment.
  • Material handling applications requiring controlled overhead load positioning.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The CL125K-2C18-C6U has a rated lifting capacity of 1/8 ton (275 lb / 125 kg).
  • Q: Why does this model include a fabric chain container?
    A: The fabric chain container stores excess load chain during operation, helping reduce chain tangles and maintain a cleaner work area.
  • Q: Does this hoist require electrical power?
    A: No. This model is powered by compressed air and operates on clean, dry air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
  • Q: What does the 6 ft pendent drop indicate?
    A: The pendent drop is the distance from the hoist body to the operator control, allowing convenient operation beneath the mounted hoist.
  • Q: Is this hoist suitable for continuous industrial use?
    A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous lifting applications.



  industrial-tools-parts-breakdown.png Looking for more information about Ingersoll Rand Air Hoist?  Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
CLK Series
Capacity (tons):
1/8
Capacity (lbs):
275
Lift (ft.):
18
Drop (ft.):
6
Control:
2 Button Pendent
Top Suspension:
Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
11.5
Trolley Mount Headroom (in.):
14.1
Lifting Speed Rated Load (ft/min):
43
Lifting Speed Rated Load (m/min):
13.1
Lifting Speed No Load (ft/min):
56
Lifting Speed No Load (m/min):
17.1
Lowering Speed Rated Load (ft/min):
37
Lowering Speed Rated Load (m/min):
11.3
Lowering Speed No Load (ft/min):
27
Lowering Speed No Load (m/min):
8.2
Chain Size:
4 x 12
Warranty Information
One year warranty against manufacturers defects.
