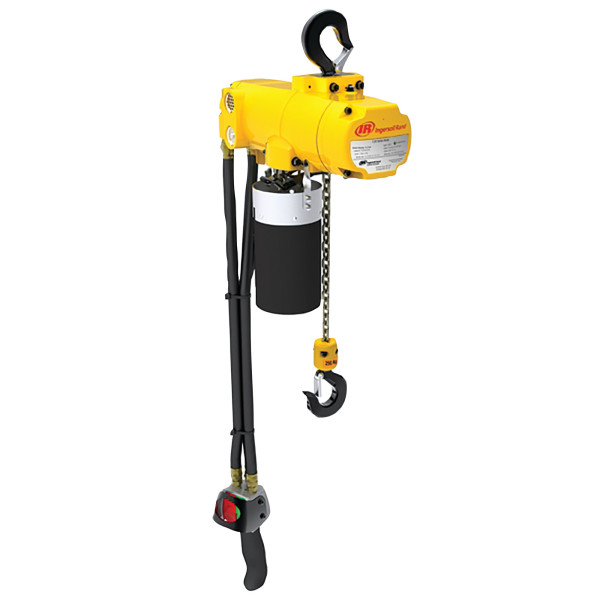

Ingersoll Rand CL125K-2C12-C8U CLK Series Air Chain Hoist | 1/8 Ton Capacity | 12 ft Lift | 8 ft Drop | Steel Snap Hook | Pendent Control

Built for lifting and positioning light loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL125K-2C12-C8U Air Chain Hoist combines a 1/8 Ton (275 lb / 125 kg) capacity with a 12 ft lift and 8 ft pendent drop for efficient overhead material handling. Part of the CLK Series, this pneumatic chain hoist features a six-vane air motor that delivers a 100% duty cycle, allowing continuous operation without the overheating associated with electric hoists. Its responsive 2-button pendent control provides smooth, accurate load positioning, while the steel snap hook with safety latch ensures secure load engagement during lifting operations.

Designed for dependable industrial performance, the CL125K-2C12-C8U incorporates a spring-engaged, air-release non-asbestos disc brake that automatically holds suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted configuration reduces required installation headroom. The included fabric chain container keeps excess chain organized during operation, and quiet operation below 75 dBA makes this hoist suitable for production facilities, maintenance departments, machine shops, and assembly workstations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/8 Ton (275 lb / 125 kg) | Lift: 12 ft | Pendent Drop: 8 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor delivers continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control provides smooth and accurate lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Fabric chain container helps keep excess load chain organized and protected.
• Compact hook-mounted design minimizes installation headroom requirements.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Lifting light components on manufacturing and production assembly lines.
• Routine maintenance and equipment servicing requiring precise overhead lifting.
• Machine shops and fabrication facilities handling tools, fixtures, and workpieces.
• Industrial workstations powered by compressed air systems.
• Material handling tasks where controlled lifting and accurate positioning are required.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL125K-2C12-C8U is rated to lift up to 1/8 ton (275 lb / 125 kg).
• Q: What is the purpose of the fabric chain container?
  A: The fabric chain container stores excess load chain during operation, helping keep the work area organized and reducing chain entanglement.
• Q: Does this hoist require electrical power?
  A: No. This model is pneumatically powered and operates on clean, dry compressed air between 70 and 100 PSI.
• Q: What does the 8 ft pendent drop indicate?
  A: The pendent drop is the distance from the hoist body to the operator control, allowing comfortable operation from below the hoist.
• Q: Is this hoist suitable for continuous industrial use?
  A: Yes. The six-vane air motor is designed for a 100% duty cycle, making it suitable for continuous lifting applications.
