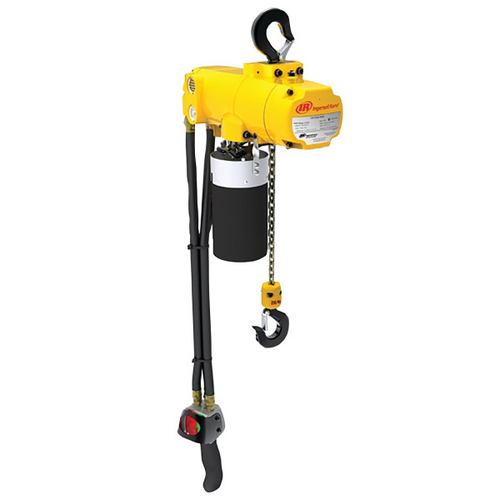

Ingersoll Rand CL125K-2C10-C6U-E CLK Series Air Chain Hoist | 1/8 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Built for lifting and positioning light loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL125K-2C10-C6U-E Air Chain Hoist combines a 1/8-ton (275 lb / 125 kg) capacity with a 10-ft lift and a 6-ft pendant drop for dependable overhead material handling. Part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor that delivers a 100% duty cycle, making it suitable for continuous operation without the overheating associated with electric hoists. The responsive 2-button pendent control allows precise load positioning, while the steel snap hook with safety latch provides secure attachment during lifting operations.

The CL125K-2C10-C6U-E is equipped with a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads when the control is released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted design minimizes installation headroom requirements. This model includes a fabric chain container for improved chain management and is supplied with marine-grade corrosion protection for enhanced resistance in harsh operating environments. Quiet operation below 75 dBA makes it suitable for production facilities, maintenance departments, marine applications, and industrial assembly operations.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/8 Ton (275 lb / 125 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Finish: Marine Grade | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• The six-vane air motor provides continuous 100% duty-cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and accurate lifting and lowering.
• Upper and lower limit stops help prevent over-travel during operation.
• Steel snap hook with integrated safety latch provides secure load attachment.
• Fabric chain container keeps excess load chain contained during operation.
• Marine-grade corrosion protection enhances durability in harsh environments.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Production and manufacturing assembly lines requiring precise overhead lifting.
• Maintenance departments performing routine equipment handling and repairs.
• Marine and coastal facilities where additional corrosion resistance is beneficial.
• Machine shops and fabrication operations lifting tools, fixtures, and components.
• Industrial workstations utilizing compressed air-powered lifting equipment.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL125K-2C10-C6U-E has a rated lifting capacity of 1/8 ton (275 lb / 125 kg).
• Q: What does the "U-E" suffix indicate?
  A: Based on the manufacturer model designation, this version includes a fabric chain container and marine-grade corrosion protection.
• Q: What air supply is required?
  A: The hoist operates using clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: Is this hoist suitable for continuous operation?
  A: Yes. Its six-vane air motor is designed for a 100% duty cycle, making it suitable for continuous industrial lifting applications.
• Q: Why is a fabric chain container beneficial?
  A: It helps collect and manage excess load chain, reducing clutter beneath the hoist and improving workplace organization.
