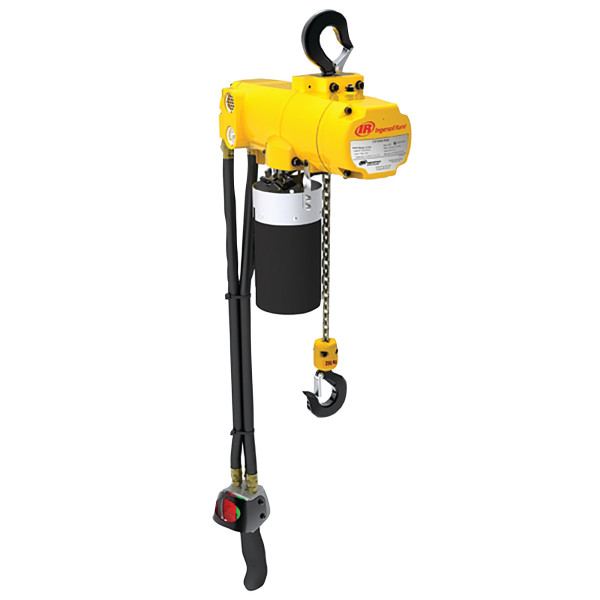

Ingersoll Rand CL125K-2C10-C6 CLK Series Air Chain Hoist | 1/8 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Built for lifting and positioning light loads in manufacturing, maintenance, assembly, and production environments, the Ingersoll Rand CL125K-2C10-C6 Air Chain Hoist combines a 1/8 Ton (275 lb / 125 kg) capacity with a 10 ft lift and 6 ft pendent drop for dependable overhead material handling. As part of the CLK Series, this pneumatic chain hoist is powered by a six-vane air motor that provides a 100% duty cycle, allowing continuous operation without the heat buildup associated with electric hoists. Its full-flow 2-button pendent control enables smooth, responsive load positioning, while the steel snap hook with safety latch provides secure attachment during lifting operations.

Engineered for reliable industrial service, the CL125K-2C10-C6 features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, and the compact hook-mounted configuration reduces headroom requirements for installation. Operating at sound levels below 75 dBA, this air chain hoist is well suited for production facilities, maintenance shops, fabrication operations, and assembly workstations requiring precise pneumatic lifting performance.

Type: Air Chain Hoist | Series: CLK Series | Capacity: 1/8 Ton (275 lb / 125 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: None | Chain Falls: 1 | Load Chain Size: 4 × 12 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and accurate lifting and lowering.
• Upper and lower limit stops help prevent over-travel during lifting operations.
• Steel snap hook with integrated safety latch provides secure load engagement.
• Compact hook-mounted design minimizes installation headroom requirements.
• Operates at sound levels below 75 dBA for quieter workplace operation.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Lifting light components on production and manufacturing assembly lines.
• Maintenance and repair operations requiring controlled overhead lifting.
• Machine shops and fabrication facilities moving tools, fixtures, and workpieces.
• Industrial workstations utilizing compressed air-powered lifting equipment.
• Material handling applications requiring accurate load positioning in confined spaces.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL125K-2C10-C6 has a rated lifting capacity of 1/8 ton (275 lb / 125 kg).
• Q: What does the 6 ft pendent drop indicate?
  A: It refers to the length of the operator control pendant, allowing convenient operation below the mounted hoist.
• Q: Does this model include a chain container?
  A: No. This model is supplied without a chain container, as indicated by the model designation.
• Q: What air supply is required?
  A: The hoist operates on clean, dry compressed air between 70 and 100 PSI through a 3/8 in. NPT air inlet.
• Q: Is this hoist suitable for continuous industrial use?
  A: Yes. Its six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous lifting applications.

  Looking for more information about Ingersoll Rand Air Hoist?  Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
