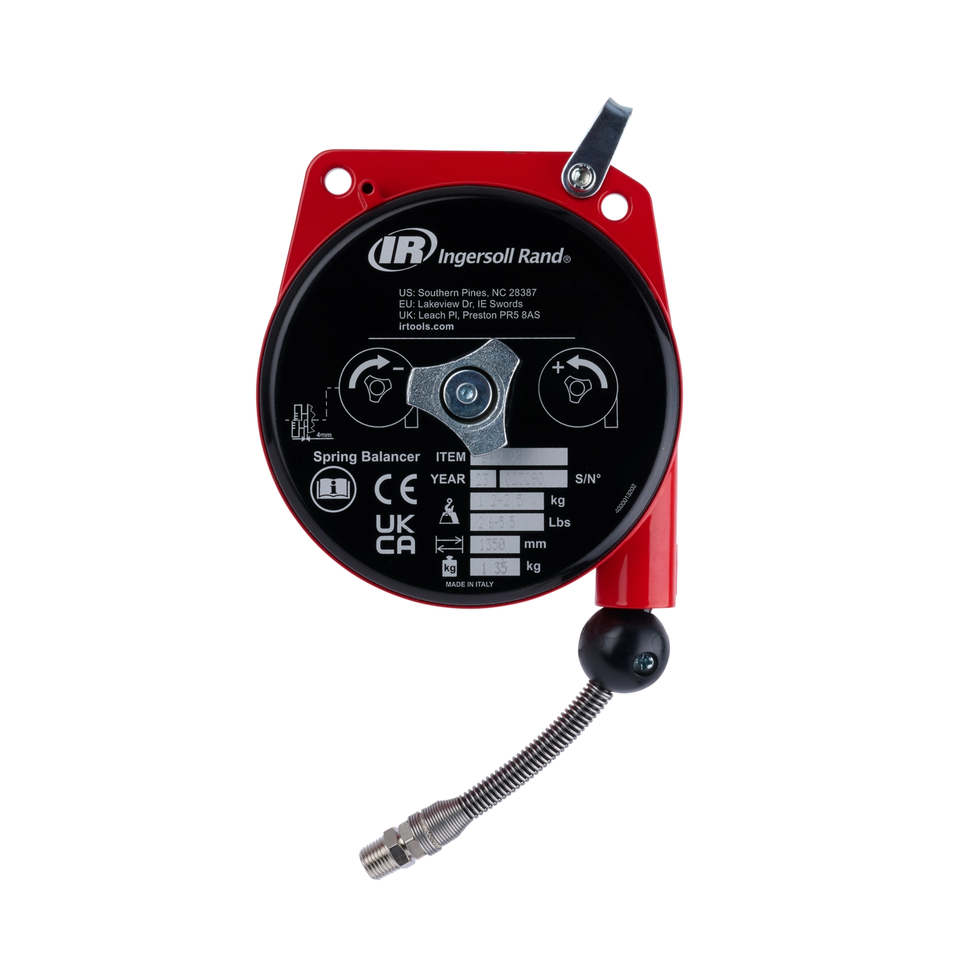

Ingersoll Rand BHR-8 Air Hose Reel Spring Balancer | 18.4 Extended CFM | 4-1/4' Lift | 0.875 - 1.75 lbs Load Capacity

Ingersoll Rand BHR-8 Air Hose Reel Spring Balancer is designed to support and balance lightweight pneumatic tools and hose assemblies, helping reduce the effort required to reposition supported equipment during assembly and service work. It provides a 0.875–1.75 lb load capacity with 4-1/4 ft of lift and 18.4 CFM extended air consumption. The adjustable capacity allows the balancer to be matched to the supported load, while the hose-reel configuration helps keep the connected air line elevated and organized.

Part of the BHR Series, the BHR-8 features a rugged aluminum housing, nylon cable, and a 1/4" NPT connection. Its adjustable stroke-limiting capability helps control travel, while the one-way shutoff design provides a safety feature for the hose reel balancer. The 4-1/4 ft lift is suited to workstation applications where a compact range of vertical tool movement is required.

Type: Air Hose Reel Spring Balancer | Series: BHR Series | Model: BHR-8 | Load Capacity: 0.875–1.75 lbs | Lift: 4-1/4 ft | Extended Air Consumption: 18.4 CFM | Hose Nipple Size: 1/4" | Housing Material: Aluminum | Cable Material: Nylon

Features:

• Adjustable capacity allows the balancer to accommodate supported loads within its specified range
• 4-1/4 ft lift provides vertical travel for supported hose and tool assemblies
• Rugged aluminum housing provides a durable enclosure for workstation use
• Nylon cable supports the hose reel mechanism during tool movement.
• Adjustable stroke-limiting capability helps control the available travel
• One-way shutoff operation provides a safety feature for the hose reel balancer
• 1/4" NPT hose nipple connection provides the specified connection size for the BHR-8

Made in Italy:

Applications:

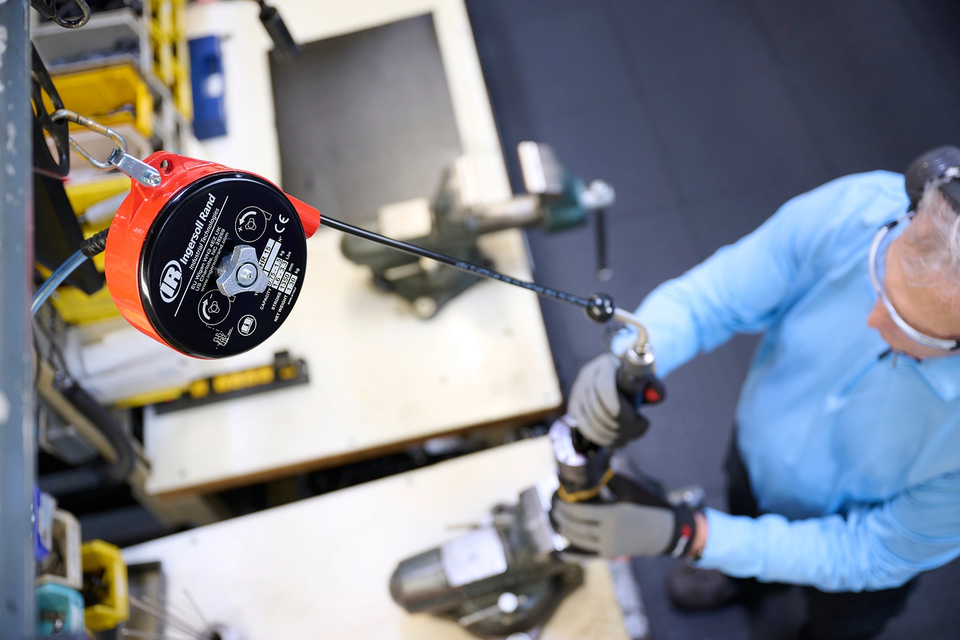

• Pneumatic assembly workstations where a lightweight air tool or hose assembly needs support.
• Vehicle service areas requiring organized overhead hose management.
• Production workstations where supported tools need to be repositioned within a 4-1/4 ft lift range.
• Maintenance and repair stations using lightweight pneumatic equipment within the specified load capacity.
• Applications where adjustable tool support can help reduce the effort involved in repositioning a connected air tool.

FAQs:

• Q: What is the load capacity of the BHR-8?
  A: The BHR-8 has an adjustable load capacity of 0.875–1.75 lbs.
• Q: How much lift does the BHR-8 provide?
  A: The BHR-8 provides 4-1/4 ft of lift.
• Q: What does 18.4 CFM extended mean?
  A: The 18.4 CFM specification identifies the air consumption listed for the balancer when the hose is extended.
• Q: What connection size does the BHR-8 use?
  A: The BHR-8 uses a 1/4" hose nipple connection.
• Q: Can the capacity be adjusted?
  A: Yes. The BHR Series features adjustable capacity, allowing the BHR-8 to be set within its specified load range.
