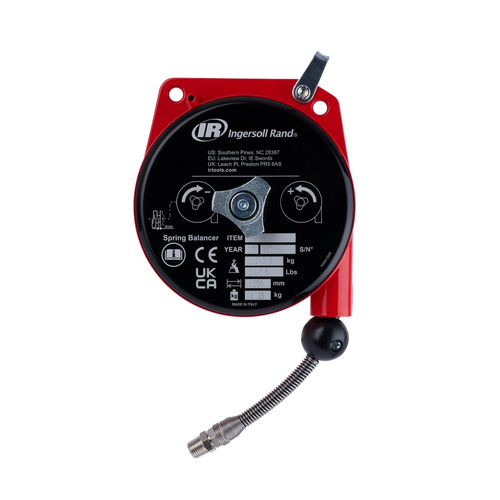

Ingersoll Rand BHR-15 Air Hose Reel Spring Balancer | 18.4 Extended CFM | 4-1/4' Lift | 1.5 - 3.33 lbs Load Capacity

Designed to support lightweight pneumatic tools and hose assemblies at service and assembly workstations, the Ingersoll Rand BHR-15 Air Hose Reel Spring Balancer provides an adjustable 1.5–3.33 lbs load capacity with 4-1/4 ft of lift. The spring-balancer design helps support the connected tool or hose while allowing controlled vertical movement, making it useful for workstations where overhead tool support and organized hose positioning are needed. The model is listed with 18.4 CFM extended air consumption.

The BHR-15 is part of the Ingersoll Rand BHR Series and is intended for applications requiring adjustable load support within its specified capacity range. Its 4-1/4 ft lift provides a defined range of vertical movement for supported equipment, while the adjustable capacity allows the balancer to be matched to the supported load.

Type: Air Hose Reel Spring Balancer | Series: BHR Series | Model: BHR-15 | Load Capacity: 1.5–3.33 lbs | Lift: 4-1/4 ft | Extended Air Consumption: 18.4 CFM

Features:

• Adjustable load capacity allows the balancer to support equipment within its specified 1.5–3.33 lb range.
• 4-1/4 ft lift provides controlled vertical travel for the supported tool or hose assembly.
• Spring-balancer design helps keep supported pneumatic equipment positioned above the workstation.
• 18.4 CFM extended air consumption is the specified air-consumption value for the model.
• BHR Series configuration is suited to workstation applications requiring supported pneumatic equipment.

Made in Italy:

Applications:

• Pneumatic assembly workstations requiring overhead support for compatible lightweight tools.
• Vehicle service areas where supported air equipment needs controlled vertical movement.
• Production workstations using pneumatic tools within the specified load-capacity range.
• Maintenance and repair stations where an overhead spring balancer can help position supported equipment.
• Work areas requiring organized support for pneumatic hose and tool assemblies.

FAQs:

• Q: What is the load capacity of the BHR-15?
  A: The BHR-15 has a specified adjustable load capacity of 1.5–3.33 lbs.
• Q: How much lift does the BHR-15 provide?
  A: The BHR-15 provides 4-1/4 ft of lift for the supported equipment.
• Q: What does 18.4 CFM extended mean?
  A: It is the specified air-consumption value listed for the balancer with the hose extended.
• Q: What type of equipment is the BHR-15 intended to support?
  A: It is intended for compatible pneumatic tools and hose assemblies whose supported weight falls within the balancer's 1.5–3.33 lb capacity range.
• Q: Can the BHR-15 support loads below or above its specified range?
  A: The listed operating range is 1.5–3.33 lbs. The supported load should remain within the manufacturer's specified capacity.

Looking for more information about the Ingersoll Rand Spring Balancer? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Spring Balancers for your assembly application, call (800) 608-5210 or email info@intlairtool.com
