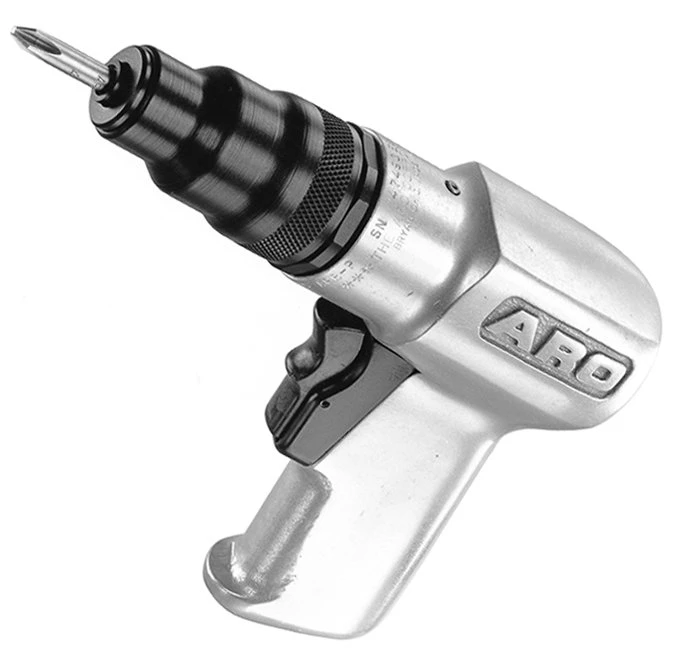

Ingersoll Rand 8683-BPR-P Pistol Grip Pneumatic Screwdriver | 750 RPM | 50 (in-lbs) Torque Range | Positive Jaw | Trigger Start

Ingersoll Rand 8683-BPR-P Pistol Grip Pneumatic Screwdriver provides a combination of fastening power and one-handed operation. Part of the 000 QRT Series, this air screwdriver delivers a 750 RPM free speed and 50 in-lbs maximum torque for driving threaded fasteners in manufacturing and assembly applications. Its positive jaw clutch provides direct mechanical engagement during fastening and is especially suitable for joints that require more driving torque than final seating torque. The Quick Reverse Touch Control (QRT) trigger lets operators switch rotation direction with a simple two-finger control, making the tool ideal for applications with frequent screw removal, installation, and realignment.

The 8683-BPR-P incorporates a pistol grip configuration with trigger-start operation for controlled fastening during repetitive assembly work. Its 1/4-inch hex drive accepts compatible screwdriver bits, while the positive jaw clutch provides the mechanical engagement needed for driving screws into suitable materials. Weighing 2.0 lbs and measuring 7.1 inches in length, the tool offers a compact handling arrangement for production workstations. The 0.8-inch spindle offset helps operators assess access near adjacent components and fixtures. With 17 CFM air consumption at free speed, a 1/4-inch NPT air inlet, and a 5/16-inch recommended minimum hose size, this pneumatic screwdriver can be incorporated into an appropriately sized compressed-air fastening system.

Type: Pistol Grip Pneumatic Screwdriver | Model: 8683-BPR-P | Series: 000 QRT Series | Clutch Type: Positive Jaw | Maximum Torque: 50 in-lbs | Free Speed: 750 RPM | Drive Size: 1/4 in. Hex | Start Type: Trigger Start | Reverse Control: Quick Reverse Touch Control (QRT) | Tool Weight: 2.0 lbs | Overall Length: 7.1 in. | Spindle Offset: 0.8 in. | Air Consumption at Free Speed: 17 CFM | Air Inlet: 1/4 in. NPT | Minimum Hose Size: 5/16 in. | Sound Level: 82 dBA

Features: 750 RPM free speed supports controlled screw driving during repetitive fastening operations. Quick Reverse Touch Control (QRT) trigger allows simple two-finger control of forward and reverse rotation. Trigger-start operation provides direct control over tool activation during screw installation and removal. Pistol grip configuration provides a familiar handling arrangement for repetitive horizontal and angled fastening tasks. 1/4-inch hex drive accommodates compatible screwdriver bits for different fastening applications. Positive jaw clutch delivers direct mechanical engagement and is recommended for applications requiring more driving torque than final seating torque.

Made in USA:

Applications:

• Industrial production assembly: Driving and removing threaded fasteners in repetitive manufacturing operations.
• Automotive component assembly: Installing screws in suitable vehicle components, brackets, and subassemblies.
• Appliance manufacturing: Fastening housings, panels, and mechanical components during production.
• General equipment assembly: Performing screw installation and removal on machinery components and manufactured products.
• Rework and adjustment stations: Supporting frequent forward and reverse operation when screws require removal, repositioning, or realignment.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 8683-BPR-P?
  A: The 8683-BPR-P provides a maximum torque of 50 in-lbs and operates at a free speed of 750 RPM. It uses a positive jaw clutch and is recommended for applications requiring greater driving torque than final seating torque.
• Q: What is Quick Reverse Touch Control (QRT)?
  A: QRT is Ingersoll Rand's trigger control system that allows operators to change the screwdriver's rotation direction using a two-finger control. It is useful for assembly operations that require frequent reversing or fastener realignment.

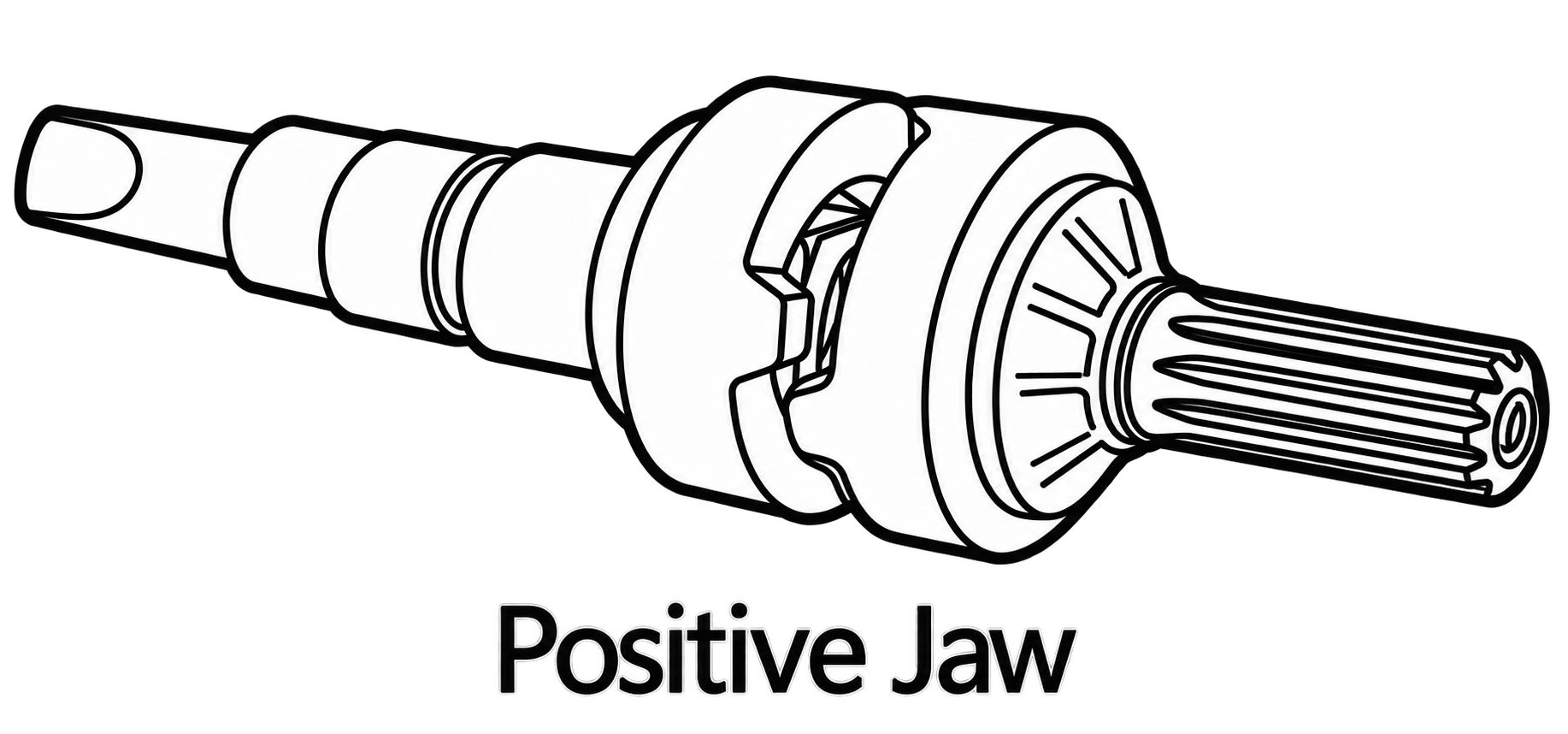

• Q: How does a positive jaw clutch differ from a shut-off clutch?
  A: A positive jaw clutch provides mechanical drive engagement during fastening and is suitable for applications requiring greater driving torque than final seating torque. Unlike an automatic shut-off clutch, it does not automatically stop the tool at a preset tightening torque. Applications requiring controlled final tightening torque should use an appropriate torque-control system.
• Q: What air supply does the 8683-BPR-P require?
  A: The manufacturer specifies 17 CFM air consumption at free speed, a 1/4-inch NPT air inlet, and a 5/16-inch minimum hose size. The compressed-air supply should be sized to maintain the tool's operating requirements during use.
• Q: What type of screwdriver bits can be used with this model?
  A: The 8683-BPR-P uses a 1/4-inch hex drive for compatible screwdriver bits. Select the appropriate bit profile and size for the fastener and verify its fit with the tool's drive arrangement.
