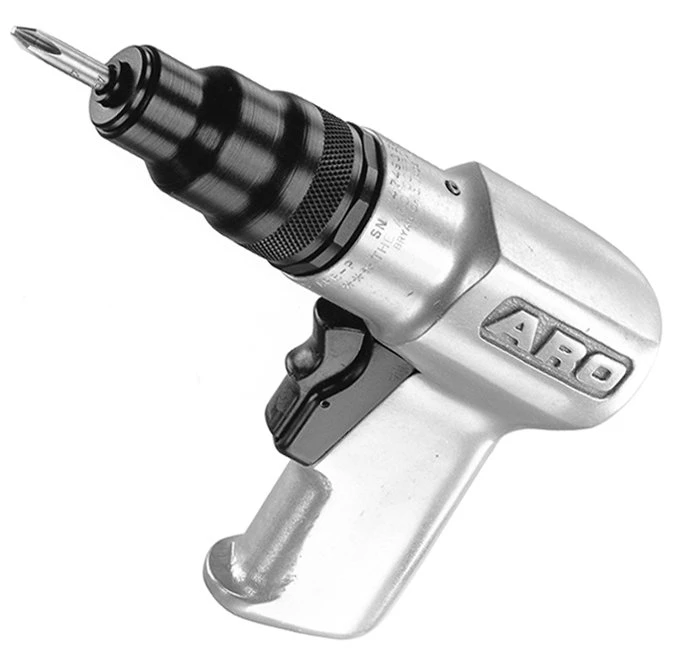

Ingersoll Rand 8506-APR-P Pistol Grip Pneumatic Screwdriver | 600 RPM | 110 (in-lbs) Torque Range | Positive Jaw | Trigger-Start

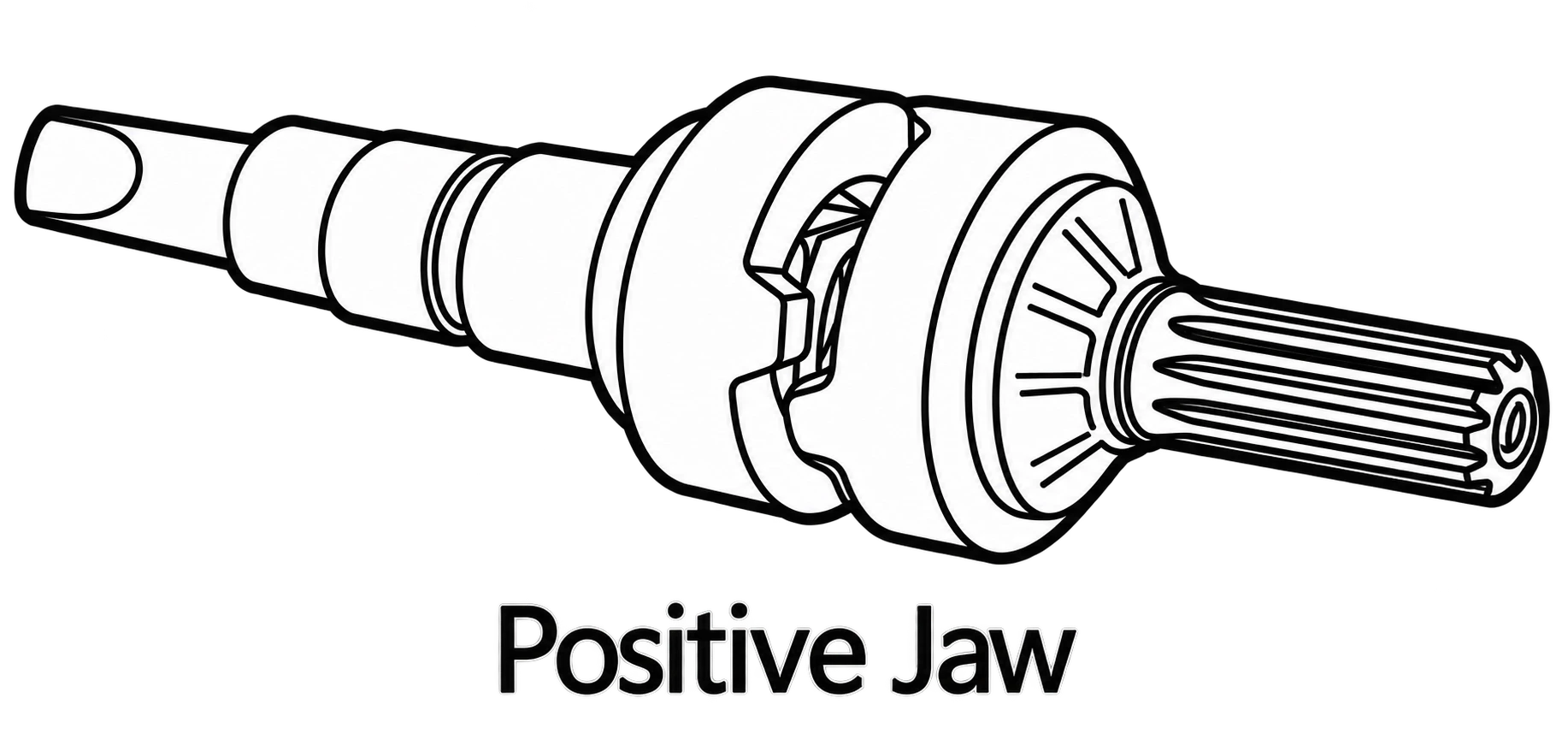

Ingersoll Rand 8506-APR-P Pistol Grip Pneumatic Screwdriver provides controlled screw-driving performance with convenient reversing capability. Part of the 0 QRT Series, this air-powered screwdriver delivers 600 RPM free speed and 110 in-lbs maximum torque, making it suitable for production fastening tasks where additional driving torque is required. Its positive jaw clutch, a mechanical engagement mechanism that transfers driving force directly to the fastener, is recommended for applications requiring more driving torque than final seating torque. The Quick Reverse Touch Control (QRT) system allows operators to change rotation direction through a two-finger trigger arrangement, supporting repeated screw installation, removal, and realignment.

The 8506-APR-P features a pistol grip configuration with trigger-start operation and a 1/4-inch hex quick-change drive for compatible screwdriver bits. Its 45–110 in-lbs torque output range provides useful driving capability for suitable fastening applications, while the lower 600 RPM speed offers a different speed-and-torque combination from faster models in the QRT Series. Measuring 8.2 inches in overall length and weighing 2.9 lbs, the screwdriver accommodates repetitive assembly work without requiring a large tool body. A 0.9-inch side-to-center distance helps operators evaluate clearance around adjacent parts and fixtures. The tool has a 1/4-inch NPT air inlet, requires a 5/16-inch minimum air hose, and consumes 24 CFM at free speed.

Type: Pistol Grip Pneumatic Screwdriver | Model: 8506-APR-P | Series: 0 QRT Series | Clutch Type: Positive Jaw | Maximum Torque: 110 in-lbs | Torque Output Range: 45–110 in-lbs | Free Speed: 600 RPM | Drive Size: 1/4 in. Hex | Drive Type: Quick Change | Actuation: Trigger Start | Reverse Control: Quick Reverse Touch Control (QRT) | Tool Weight: 2.9 lbs | Overall Length: 8.2 in. | Side-to-Center Distance: 0.9 in. | Air Consumption at Free Speed: 24 CFM | Air Inlet: 1/4 in. NPT | Minimum Hose Size: 5/16 in. | Sound Level: 82 dBA

Features: Trigger-start operation allows direct control of tool activation during forward fastening. Quick Reverse Touch Control (QRT) enables simple two-finger reversing for frequent fastener removal or realignment. 600 RPM free speed provides controlled screw-driving operation for production fastening tasks requiring higher driving torque. 110 in-lbs maximum torque supports threaded fastener installation in suitable mechanical assemblies and manufactured components. 1/4-inch hex quick-change drive accommodates compatible screwdriver bits and allows convenient bit changes between fastening tasks. Pistol grip configuration and 0.9-inch side-to-center distance support tool positioning around assembly components and workholding fixtures.

Made in USA:

Applications:

• Industrial production assembly: Installing threaded fasteners in components that require greater driving torque before final seating.
• Automotive component manufacturing: Fastening brackets, housings, and mechanical assemblies using suitable threaded fasteners.
• Machinery assembly: Driving screws into equipment components where positive jaw clutch operation is appropriate.
• Appliance manufacturing: Installing fasteners in compatible panels, frames, and mechanical subassemblies.
• Assembly rework and adjustment: Removing and reinstalling threaded fasteners during component alignment and production corrections.

FAQs:

• Q: What is the maximum torque of the Ingersoll Rand 8506-APR-P?
  A: The 8506-APR-P delivers up to 110 in-lbs of torque with a free speed of 600 RPM. Its positive jaw clutch is recommended for fastening applications where driving torque exceeds final seating torque.
• Q: Does the 8506-APR-P automatically stop when a preset torque is reached?
  A: No. This model uses a positive jaw clutch rather than an automatic shut-off clutch. It is intended for applications requiring direct mechanical drive engagement, not automatic termination at a calibrated tightening torque.
• Q: How does Quick Reverse Touch Control work on this screwdriver?
  A: The QRT system allows operators to change between forward and reverse rotation using a two-finger trigger arrangement. This is useful when fasteners must be removed or repositioned during assembly work.
• Q: What are the air supply requirements for the 8506-APR-P?
  A: The screwdriver consumes 24 CFM at free speed and features a 1/4-inch NPT air inlet with a 5/16-inch minimum hose size. The compressed-air supply should be sized to support the tool's operating requirements.
• Q: How does the 8506-APR-P compare with the 8515-APR-P?
  A: Both models use a positive jaw clutch and Quick Reverse Touch Control. The 8506-APR-P provides 110 in-lbs maximum torque at 600 RPM, while the 8515-APR-P provides 50 in-lbs at 1,500 RPM. The 8506-APR-P is the higher-torque, lower-speed option for applications requiring greater driving force.
