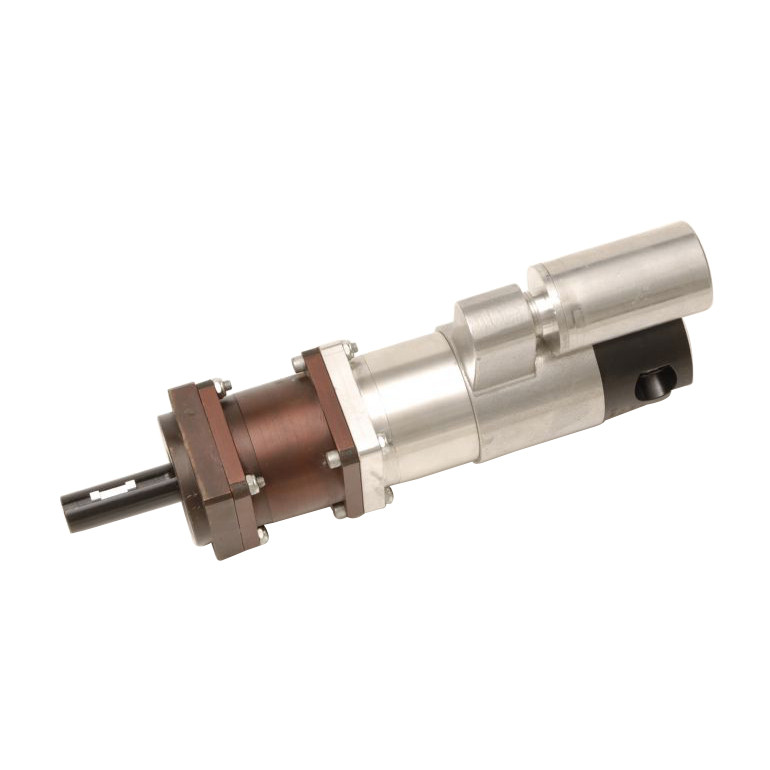

Ingersoll Rand 8207-A Reversible Air Power Motor is engineered to deliver dependable pneumatic rotary power for industrial applications requiring high output torque, controlled operating speeds, and bidirectional capability. Producing 1.9 HP with a free speed of 500 RPM, this air motor features a double gear reduction design that increases output torque while maintaining smooth rotary performance. Its reversible configuration allows clockwise and counterclockwise operation, making it well suited for OEM machinery, conveyors, indexing equipment, material handling systems, industrial processing equipment, and other compressed-air powered applications requiring flexible directional control.
The 8207-A develops a 60.00 ft-lbs stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. This combination of dependable horsepower, moderate operating speed, double gear reduction, and reversible operation makes the motor an excellent choice for demanding industrial applications requiring reliable pneumatic power and controlled rotary motion.
Type: Air Power Motor | Model: 8207-A | Rotation: Reversible | Power: 1.9 HP | Free Speed: 500 RPM | Stall Torque: 60.00 ft-lbs | Gear Reduction: Double
Features:
- Provides dependable pneumatic rotary power for demanding industrial applications.
- Reversible configuration delivers reliable clockwise and counterclockwise operation.
- 1.9 HP output supports high-performance pneumatic drive applications.
- 500 RPM free speed provides an effective balance of operating speed and output torque.
- Double gear reduction provides greater torque multiplication than a single gear reduction design.
- 60.00 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
- Compact motor design integrates easily into compatible OEM machinery and replacement installations.
- Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.
Made in USA:
Applications:
- OEM machinery requiring reversible pneumatic rotary power.
- Industrial conveyors, indexing equipment, and positioning systems.
- Material handling and processing equipment requiring bidirectional rotation.
- Packaging and production machinery.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8207-A reversible?
A: Yes. This model is designed to operate in both clockwise and counterclockwise directions for applications requiring bidirectional shaft rotation. - Q: What is the rated free speed?
A: The manufacturer specifies a free speed of 500 RPM. - Q: What does double gear reduction mean?
A: Double gear reduction uses two stages of gearing to reduce output speed while substantially increasing available output torque compared to a single-stage reduction. - Q: What does the 60.00 ft-lbs stall torque rating indicate?
A: Stall torque is the maximum torque the motor develops when the output shaft is prevented from rotating. - Q: What should be verified before installation?
A: Confirm horsepower, free speed, gear reduction, rotation direction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| Non-Reversible - 2.0 HP | |||||||||||||
| 8200-A | 7/8" Keyed | 275 | 140 | 124.00 | 168.0 | 75.00 | 101.6 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8201-A | 7/8" Keyed | 500 | 255 | 70.50 | 95.5 | 41.00 | 55.5 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8202-A | 7/8" Keyed | 900 | 445 | 40.50 | 54.9 | 24.00 | 32.5 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8204-A | 7/8" Keyed | 3,500 | 1,740 | 10.20 | 13.8 | 6.00 | 8.1 | 95.0 | 44.8 | 80 | 13.82 | 5.21 | Single |
| 8205-A | 7/8" Keyed | 14,000 | 7,000 | 2.85 | 3.9 | 1.50 | 2.0 | 95.0 | 44.8 | 80 | 13.82 | 5.21 | Single |
| Reversible - 1.9 HP | |||||||||||||
| 8206-A | 7/8" Keyed | 275 | 150 | 105.00 | 142.3 | 66.5 | 90.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8207-A | 7/8" Keyed | 500 | 250 | 60.00 | 81.3 | 39.9 | 54.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8208-A | 7/8" Keyed | 900 | 450 | 35.00 | 47.4 | 22.2 | 30.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8209-A | 7/8" Keyed | 2,000 | 1,000 | 15.0 | 20.3 | 9.97 | 13.5 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
| 8210-A | 7/8" Keyed | 3,500 | 1,800 | 8.5 | 11.5 | 5.54 | 7.5 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
| 8211-A | 7/8" Keyed | 14,000 | 7,000 | 2.2 | 3.0 | 1.43 | 1.9 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
Looking for more information about Ingersoll Rand Power Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Power Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
