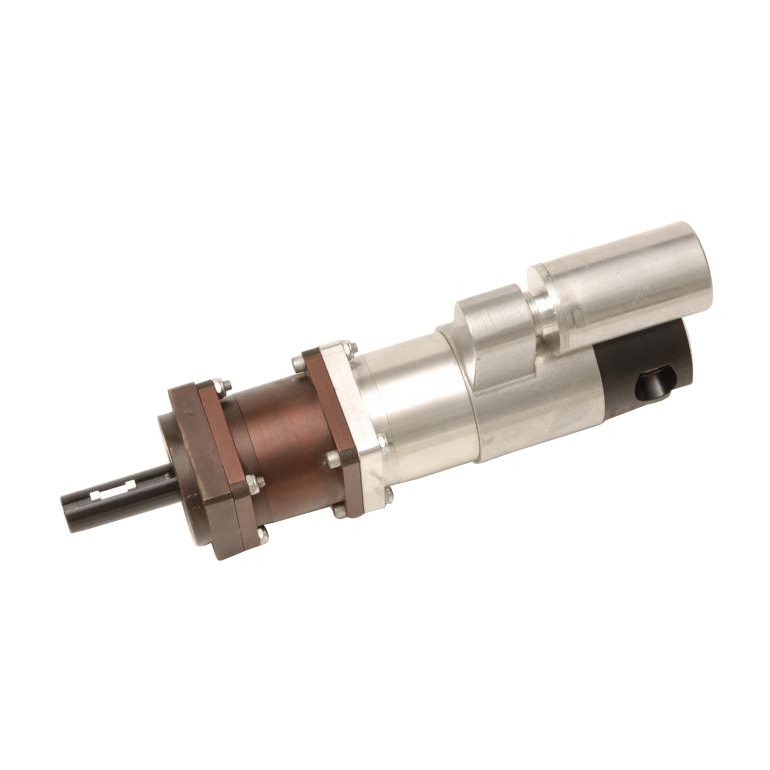

Ingersoll Rand 8204-A Non-Reversible Air Power Motor is engineered to deliver dependable pneumatic rotary power for industrial applications requiring a combination of high operating speed and moderate output torque. Producing 2.0 HP with a free speed of 3,500 RPM, this air motor incorporates a single gear reduction design that provides an effective balance between rotational speed and torque output. Its non-reversible configuration is intended for equipment operating continuously in one direction, making it suitable for OEM machinery, production equipment, conveyors, material handling systems, spindle drives, and other compressed-air powered industrial applications.
The 8204-A develops a 10.20 ft-lbs stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. This combination of high horsepower, moderate-to-high operating speed, and single gear reduction makes the motor well suited for industrial equipment requiring reliable pneumatic performance and consistent rotary output.
Type: Air Power Motor | Model: 8204-A | Rotation: Non-Reversible | Power: 2.0 HP | Free Speed: 3,500 RPM | Stall Torque: 10.20 ft-lbs | Gear Reduction: Single
Features:
- Provides dependable pneumatic rotary power for demanding industrial applications.
- Non-reversible configuration delivers reliable continuous operation in one rotational direction.
- 2.0 HP output supports high-performance pneumatic drive applications.
- 3,500 RPM free speed provides an effective balance of rotational speed and output torque.
- Single gear reduction delivers increased torque compared to a direct-drive configuration while maintaining higher operating speeds.
- 10.20 ft-lbs stall torque provides a manufacturer-published reference for evaluating maximum torque capability.
- Compact motor design integrates easily into compatible OEM machinery and replacement installations.
- Compressed-air operation eliminates the need for electrical power at the motor, making it suitable for facilities utilizing centralized pneumatic systems.
Made in USA:
Applications:
- OEM machinery requiring dependable single-direction pneumatic rotary power.
- Industrial spindle and rotary drive applications.
- Production and assembly equipment.
- Conveyor and material handling systems.
- Replacement applications where the published motor specifications match the original equipment.
FAQs:
- Q: Is the Ingersoll Rand 8204-A reversible?
A: No. This model is a non-reversible air power motor intended for continuous operation in one rotational direction. - Q: What is the rated free speed?
A: The manufacturer specifies a free speed of 3,500 RPM. - Q: What does single gear reduction mean?
A: Single gear reduction uses one stage of gearing to reduce output speed while increasing available output torque compared to a direct-drive configuration. - Q: What does the 10.20 ft-lbs stall torque rating indicate?
A: Stall torque is the maximum torque the motor develops when the output shaft is prevented from rotating. - Q: What should be verified before installation?
A: Confirm horsepower, free speed, gear reduction, rotation direction, shaft dimensions, mounting arrangement, and compressed-air requirements using the Ingersoll Rand Air Motor Catalog before installation.
| SKU | Spindle | R.P.M. | Torque | Air Consumption at Free Speed | Sound Level at Free Speed | Weight | Gear Reduction | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Free Speed | Load Speed at Max. Hp | Stall | Output at Max. Hp | ||||||||||
| lb-ft | Nm | lb-ft | Nm | SCFM | L/s | dB(A) | lbs | kg | |||||
| Non-Reversible - 2.0 HP | |||||||||||||
| 8200-A | 7/8" Keyed | 275 | 140 | 124.00 | 168.0 | 75.00 | 101.6 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8201-A | 7/8" Keyed | 500 | 255 | 70.50 | 95.5 | 41.00 | 55.5 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8202-A | 7/8" Keyed | 900 | 445 | 40.50 | 54.9 | 24.00 | 32.5 | 95.0 | 44.8 | 80 | 18.24 | 8.20 | Double |
| 8204-A | 7/8" Keyed | 3,500 | 1,740 | 10.20 | 13.8 | 6.00 | 8.1 | 95.0 | 44.8 | 80 | 13.82 | 5.21 | Single |
| 8205-A | 7/8" Keyed | 14,000 | 7,000 | 2.85 | 3.9 | 1.50 | 2.0 | 95.0 | 44.8 | 80 | 13.82 | 5.21 | Single |
| Reversible - 1.9 HP | |||||||||||||
| 8206-A | 7/8" Keyed | 275 | 150 | 105.00 | 142.3 | 66.5 | 90.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8207-A | 7/8" Keyed | 500 | 250 | 60.00 | 81.3 | 39.9 | 54.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8208-A | 7/8" Keyed | 900 | 450 | 35.00 | 47.4 | 22.2 | 30.1 | 93.5 | 44.1 | 95* | 18.24 | 8.20 | Double |
| 8209-A | 7/8" Keyed | 2,000 | 1,000 | 15.0 | 20.3 | 9.97 | 13.5 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
| 8210-A | 7/8" Keyed | 3,500 | 1,800 | 8.5 | 11.5 | 5.54 | 7.5 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
| 8211-A | 7/8" Keyed | 14,000 | 7,000 | 2.2 | 3.0 | 1.43 | 1.9 | 93.5 | 44.1 | 95* | 13.82 | 5.21 | Single |
Looking for more information about Ingersoll Rand Power Motor? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Power Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Power Motor
- Spindle Keyed (in.)
- 7/8
- RPM
- 3500
- Load Speed @ Max HP (RPM)
- 1740
- Stall Torque (ft-lbs)
- 10.20
- Stall Torque (Nm)
- 13.8
- Torque Output @ Max HP (ft-lbs)
- 6.00
- Torque Output @ Max HP (Nm)
- 8.1
- Air Consumption (SCFM)
- 95.0
