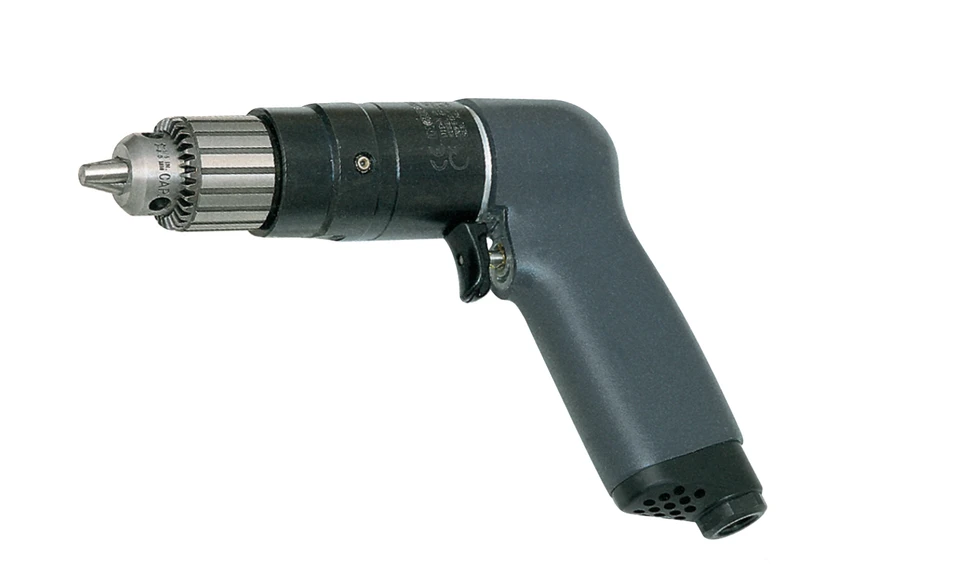

Ingersoll Rand 6ARST6 Pistol Grip Air Production Drill | 0.51 HP | 500 RPM | 222.2 (in-lbs) Max Torque | Trigger-Start

Built for production drilling, assembly work, and industrial maintenance, the Ingersoll Rand 6ARST6 Pistol Grip Air Drill delivers 222.2 in-lbs (25.1 Nm) of maximum working torque at a controlled 500 RPM free speed. This high-torque, lower-speed combination gives operators greater control when drilling applications place more resistance on the bit, while the 0.51 HP pneumatic motor supplies power for repetitive shop-floor work.

A 3/8" (10 mm) bit holder capacity accommodates commonly used drilling tooling, while 20 CFM air consumption helps buyers determine whether their compressed-air system can adequately supply the tool. Trigger-start actuation provides direct control from the pistol grip, and the non-reversible configuration keeps operation straightforward for production drilling, fabrication, and equipment maintenance tasks.

Type: Pistol Grip Air Production Drill | Series: 6 Series | Model: 6ARST6 | Actuation: Trigger Start | Reversible: No | Rated Power: 0.51 HP | Max. Working Torque: 222.2 in-lbs (25.1 Nm) | Free Speed: 500 RPM | Bit Holder Capacity: 3/8" (10 mm) | Air Consumption: 20 CFM (560 L/min) | Air Inlet: 1/4" NPT | Minimum Hose Size: 3/8" | Weight with Chuck: 3.0 lb (1.4 kg) | Length with Chuck: 8.3" (210 mm) | Side-to-Center Distance: 0.8" (21 mm) | Sound Level: 74 dB(A)

Features:

• Double-row ball bearings support precise, concentric hole production during repetitive drilling operations.
• High-quality chuck construction supports reliable operation in harsh working environments.
• Trigger-start actuation gives the operator convenient control directly from the pistol-grip handle.
• 500 RPM free speed combined with 222.2 in-lbs of maximum working torque suits applications that favor torque and drilling control over high rotational speed.
• 3/8" bit holder capacity accommodates compatible drilling tooling for production, fabrication, and maintenance work.
• Compact 0.8" side-to-center distance helps position the drill closer to adjacent surfaces and workpiece edges.
• Non-reversible configuration provides straightforward operation for forward drilling applications.

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Production and assembly operations requiring controlled, repeatable pneumatic drilling.
• Metal fabrication work where lower drilling speed and higher working torque are useful for compatible materials and hole sizes.
• Industrial maintenance and MRO tasks involving machinery, fixtures, and equipment repairs.
• Manufacturing workstations equipped with compressed-air systems for repetitive drilling operations.
• Professional repair and fabrication shops requiring a 3/8" pistol-grip pneumatic drill.

FAQs:

• Q: How much torque does the Ingersoll Rand 6ARST6 provide?
  A: The 6ARST6 is rated for 222.2 in-lbs (25.1 Nm) of maximum working torque. Combined with its 500 RPM speed, this makes it the higher-torque, lower-speed option compared with faster models in the 6 Series pistol-grip range.
• Q: What size drill bits can the 6ARST6 accept?
  A: The specified bit holder capacity is 3/8" (10 mm). Tooling should be selected according to the chuck capacity, workpiece material, and drilling requirements.
• Q: How much compressed air does the 6ARST6 require?
  A: Ingersoll Rand specifies air consumption of 20 CFM (560 L/min) and a 1/4" NPT air inlet. The IntlAirTool specification also lists a 3/8" minimum hose size, so the air system should be sized to maintain adequate flow to the drill.
• Q: Is the Ingersoll Rand 6ARST6 reversible?
  A: No. The manufacturer lists the 6ARST6 as a non-reversible, trigger-start pneumatic drill.
• Q: What is the difference between the 6ARST6 and faster 6 Series drills?
  A: The 6ARST6 operates at 500 RPM and emphasizes higher working torque rather than high rotational speed. Other 6 Series models are available at higher speeds with correspondingly different torque ratings, allowing buyers to select a drill around the requirements of the application.

Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog

For help choosing the proper Ingersoll Rand Drills for your assembly application, please email info@intlairtool.com or call (800) 608-5210
