Ingersoll Rand 5RALST6 Pneumatic Pistol Grip Air Drill | 0.40 HP | 2,000 RPM | 3/8" Bit Holder Capacity | Trigger-Start

Built for production drilling, assembly work, and industrial maintenance where forward and reverse operation is useful, the Ingersoll Rand 5RALST6 Reversible Pistol Grip Air Drill delivers 35.4 in-lbs (4.0 Nm) of maximum working torque at a 2,000 RPM free speed. This combination provides useful drilling speed for repetitive hole-making while retaining controlled torque for compatible fabrication, repair, and assembly tasks.

The 3/8" (10 mm) bit holder capacity accommodates commonly used drilling tooling, while 17 CFM (480 L/min) air consumption helps buyers match the drill to the available compressed-air supply. Its reversible trigger-start configuration adds flexibility for applications requiring a change in rotation direction, and the compact 2.2 lb tool is well suited to repeated handheld use at production and maintenance workstations.

Type: Reversible Pistol Grip Air Drill | Series: 5 Series | Model: 5RALST6 | Actuation: Trigger Start | Operation: Reversible | Max. Working Torque: 35.4 in-lbs (4.0 Nm) | Free Speed: 2,000 RPM | Bit Holder Capacity: 3/8" (10 mm) | Air Consumption: 17 CFM (480 L/min) | Weight with Chuck: 2.2 lb (1.0 kg) | Length with Chuck: 6.2" (157 mm) | Side-to-Center Distance: 0.8" (21 mm)

Features:

• Reversible operation allows the operator to change rotation direction for greater flexibility during drilling and compatible assembly tasks.
• 2,000 RPM free speed provides useful rotational speed for repetitive production drilling.
• 35.4 in-lbs (4.0 Nm) maximum working torque provides controlled turning force for compatible drilling operations.
• 3/8" (10 mm) bit holder capacity accepts commonly used compatible drilling tooling.
• Trigger-start configuration places tool actuation conveniently at the pistol-grip handle.
• Compact 6.2" (157 mm) length with chuck helps with maneuverability around fixtures, components, and workpieces.
• 2.2 lb (1.0 kg) weight with chuck keeps overall tool mass manageable during repetitive handheld work.
• 0.8" (21 mm) side-to-center distance allows drilling relatively close to adjacent surfaces and workpiece edges.

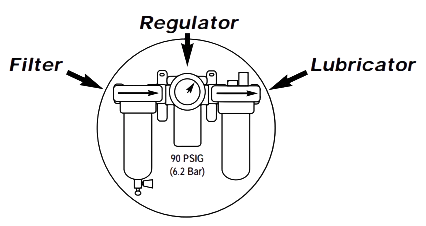

Tech Tip: To increase tool performance, extend tool life, and lessen repair costs, use it with a Filter-Regulator-Lubricator (FRL)

Made in USA:

Applications:

• Production and assembly stations performing repetitive drilling with 3/8" capacity tooling.
• Metal fabrication operations requiring a compact pneumatic drill with forward and reverse capability.
• Industrial maintenance and MRO work involving machinery, fixtures, and equipment components.
• Manufacturing workstations where a 2,000 RPM pneumatic drill matches the required drilling process.
• Professional repair and fabrication shops equipped with a compressed-air system capable of supporting the specified airflow.

FAQs:

• Q: Is the Ingersoll Rand 5RALST6 reversible?
  A: Yes. The 5RALST6 is listed as a reversible trigger-start pistol-grip air drill, allowing the operator to change the direction of rotation when the application requires it.
• Q: What is the maximum working torque of the 5RALST6?
  A: The manufacturer specification table lists maximum working torque at 35.4 in-lbs (4.0 Nm). The drill operates at 2,000 RPM free speed, providing a useful balance of speed and controlled torque.
• Q: What size tooling does the 5RALST6 accept?
  A: The maximum bit holder capacity is 3/8" (10 mm). Select tooling that fits the holder correctly and is appropriate for the material and drilling operation.
• Q: How much compressed air does the 5RALST6 use?
  A: Air consumption is specified at 17 CFM (480 L/min). The air supply should be capable of maintaining sufficient airflow at the tool during operation.
• Q: Is the 5RALST6 compact enough for work around fixtures?
  A: The drill measures 6.2" (157 mm) long with the chuck and has a 0.8" (21 mm) side-to-center distance. These dimensions can help when positioning the tool around fixtures or close to adjacent surfaces.

Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
