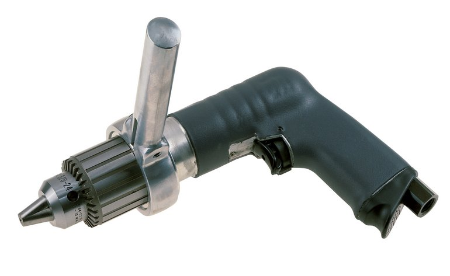

Ingersoll Rand 5RANST8 Pneumatic Industrial Drill | 0.40 HP | 900 RPM | 1/4" Bit Holder Capacity | Trigger-Start

Built for production drilling, fabrication, assembly, and industrial maintenance, the Ingersoll Rand 5RANST8 Reversible Pistol Grip Air Drill delivers 70.8 in-lbs (8.0 Nm) of maximum working torque at a controlled 900 RPM free speed. This lower-speed, higher-torque combination supports drilling operations where turning force and control are important, while reversible operation adds flexibility when the job requires a change in rotation direction.

The 1/2" (13 mm) bit holder capacity accommodates larger compatible drilling tooling than the 3/8" model in the same reversible group. Air consumption is rated at 17 CFM (480 L/min), helping buyers plan the compressed-air supply required at production stations and maintenance work areas. The trigger-start pistol grip provides direct handheld control for repetitive professional drilling tasks.

Type: Reversible Pistol Grip Air Drill | Series: 5 Series | Model: 5RANST8 | Actuation: Trigger Start | Operation: Reversible | Max. Working Torque: 70.8 in-lbs (8.0 Nm) | Free Speed: 900 RPM | Bit Holder Capacity: 1/2" (13 mm) | Air Consumption: 17 CFM (480 L/min) | Weight with Chuck: 3.0 lb (1.4 kg) | Length with Chuck: 8.3" (210 mm) | Side-to-Center Distance: 0.8" (21 mm)

Features:

• Reversible operation provides forward and reverse rotation for added flexibility during compatible drilling and assembly work.
• 900 RPM free speed provides controlled rotation for applications that favor torque over higher spindle speed.
• 70.8 in-lbs (8.0 Nm) maximum working torque supplies useful turning force as drilling resistance increases.
• 1/2" (13 mm) bit holder capacity accommodates compatible larger-diameter drilling tooling.
• Trigger-start actuation places tool control directly at the pistol-grip handle.
• 8.3" (210 mm) length with chuck provides a practical handheld configuration for production and maintenance work.
• 3.0 lb (1.4 kg) weight with chuck provides buyers with a clear reference when selecting a tool for repetitive operations.
• 0.8" (21 mm) side-to-center distance helps position the drill relatively close to workpiece edges and adjacent surfaces.

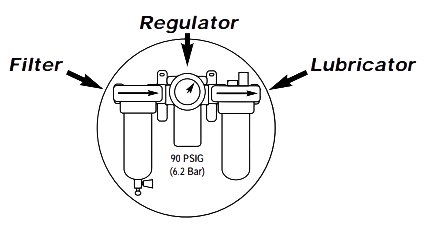

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Production and assembly drilling where a 1/2" bit holder and controlled spindle speed match the process requirements.
• Metal fabrication operations requiring higher torque with compatible drilling tooling.
• Industrial maintenance and MRO work on machinery, equipment components, and fixtures.
• Manufacturing workstations using compressed-air tools for repetitive hole-making operations.
• Professional repair and fabrication shops where reversible operation provides additional drilling flexibility.

FAQs:

• Q: What size bit holder does the Ingersoll Rand 5RANST8 have?
  A: The 5RANST8 has a maximum bit holder capacity of 1/2" (13 mm). This provides capacity for compatible larger tooling compared with the 3/8" 5RANST6 model shown in the same manufacturer table.
• Q: How much torque does the 5RANST8 provide?
  A: Maximum working torque is rated at 70.8 in-lbs (8.0 Nm). The drill combines this output with a 900 RPM free speed for applications where controlled speed and useful turning force are required.
• Q: Is the Ingersoll Rand 5RANST8 reversible?
  A: Yes. The 5RANST8 is listed in the reversible trigger-start group, allowing the direction of rotation to be changed when required by the application.
• Q: How much compressed air does the 5RANST8 require?
  A: The supplied manufacturer table specifies air consumption of 17 CFM (480 L/min). The compressed-air system should be sized to maintain adequate airflow at the tool during operation.
• Q: What is the difference between the 5RANST8 and 5RANST6?
  A: Both models are rated at 900 RPM and 70.8 in-lbs (8.0 Nm) of maximum working torque. The key difference shown in the table is bit holder capacity: the 5RANST8 is rated for 1/2" (13 mm), while the 5RANST6 is rated for 3/8" (10 mm).

Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Drills for your assembly application, call (800) 608-5210 or email info@intlairtool.com
