Ingersoll Rand 5ANST6 Pneumatic Industrial Drill | 0.40 HP | 1,000 RPM | 3/8" Bit Holder Capacity | Trigger-Start

Designed for production drilling, fabrication, and industrial maintenance, the Ingersoll Rand 5ANST6 Pistol Grip Air Drill combines 79.7 in-lbs (9.0 Nm) of maximum working torque with a controlled 1,000 RPM free speed. This lower-speed configuration provides useful turning force for drilling operations where control and torque are prioritized over high rotational speed.

The 3/8" (10 mm) bit holder capacity supports compatible drilling tooling, while 17 CFM (480 L/min) air consumption helps buyers match the tool to the available compressed-air supply. With an 8.1" (207 mm) length and 2.8 lb (1.3 kg) weight, the trigger-start pistol-grip configuration is suited to repetitive drilling at production benches, fabrication stations, and maintenance work areas.

Type: Pistol Grip Air Drill | Series: 5 Series | Model: 5ANST6 | Actuation: Trigger Start | Configuration: Non-Reversible | Max. Working Torque: 79.7 in-lbs (9.0 Nm) | Free Speed: 1,000 RPM | Bit Holder Capacity: 3/8" (10 mm) | Air Consumption: 17 CFM (480 L/min) | Weight with Chuck: 2.8 lb (1.3 kg) | Length with Chuck: 8.1" (207 mm) | Side-to-Center Distance: 0.8" (21 mm)

Features:

• 1,000 RPM free speed provides controlled rotation for drilling operations where torque is more important than high spindle speed.
• 79.7 in-lbs (9.0 Nm) maximum working torque supplies useful turning force as drilling resistance increases.
• 3/8" (10 mm) bit holder capacity accommodates compatible drilling tooling for production and maintenance work.
• Trigger-start actuation places convenient operating control directly at the pistol-grip handle.
• Non-reversible configuration provides straightforward forward drilling operation.
• 8.1" (207 mm) length with chuck provides a practical handheld profile for production and fabrication tasks.
• 2.8 lb (1.3 kg) weight with chuck provides a clear consideration when selecting a drill for repetitive handheld use.
• 0.8" (21 mm) side-to-center distance helps position the drill near workpiece edges and adjacent surfaces.

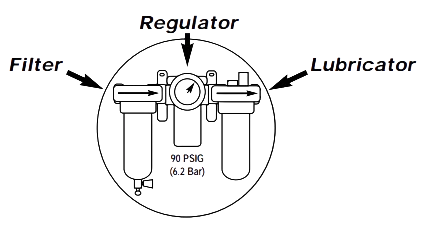

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)

Made in USA:

Applications:

• Production drilling where controlled speed and increased working torque are required.
• Metal fabrication using compatible 3/8" drilling tooling.
• Assembly operations involving repetitive pneumatic drilling.
• Industrial maintenance and MRO work on machinery, fixtures, and equipment components.
• Professional repair and fabrication workstations supplied by an appropriately sized compressed-air system.

FAQs:

• Q: How much torque does the Ingersoll Rand 5ANST6 provide?
  A: The 5ANST6 is rated at 79.7 in-lbs (9.0 Nm) of maximum working torque. Its 1,000 RPM free speed provides a lower-speed, higher-torque configuration for compatible drilling applications.
• Q: What is the bit holder capacity of the 5ANST6?
  A: The maximum bit holder capacity is 3/8" (10 mm). Tooling should fit the holder correctly and be appropriate for the workpiece material and drilling requirements.
• Q: How much compressed air does the 5ANST6 consume?
  A: The manufacturer specification table lists air consumption at 17 CFM (480 L/min). The facility air system should be capable of maintaining adequate airflow to the tool during operation.
• Q: Is the Ingersoll Rand 5ANST6 reversible?
  A: No. The 5ANST6 is part of Ingersoll Rand's non-reversible 5 Series pistol-grip drill range and is configured for forward drilling operation.
• Q: What are the dimensions and weight of the 5ANST6?
  A: The drill measures 8.1" (207 mm) long with the chuck, weighs 2.8 lb (1.3 kg), and has a 0.8" (21 mm) side-to-center distance.

Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Pneumatic Drills for your assembly application, call (800) 608-5210 or email info@intlairtool.com
