Built for repetitive production drilling, assembly work, and industrial maintenance, the Ingersoll Rand 5AKST4 Pistol Grip Air Drill combines a 3,000 RPM free speed with 30.1 in-lbs (3.4 Nm) of maximum working torque. This speed-to-torque balance supports controlled small-hole drilling while maintaining productive cycle speeds for manufacturing, fabrication, and repair operations.
The 1/4" (6 mm) bit holder capacity accepts compatible drilling tooling, while 17 CFM (480 L/min) air consumption helps buyers match the drill to their compressed-air supply. With a compact 6.8" (173 mm) length and 2.0 lb (0.9 kg) weight, the 5AKST4 provides a manageable pistol-grip configuration for repeated handheld work around production fixtures and equipment.
Type: Pistol Grip Air Drill | Series: 5 Series | Model: 5AKST4 | Actuation: Trigger Start | Configuration: Non-Reversible | Max. Working Torque: 30.1 in-lbs (3.4 Nm) | Free Speed: 3,000 RPM | Bit Holder Capacity: 1/4" (6 mm) | Air Consumption: 17 CFM (480 L/min) | Weight with Chuck: 2.0 lb (0.9 kg) | Length with Chuck: 6.8" (173 mm) | Side-to-Center Distance: 0.8" (21 mm)
Features:
- 3,000 RPM free speed supports efficient drilling cycles for repetitive production and assembly work.
- 30.1 in-lbs (3.4 Nm) maximum working torque provides controlled turning force for compatible small-hole drilling.
- 1/4" (6 mm) bit holder capacity accommodates compatible drilling tooling within the specified size range.
- Trigger-start actuation places tool control conveniently at the pistol-grip handle.
- Non-reversible configuration provides straightforward forward drilling operation.
- 6.8" (173 mm) length with chuck provides a compact profile for maneuvering around fixtures and workpieces.
- 2.0 lb (0.9 kg) weight with chuck keeps tool mass manageable during repetitive handheld drilling.
- 0.8" (21 mm) side-to-center distance helps position the drill close to workpiece edges and adjacent surfaces.

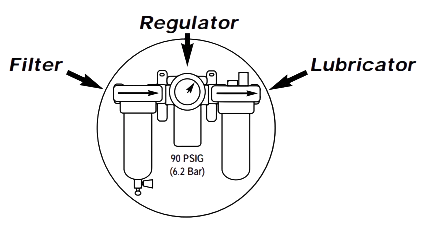

Tech Tip: To increase tool performance, extend tool life and lessen repair costs use it with a Filter-Regulator-Lubricator (FRLs)
Made in USA:
Applications:
- Production and assembly stations performing repetitive small-hole drilling.
- Metal fabrication operations using compatible 1/4" drilling tooling.
- Manufacturing processes where moderate-to-high spindle speed supports efficient hole-making cycles.
- Industrial maintenance and MRO work involving machinery, fixtures, and equipment components.
- Professional fabrication and repair shops equipped with an appropriately sized compressed-air system.
FAQs:
- Q: How much torque does the Ingersoll Rand 5AKST4 provide?
A: The 5AKST4 is rated at 30.1 in-lbs (3.4 Nm) of maximum working torque. Its 3,000 RPM free speed provides a useful balance between drilling speed and torque for compatible production applications. - Q: What size tooling does the 5AKST4 accept?
A: The maximum bit holder capacity is 1/4" (6 mm). Select tooling that fits the holder correctly and matches the workpiece material and drilling requirements. - Q: How much compressed air does the 5AKST4 consume?
A: The manufacturer specification table lists air consumption at 17 CFM (480 L/min). The facility air system should maintain sufficient airflow at the tool during operation. - Q: Is the Ingersoll Rand 5AKST4 reversible?
A: No. The 5AKST4 is part of Ingersoll Rand's non-reversible 5 Series pistol-grip drill range and is configured for forward drilling. - Q: How does the 5AKST4 compare with the faster 5AJST4?
A: The 5AKST4 runs at 3,000 RPM and provides 30.1 in-lbs of maximum working torque, while the 5AJST4 runs at 4,500 RPM with 20 in-lbs. The 5AKST4 therefore trades some rotational speed for additional working torque while retaining the same 1/4" bit holder capacity.
Looking for more information about the Ingersoll Rand Drill? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Pneumatic Drills for your assembly application, call (800) 608-5210 or email info@intlairtool.com
