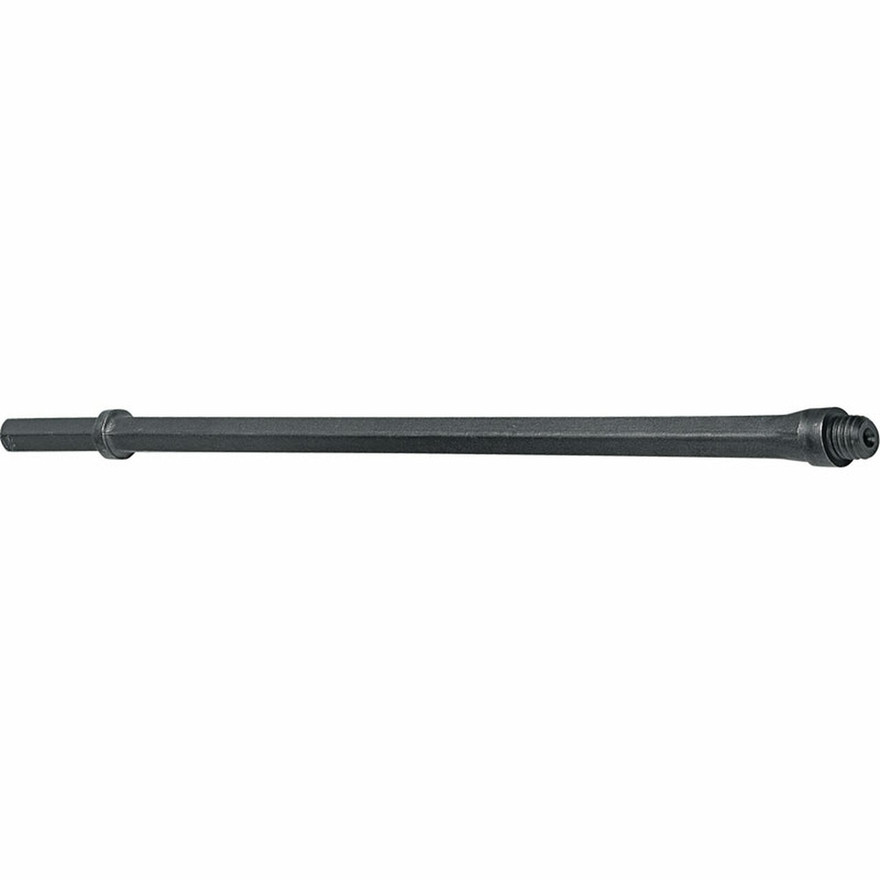

Ingersoll Rand 51233690 "H" Thread Jack Rod is designed as a replacement component for compatible Ingersoll Rand construction equipment requiring a specific jack rod configuration. Featuring a 24" under collar length and a 7/8" x 4 - 1/4" hex shank, this jack rod provides the required dimensions for proper fit and operation in supported construction applications.
The 51233690 jack rod features an "H" thread design for compatibility with designated Ingersoll Rand construction tooling systems. Its specified dimensions help maintain proper engagement and reliable equipment performance when replacing worn or damaged jack rod components.
Type: Jack Rod | Model: 51233690 | SKU: 51233690 | Thread: "H" Thread | Under Collar Length: 24" | Hex Shank: 7/8" x 4 - 1/4"
Features:
- "H" thread configuration provides compatibility with specified Ingersoll Rand construction equipment applications.
- 24" under collar length matches the required replacement dimensions.
- 7/8" x 4 - 1/4" hex shank provides the specified equipment interface.
- Designed as a replacement jack rod component for compatible construction tooling systems.
- Helps maintain proper equipment fit when replacing worn or damaged components.
- Manufactured to meet specified Ingersoll Rand dimensional requirements.
Applications:
- Construction equipment maintenance.
- Replacement component applications.
- Compatible Ingersoll Rand construction tooling systems.
- Equipment repair and service operations.
FAQs:
- Q: What thread type does this jack rod use?
A: This model features an "H" thread configuration. - Q: What is the under collar length of this jack rod?
A: The under collar length is 24 inches. - Q: What is the hex shank size?
A: The hex shank size is 7/8" x 4 - 1/4". - Q: What is this jack rod used for?
A: This component is designed as a replacement jack rod for compatible Ingersoll Rand construction equipment applications.
| Hex Shank Size | 7/8" x 3-1/4" | 7/8" x 4-1/4" | 1" x 4-1/4" | |||
|---|---|---|---|---|---|---|
| Length Under Collar |
Part Number |
Weight lb |
Part Number |
Weight lb |
Part Number |
Weight lb |
| "H" Thread Rod | ||||||
| 12" | 45509585 | 3 | 51242006 | 3.25 | 50713023 | 4 |
| 18" | 50283266 | 4 | 51242014 | 4.25 | 50713031 | 5 |
| 24" | 50283506 | 5 | 51233690 | 5.25 | 50354596 | 7 |
| 30" | 51305639 | 6 | 51242030 | 6.25 | 51305704 | 9 |
| 36" | 50712728 | 7 | 51234052 | 7.25 | 50713049 | 10 |
| 48" | 50283555 | 9 | 51234060 | 9.25 | 50283183 | 12 |
| 60" | 50712736 | 11 | 51242063 | 12 | 50713056 | 15 |
| 72" | 50712744 | 14 | 50712975 | 13.25 | 50283696 | 18 |
| 96" | 50712751 | 18 | 50283241 | 23 | ||
| 120" | 45509593 | 22 | 50712132 | 28 | ||
| 144" | 50712140 | 33.5 | ||||
