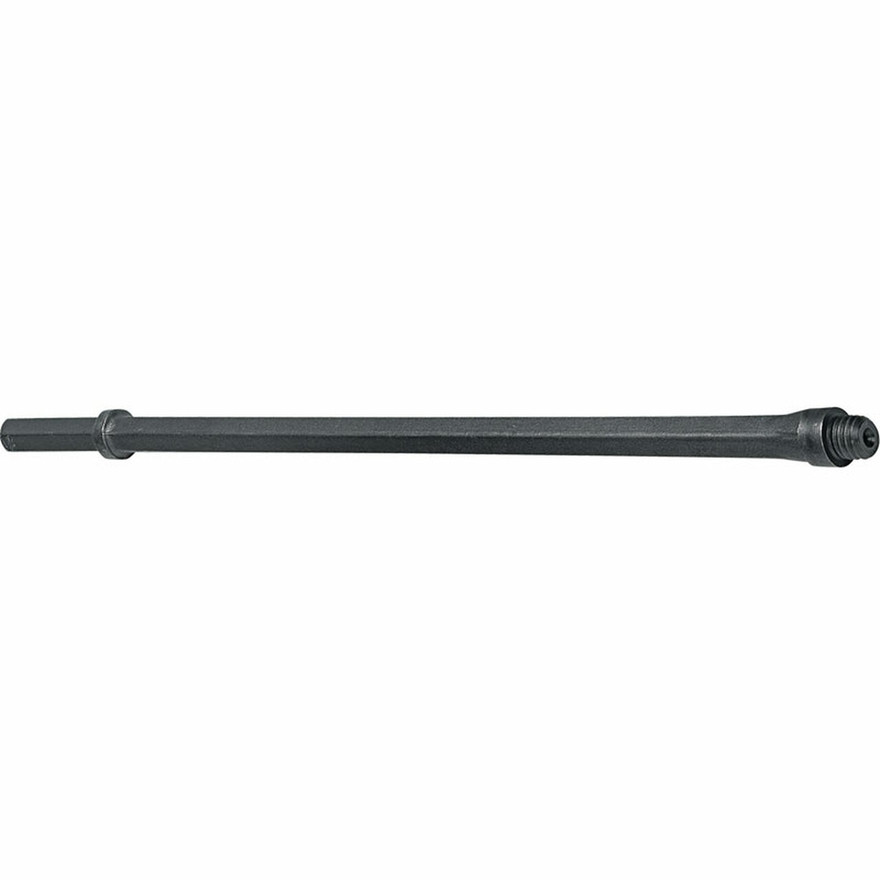

Ingersoll Rand 50283506 "H" Thread Jack Rod is designed for use with compatible construction and demolition equipment requiring a dependable replacement jack rod component. Featuring a 24" under collar length and a 7/8" x 3 - 1/4" hex shank, this jack rod provides the required dimensions for proper fit and operation in applicable Ingersoll Rand equipment assemblies.
Manufactured for construction applications, the 50283506 jack rod features an "H" thread configuration for compatibility with designated Ingersoll Rand tooling systems. The precision dimensions help ensure proper engagement and reliable performance when replacing worn or damaged components in supported applications.
Type: Jack Rod | Model: 50283506 | SKU: 50283506 | Thread: "H" Thread | Under Collar Length: 24" | Hex Shank: 7/8" x 3 - 1/4"
Features:
- "H" thread design provides compatibility with specified Ingersoll Rand construction equipment applications.
- 24" under collar length matches the required replacement dimensions.
- 7/8" x 3 - 1/4" hex shank provides the specified mounting interface.
- Designed as a replacement component for compatible construction tooling systems.
- Helps maintain proper equipment fit and performance when replacing worn jack rods.
- Manufactured to Ingersoll Rand dimensional specifications.
Applications:
- Construction equipment maintenance.
- Replacement component applications.
- Compatible Ingersoll Rand construction tooling systems.
- Equipment repair and service operations.
FAQs:
- Q: What is the thread type of this jack rod?
A: This model features an "H" thread configuration. - Q: What is the under collar length?
A: The under collar length is 24 inches. - Q: What is the hex shank size?
A: The hex shank size is 7/8" x 3 - 1/4". - Q: What is this component used for?
A: This jack rod is a replacement component designed for compatible Ingersoll Rand construction equipment applications.
| Hex Shank Size | 7/8" x 3-1/4" | 7/8" x 4-1/4" | 1" x 4-1/4" | |||
|---|---|---|---|---|---|---|
| Length Under Collar |
Part Number |
Weight lb |
Part Number |
Weight lb |
Part Number |
Weight lb |
| "H" Thread Rod | ||||||
| 12" | 45509585 | 3 | 51242006 | 3.25 | 50713023 | 4 |
| 18" | 50283266 | 4 | 51242014 | 4.25 | 50713031 | 5 |
| 24" | 50283506 | 5 | 51233690 | 5.25 | 50354596 | 7 |
| 30" | 51305639 | 6 | 51242030 | 6.25 | 51305704 | 9 |
| 36" | 50712728 | 7 | 51234052 | 7.25 | 50713049 | 10 |
| 48" | 50283555 | 9 | 51234060 | 9.25 | 50283183 | 12 |
| 60" | 50712736 | 11 | 51242063 | 12 | 50713056 | 15 |
| 72" | 50712744 | 14 | 50712975 | 13.25 | 50283696 | 18 |
| 96" | 50712751 | 18 | 50283241 | 23 | ||
| 120" | 45509593 | 22 | 50712132 | 28 | ||
| 144" | 50712140 | 33.5 | ||||
Looking for more information about Ingersoll Rand Jack Rod? Click here to view the Catalog
For help selecting the correct Ingersoll Rand Jack Rods, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Jack Rod
- Under Collar Length (in.)
- 24
- Hex Shank (in.)
- 7/8 x 3 - 1/4
- Material
- Steel
