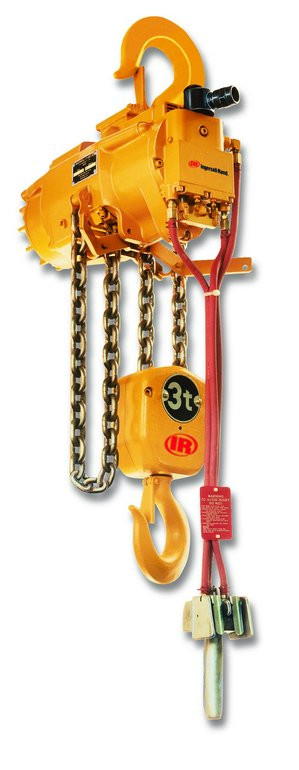

Ingersoll Rand 47817354001 HLK Series Air Chain Hoist | HL1000KR-3HDR15-R13PU | 1 Ton Capacity | 15 ft Lift | 13 ft Drop | Bronze Snap Hook | 2 Motor Pendent

Ingersoll Rand 47817354001 HLK Series Air Chain Hoist (Model HL1000KR-3HDR15-R13PU) is a high-performance pneumatic hoist engineered for demanding industrial lifting applications requiring precise load positioning and advanced pneumatic control. Featuring a 1 Ton (2,200 lb) lifting capacity, 15 ft lift, and 13 ft pendant control drop, this model is well suited for manufacturing, chemical processing, marine, power generation, and heavy industrial environments. The 2 Motor Pendent Control provides independent, responsive operation for applications requiring enhanced control during lifting and positioning.

Built on the rugged HLK Series platform, the HL1000KR is designed for continuous industrial operation with a 100% duty cycle. It incorporates a self-adjusting air-operated disc brake, enclosed planetary gearing, anti-friction bearings, and modular internal assemblies that simplify maintenance while delivering dependable long-term performance. This model is equipped with bronze snap hooks, making it suitable for applications where corrosion-resistant and non-sparking hook components are preferred. The manufacturer identifies this model using the HDR, R, and PU configuration codes.

Type: Air Chain Hoist | Series: HLK Series | Model: HL1000KR-3HDR15-R13PU | Capacity: 1 Ton (2,200 lbs) | Lift: 15 ft | Pendant Drop: 13 ft | Control Type: 2 Motor Pendent Control | Top Suspension: Bronze Snap Hook | Bottom Suspension: Bronze Snap Hook | Chain Falls: 1 | Hook Mount Headroom: 18.5 in. | Trolley Mount Headroom: 18.1 in. | Lifting Speed (Rated Load): 26 ft/min (7.9 m/min) | Lifting Speed (No Load): 40 ft/min (12.2 m/min) | Lowering Speed (Rated Load): 37 ft/min (11.3 m/min) | Lowering Speed (No Load): 26 ft/min (7.9 m/min) | Chain Size: 9.5 × 25.7 mm (3/8 in.)

Features:

• 100% duty cycle supports continuous industrial lifting operations.
• Two-motor pendent control provides smooth, responsive lifting and precise load positioning.
• Bronze snap hooks offer corrosion resistance and are suitable for applications requiring non-sparking hook components.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads.
• Planetary gear transmission distributes loads evenly for dependable performance and extended service life.
• Single-fall 3/8 in. alloy load chain provides efficient lifting performance for the rated capacity.
• Ball and roller bearings reduce friction and promote smooth, reliable operation.
• Modular motor, brake, and throttle assemblies simplify maintenance and minimize downtime.

Applications:

• Chemical processing facilities.
• Marine and offshore maintenance operations.
• Power generation plants.
• Heavy industrial manufacturing and fabrication.
• Material handling applications requiring corrosion-resistant hook components and advanced pneumatic control.

FAQs:

• Q: What type of control does this hoist use?
  A: This model features a two-motor pendent control for precise pneumatic lifting and load positioning.
• Q: What type of hooks are supplied?
  A: The hoist is equipped with bronze snap hooks for both the top suspension and bottom load hook.
• Q: How many chain falls does this hoist have?
  A: This model utilizes 1 chain fall.
• Q: What size load chain is used?
  A: The HL1000KR uses a 9.5 × 25.7 mm (3/8 in.) alloy load chain.

Looking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
