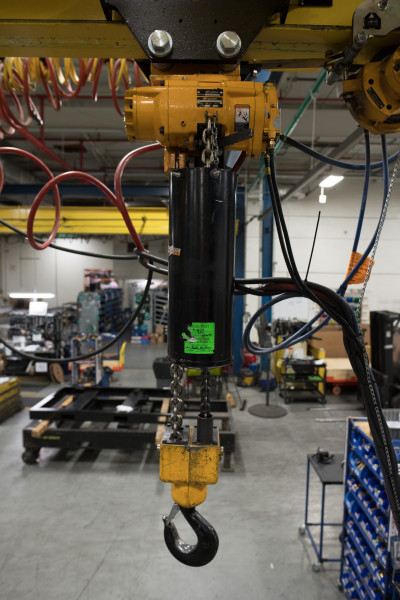

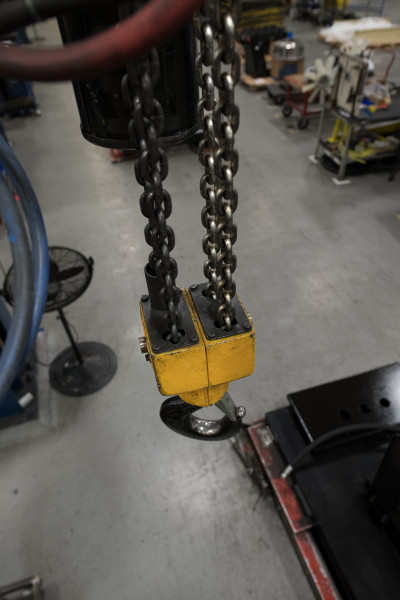

Ingersoll Rand 47687758001 HLK Series Air Chain Hoist | HLK1000K-2C20-C16 | 1 Ton Capacity | 20 ft Lift | 16 ft Drop | Steel Snap Hook | Pendent Control

Built for continuous material handling in manufacturing plants, maintenance facilities, assembly operations, and fabrication shops, the Ingersoll Rand 47687758001 HLK Series Air Chain Hoist features the HLK1000K-2C20-C16 configuration with a 2,200 lb (1,000 kg / 1 Metric Ton) lifting capacity, 20 ft lift, and 16 ft pendant drop. Powered by compressed air, this pneumatic hoist delivers dependable lifting performance with smooth load control, making it an excellent solution for continuous-duty industrial applications where reliable overhead lifting is essential.

The HLK Series is engineered for severe-duty service with a planetary gear transmission for efficient power transfer and a self-adjusting, spring-applied, air-released disc brake that securely holds suspended loads whenever air pressure is interrupted. Equipped with a steel snap hook and pendant control, this hoist provides accurate lifting and lowering for machinery, tooling, fabricated components, and production equipment while its modular construction with interchangeable components simplifies maintenance and minimizes downtime.

Type: Air Chain Hoist | Series: HLK Series | Model: HLK1000K-2C20-C16 | SKU: 47687758001 | Capacity: 2,200 lb (1,000 kg / 1 Metric Ton) | Lift: 20 ft | Pendant Drop: 16 ft | Control: Pendant Control | Bottom Hook: Steel Snap Hook | Chain Falls: 1 | Rated Lift Speed: 20.7 ft/min (6.3 m/min) | Rated Lowering Speed: 39.4 ft/min (12.0 m/min) | Hook Mount Headroom: 21.5 in (546.1 mm) | Trolley Mount Headroom: 20.2 in (513.1 mm) | Shipping Weight (Top Hook): 88 lb (39.9 kg)

Features:

• 2,200 lb (1,000 kg / 1 metric ton) lifting capacity for handling machinery, tooling, fabricated assemblies, and industrial equipment.
• 100% duty cycle supports continuous production and repetitive lifting operations.
• Planetary gear transmission provides smooth lifting performance and efficient power transfer.
• Self-adjusting, spring-applied, air-released disc brake securely holds suspended loads whenever air pressure is removed.
• Pendant control allows accurate load positioning during lifting and lowering operations.
• Steel snap hook provides a durable and secure connection for overhead lifting applications.
• Modular construction with interchangeable components simplifies maintenance and reduces service downtime.
• Designed to HMI Duty Classification A5 (Severe Duty) and FEM 9.511 Duty Classification 2m.

Applications:

• Overhead lifting of machinery and production equipment in manufacturing facilities.
• Material handling in fabrication, machining, and assembly operations.
• Maintenance and repair of industrial equipment and plant machinery.
• Positioning dies, molds, fixtures, and fabricated components during production.
• General industrial material handling utilizing compressed-air lifting systems.

FAQs:

• Q: What is the lifting capacity of the HLK1000K?
  A: The manufacturer rates the HLK1000K at 2,200 lb (1,000 kg / 1 metric ton).
• Q: What lift height does this configuration provide?
  A: This model is supplied with a 20 ft lift, making it suitable for facilities requiring additional vertical lifting travel.
• Q: What does the 16 ft pendant drop indicate?
  A: The pendant control extends approximately 16 feet below the hoist, allowing operators to safely control lifting and lowering from floor level when the hoist is mounted at elevated heights.
• Q: Is this hoist designed for continuous-duty applications?
  A: Yes. The HLK Series features a 100% duty cycle and is intended for continuous industrial lifting operations.
