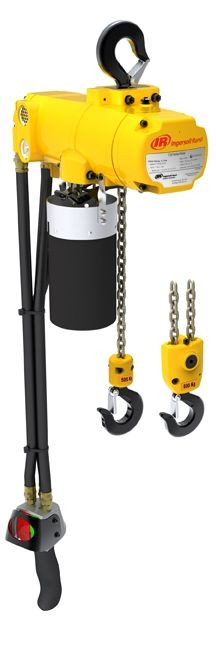

Ingersoll Rand 47645568001 CLK Series Air Chain Hoist | CL500K-2DA10-C6U | 1/2 Ton Capacity | 10 ft Lift | 6 ft Drop | Steel Snap Hook | Pendent Control

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, the Ingersoll Rand 47645568001 Air Chain Hoist, Model CL500K-2DA10-C6U, combines a 1/2 Ton (1,100 lb / 500 kg) capacity with a 10 ft lift and 6 ft pendent drop for efficient load handling. Part of the CLK Series, this pneumatic chain hoist utilizes a six-vane air motor engineered for continuous 100% duty cycle operation, delivering reliable lifting performance without the overheating associated with electric hoists. The responsive 2-button pendent control provides smooth, accurate load positioning, while the steel snap hook with safety latch ensures secure load engagement.

Engineered for reliable industrial service, the CL500K-2DA10-C6U features a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the direct-mount suspension provides a rigid mounting solution for fixed overhead installations and machinery integration. An integrated fabric chain container keeps excess load chain organized during operation, making this hoist well suited for production facilities, maintenance departments, fabrication shops, and automated assembly systems.

Type: Air Chain Hoist | Series: CLK Series | Model: CL500K-2DA10-C6U | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 10 ft | Pendent Drop: 6 ft | Control Type: 2-Button Pendent Control | Top Suspension: Direct Mount | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 2 | Load Chain Size: 5 × 15 mm | Air Inlet: 3/8 in. NPT | Operating Pressure: 70–100 PSI | Duty Cycle: 100%

Features:

• Six-vane air motor provides continuous 100% duty cycle operation.
• Spring-engaged, air-release non-asbestos disc brake securely holds suspended loads.
• Full-flow 2-button pendent control enables smooth and precise lifting and lowering.
• Upper and lower limit stops help prevent excessive chain travel during operation.
• Direct-mount suspension provides a secure mounting solution for fixed installations.
• Steel snap hook with integrated safety latch provides dependable load attachment.
• Fabric chain container keeps excess load chain organized during operation.
• Two-fall load chain configuration supports the rated 1/2 ton lifting capacity.
• Meets ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

• Production lines requiring permanently mounted pneumatic lifting equipment.
• Manufacturing facilities handling components, fixtures, and subassemblies up to 1/2 ton.
• Maintenance departments servicing machinery and production equipment.
• Machine builders integrating air-powered hoists into automated systems.
• Industrial material handling applications utilizing fixed overhead mounting.

FAQs:

• Q: What is the lifting capacity of this hoist?
  A: The CL500K-2DA10-C6U is rated to lift up to 1/2 ton (1,100 lb / 500 kg).
• Q: What does the direct-mount suspension provide?
  A: The direct-mount configuration allows the hoist to be securely fastened to compatible machinery or structural mounting points for permanent installation.
• Q: How many chain falls does this hoist use?
  A: This model utilizes a 2-fall load chain configuration designed for its rated 1/2 ton lifting capacity.
• Q: Does this model include a chain container?
  A: Yes. A fabric chain container is included to keep excess load chain organized during operation.
• Q: Is this hoist suitable for continuous industrial operation?
  A: Yes. The six-vane pneumatic motor is designed for a 100% duty cycle, making it suitable for continuous-duty industrial lifting applications.

  Looking for more information about Ingersoll Rand Air Hoist?  Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!
