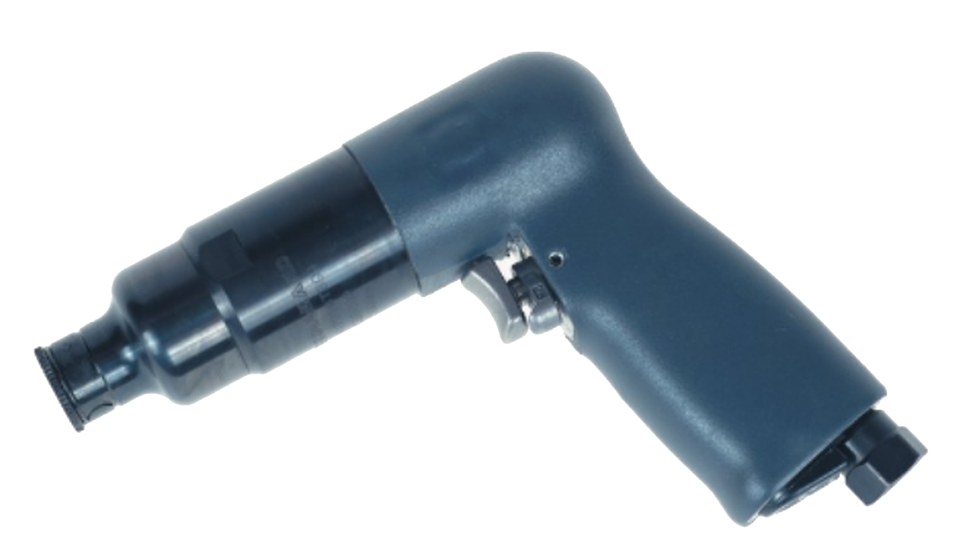

Designed for controlled fastening in production assembly environments, the Ingersoll Rand 41PD17TSQ4 Pneumatic Air Screwdriver combines a 1,700 RPM free speed with a 64.6 in-lbs torque range and stall clutch configuration. Its pneumatic drive provides consistent air-powered operation for screwdriving applications where controlled tightening and repeatable fastening are required.
The stall clutch configuration is suited to fastening applications where the tool needs to stop as the specified torque is reached. With its 1,700 RPM speed and 64.6 in-lbs torque range, the 41PD17TSQ4 can be matched to compatible production assembly operations requiring controlled pneumatic screwdriving.
Type: Pneumatic Air Screwdriver | Free Speed: 1,700 RPM | Torque Range: 64.6 in-lbs | Clutch Type: Stall Clutch
|
Features:
Made in USA: |
 |
Applications:
- Production assembly fastening applications.
- Industrial screwdriving operations requiring controlled tightening.
- Assembly lines where pneumatic fastening tools are used for repeatable cycles.
- Equipment and component assembly involving compatible screw fasteners.
- Manufacturing applications requiring the specified speed and torque characteristics.
FAQs:
- Q: What is the speed of the 41PD17TSQ4?
A: The screwdriver is specified at 1,700 RPM. - Q: What does stall clutch mean?
A: A stall clutch is a clutch configuration that stops or stalls the tool when the preset torque is reached, providing controlled tightening during fastening. - Q: What is the torque specification?
A: The 41PD17TSQ4 is specified with a 64.6 in-lbs torque range. - Q: What type of power does this screwdriver use?
A: The 41PD17TSQ4 is a pneumatic air screwdriver designed to operate using compressed air.
| SKU | TORQUE IN-LBS (NM) |
FREE SPEED RPM |
WEIGHT LBS (KG) |
OVERALL LENGTH IN (MM) |
SIDE TO CENTER IN (MM) |
DRIVE TYPE IN |
AIR CONSUMPTION CFM (L/MIN) |
|---|---|---|---|---|---|---|---|
| Trigger Start | |||||||
| 41PD25TSQ4 | 45.1 (5.1) | 2,500 | 2.1 (1.0) | 6.9" (176) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41PD17TSQ4 | 64.6 (7.3) | 1,700 | 2.2 (1.0) | 7.4" (188) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41PD10TSQ4 | 90.3 (10.2) | 1,000 | 2.2 (1.0) | 7.4" (188) | 0.8" (20) | 1/4" Hex | 20 (565) |
| 41PD8TSQ4 | 120.4 (13.6) | 800 | 2.2 (1.0) | 7.4" (188) | 0.8" (20) | 1/4" Hex | 20 (565) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the proper Ingersoll Rand Screwdrivers for your assembly application please email info@intlairtool.com or call (800) 608-5210
- Type
- Screwdriver
- Grip Style
- Pistol
- Actuation
- Trigger Start
- Torque Range (Nm)
- 7.3
- Torque Range (in-lbs)
- 64.6
- RPM
- 1700
- Length (in.)
- 7.4
- Length (mm)
- 188
- Side to Center (mm)
- 20
- Side to Center (in.)
- 0.8
- Drive Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 78
- Inlet Location
- Std
- Air Inlet
- 1/4" NPT
- Air Consumption (CFM)
- 20
- Air Consumption (l/mn)
- 565
