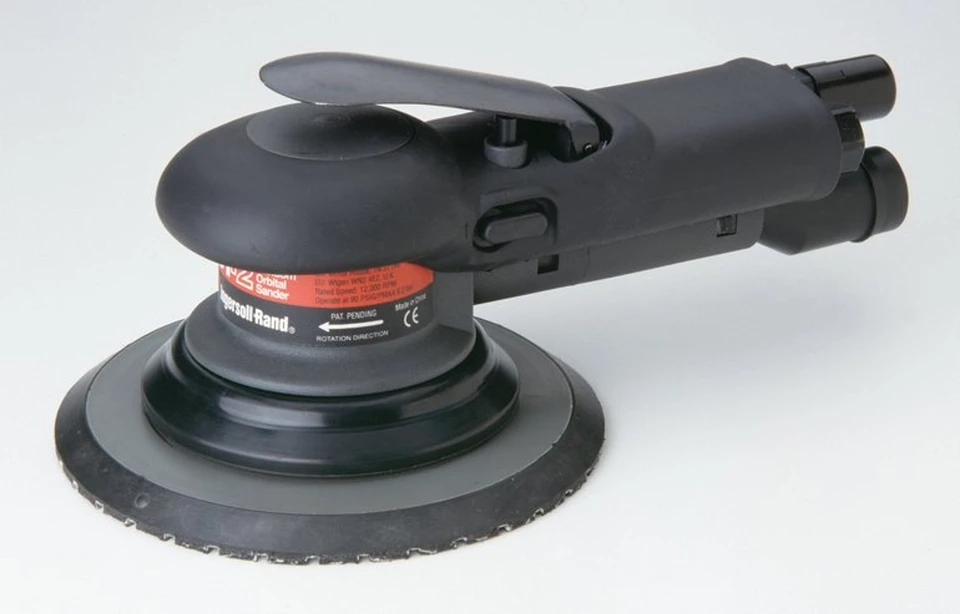

Ingersoll Rand 4151 Random Orbital Air Sander is a vacuum-ready pneumatic sander designed for smoothing and finishing applications where controlled orbital motion and high rotational speed are required. The manufacturer specifies a 12,000 RPM maximum free speed, 3/16-inch (5 mm) orbit diameter, and 6-inch (150 mm) pad diameter. Its 0.2 HP pneumatic motor and random orbital action are designed to produce a high-quality finish while the vacuum-ready configuration allows connection to central or portable vacuum systems.
The 4151 uses a vinyl-faced pad with a short shroud and rear exhaust. The manufacturer lists a 1.92 lb (0.87 kg) weight, 7.48-inch (190 mm) length, 1/4-inch NPT air inlet, and 8 CFM average air consumption. A 5/16-inch (8 mm) minimum hose size is specified, helping buyers properly size the compressed-air connection for the tool.
Type: Random Orbital Air Sander | Model: 4151 | Rated Power: 0.2 HP (0.15 kW) | Maximum Free Speed: 12,000 RPM | Orbit Diameter: 3/16 in (5 mm) | Pad Diameter: 6 in (150 mm) | Pad Face: Vinyl | Vacuum Ready: Yes | Shroud Style: Short | Exhaust: Rear | Output Thread: 5/16 in-24 | Weight: 1.92 lb (0.87 kg) | Length: 7.48 in (190 mm) | Vibration: 7.5 m/s² (uncertainty K: 1.6) | Sound Pressure/Power: 81.6 dBA | Minimum Hose Size: 5/16 in (8 mm) | Air Inlet: 1/4 NPT | Average Air Consumption: 8 CFM (226 L/min)
Features:
- Vacuum-ready design allows connection to central or portable vacuum systems for dust extraction.
- Random orbital action provides the specified 3/16-inch (5 mm) orbit for sanding and finishing applications.
- 6-inch (150 mm) pad provides the manufacturer's specified sanding surface size.
- 12,000 RPM maximum free speed provides rapid rotation for compatible sanding applications.
- 0.2 HP pneumatic motor provides the manufacturer's specified power output.
- Vinyl-faced pad is the manufacturer's specified pad configuration.
- Short shroud and rear exhaust are part of the manufacturer's specified configuration.
- Low-vibration design is specified by Ingersoll Rand for operator comfort.
- Lightweight 1.92 lb (0.87 kg) design supports handling during sanding operations.
- 1/4-inch NPT air inlet and 8 CFM average air consumption define the manufacturer's pneumatic requirements.
Made in USA:
Applications:
- Smoothing and sanding paint, fiberglass, wood, and body filler as identified in the manufacturer's product safety information.
- Automotive surface preparation and finishing applications.
- Bodywork and refinishing operations requiring a 6-inch random orbital sander.
- Surface preparation where vacuum extraction is desired and compatible vacuum equipment is available.
- Finishing applications requiring the manufacturer's specified 3/16-inch orbital pattern.
FAQs:
- Q: What is the maximum working torque and free speed of the 4151?
A: The 4151 has a 12,000 RPM maximum free speed and a 3/16-inch (5 mm) orbit diameter. - Q: What size pad does the 4151 use?
A: The manufacturer specifies a 6-inch (150 mm) pad. - Q: Is the 4151 vacuum ready?
A: Yes. The 4151 is designed for connection to central or portable vacuum systems. - Q: What are the air requirements for the 4151?
A: The manufacturer specifies a 1/4-inch NPT air inlet, 25 CFM air consumption, and a 5/16-inch (8 mm) minimum hose size.
| SKU | Free Speed rpm |
Rated Power hp (kW) |
Pad Diameter in (mm) |
Orbit Diameter in (mm) |
Weight lb (kg) |
Average Air Consumption cfm (L/min) |
Air Consumption @ Load cfm (L/min) |
Sound Pressure / Power dBA |
Air Inlet NPTF in |
Min Hose Size in (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4151 | 12,000 | 0.2 (0.15) | 6" (150) | 3/16" (5) | 1.92 (.87) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
| 4151-5* | 12,000 | 0.2 (0.15) | 5" (125) | 3/16" (5) | 1.92 (.87) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
| 4151-HL* | 12,000 | 0.2 (0.15) | 6" (150) | 3/16" (5) | 1.92 (.87) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
| 4151-2* | 12,000 | 0.2 (0.15) | 6" (150) | 3/16" (5) | 2.4 (1.1) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
| 4152 | 12,000 | 0.2 (0.15) | 6" (150) | 3/32" (2.5) | 1.92 (.87) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
| 4152-HL* | 12,000 | 0.2 (0.15) | 6" (150) | 3/32" (2.5) | 1.92 (.87) | 8 (226) | 15.5 (439) | 81.6 / 91 | 1/4" | 5/16" (8) |
Looking for more information about Ingersoll Rand Air Sander? Click here to view the Catalog.
For help selecting the correct Ingersoll Rand Air Sanders for your assembly application, call (800) 608-5210 or email info@intlairtool.com
- Type
- Air Sander
- RPM
- 12000
- Power (hp)
- 0.2
- Power (kw)
- 0.15
- Pad Diameter (in.)
- 6
- Pad Diameter (mm)
- 150
- Orbit Diameter (in.)
- 3/16
- Orbit Diameter (mm)
- 5
- Exhaust
- Rear
- Pad Type
- Vinyl
- Shroud Style
- Short
- Length (in.)
- 7.48
- Length (mm)
- 190
- Avgerage Air Consumption (CFM)
- 8
- Average Air Consumption (l/mn)
- 226
- Air Consumption @ Load (CFM)
- 15.5
- Air Consumption @ Load (l/mn)
- 439
- Air Inlet
- 1/4" NPT
- Min Hose Size (in.)
- 5/16
- Min Hose Size (mm)
- 8
