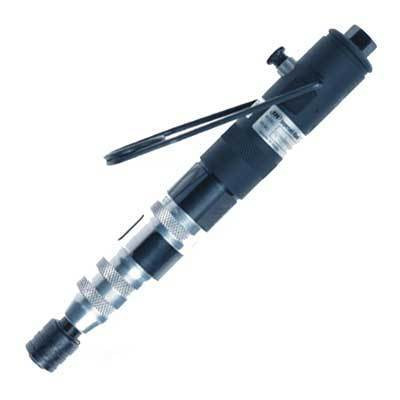

Designed for precision fastening and high-volume assembly operations, the Ingersoll Rand 1RPMS1 inline air screwdriver delivers a 1,650 RPM free speed with an adjustable 4.4–20.4 in-lbs torque range for consistent fastening performance across a wide range of production applications. Equipped with an adjustable shut-off clutch and push-to-start activation, this pneumatic screwdriver helps achieve repeatable torque while minimizing the risk of over-tightening, making it well suited for quality-sensitive assembly processes.
Built for continuous industrial use, the 1RPMS1 combines an ergonomic inline design with an automatic shut-off clutch that disengages once the preset torque is reached, improving fastening consistency and reducing operator fatigue during repetitive tasks. The push-to-start mechanism streamlines operation by automatically engaging the tool when pressure is applied to the fastener, helping increase efficiency on production lines.
Type: Inline Air Screwdriver | Free Speed: 1,650 RPM | Torque Range: 4.4–20.4 in-lbs | Clutch Type: Adjustable Shut-Off | Throttle: Push-to-Start
|
Features:
|
|
Made in USA:
Applications:
- Electronics and electrical equipment assembly.
- Automotive component and subassembly manufacturing.
- Appliance manufacturing and production assembly lines.
- Precision fastening applications requiring repeatable torque control.
- General industrial manufacturing where consistent screw installation is critical to product quality.
FAQs:
- Q: What is the benefit of an adjustable shut-off clutch?
A: The clutch automatically disengages when the preset torque is reached, helping deliver consistent fastening results while reducing the possibility of over-tightening. - Q: Why choose a push-to-start screwdriver?
A: Push-to-start activation allows the tool to begin operating when pressure is applied to the fastener, improving efficiency during repetitive assembly work by eliminating the need for a separate throttle lever. - Q: What types of applications is the 1RPMS1 designed for?
A: It is intended for industrial assembly operations including electronics, appliances, automotive components, and other manufacturing processes where controlled torque is essential. - Q: Why does this screwdriver operate at 1,650 RPM?
A: The 1,650 RPM free speed provides a balanced combination of productivity and fastening control, making it suitable for a broad range of precision assembly applications.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Lever Start | |||||||||
| 1RLNS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 9.7 – 30.1 (1.1 – 3.4) | 1,000 | 1.1 (0.5) | 9.2" (234) | 0.6" (14) | 1/4" | 13 (368) |
| Push-to-Start | |||||||||
| 1RPLS1 | 4.4 – 13.3 (0.5 – 1.5) | – | – | 2,800 | 1.1 (0.5) | 8.4" (213) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPMS1 | 4.4 – 15.9 (0.5 – 1.8) | 6.2 – 20.4 (0.7 – 2.3) | – | 1,650 | 1.1 (0.5) | 8.7" (222) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPNS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 9.7 – 30.1 (1.1 – 3.4) | 1,000 | 1.1 (0.5) | 8.7" (222) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPQS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 8.9 – 45.1 (1.0 – 5.1) | 500 | 1.1 (0.5) | 8.7" (222) | 0.7" (17) | 1/4" | 13 (368) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Screwdriver
- Grip Style
- Inline
- Actuation
- Push to Start
- Torque Range (Nm)
- 0.5 - 2.3
- Torque Range (in-lbs)
- 4.4 - 20.4
- RPM
- 1650
- Length (in.)
- 8.7
- Length (mm)
- 222
- Side to Center (mm)
- 14
- Side to Center (in.)
- 0.6
- Spindle Size (in.)
- 1/4
- Drive Type
- Hex Quick Change
- Sound Level (dbA)
- 73
- Inlet Location
- Std
- Air Inlet
- 1/8" NPT
- Air Consumption (CFM)
- 13
