Engineered for precision fastening and controlled assembly operations, the Ingersoll Rand 1RLNS1 inline air screwdriver delivers a 1,000 RPM free speed with an adjustable 2.7–30.1 in-lbs torque range for repeatable fastening performance. Featuring an adjustable shut-off clutch and lever-start throttle, this pneumatic screwdriver is designed to help improve torque consistency while reducing the risk of over-tightening in production assembly environments.
Designed for continuous-duty industrial use, the 1RLNS1 combines an ergonomic inline configuration with an automatic shut-off clutch that disengages once the preset torque is reached. This helps deliver consistent fastener installation, improves product quality, and reduces operator fatigue during repetitive assembly operations. Its inline design naturally aligns with the fastener axis, making it well suited for electronics, appliance, automotive component, and general manufacturing applications.
Type: Inline Air Screwdriver | Free Speed: 1,000 RPM | Torque Range: 2.7–30.1 in-lbs | Clutch Type: Adjustable Shut-Off | Throttle: Lever-Start
|
Features:
|
|
Made in USA:
Applications:
- Production assembly lines requiring consistent, repeatable screw installation.
- Automotive component and subassembly manufacturing.
- Electronics and electrical equipment assembly.
- Appliance manufacturing and light industrial production.
- General industrial fastening where controlled torque is critical to product quality.
FAQs:
- Q: What is the advantage of an adjustable shut-off clutch?

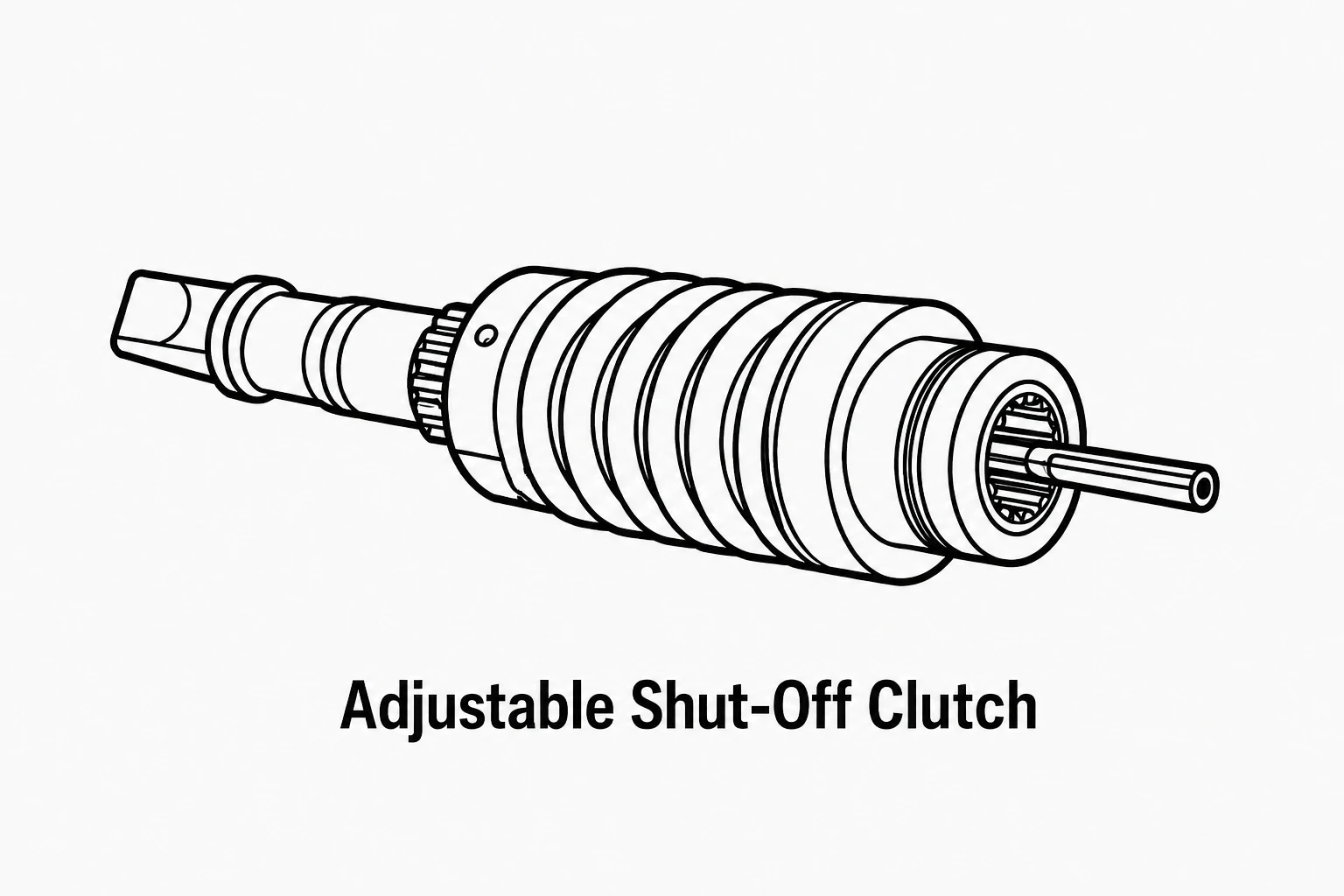

A: The shut-off clutch automatically disengages once the preset torque is reached, helping improve fastening consistency and reducing the likelihood of over-tightening. - Q: Why choose an inline screwdriver?
A: An inline design aligns the tool with the fastener, promoting better ergonomics and improved control during repetitive assembly work. - Q: What types of applications is the 1RLNS1 designed for?
A: It is intended for industrial assembly operations requiring controlled torque, including automotive components, electronics, appliances, and general manufacturing. - Q: What does the lever-start throttle provide?
A: The lever-start throttle offers responsive activation and improved operator control throughout the fastening cycle.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Air Inlet | Air Consumption |
|---|---|---|---|---|---|---|---|---|---|
| in-lbs (Nm) | in-lbs (Nm) | in-lbs (Nm) | rpm | lbs (kg) | in (mm) | in (mm) | in | cfm (L/min) | |
| Lever Start | |||||||||
| 1RLNS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 9.7 – 30.1 (1.1 – 3.4) | 1,000 | 1.1 (0.5) | 9.2" (234) | 0.6" (14) | 1/4" | 13 (368) |
| Push-to-Start | |||||||||
| 1RPLS1 | 4.4 – 13.3 (0.5 – 1.5) | – | – | 2,800 | 1.1 (0.5) | 8.4" (213) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPMS1 | 4.4 – 15.9 (0.5 – 1.8) | 6.2 – 20.4 (0.7 – 2.3) | – | 1,650 | 1.1 (0.5) | 8.7" (222) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPNS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 9.7 – 30.1 (1.1 – 3.4) | 1,000 | 1.1 (0.5) | 8.7" (222) | 0.6" (14) | 1/4" | 13 (368) |
| 1RPQS1 | 2.7 – 15.9 (0.3 – 1.8) | 4.4 – 23 (0.5 – 2.6) | 8.9 – 45.1 (1.0 – 5.1) | 500 | 1.1 (0.5) | 8.7" (222) | 0.7" (17) | 1/4" | 13 (368) |
Looking for more information about the Ingersoll Rand Screwdriver? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Screwdrivers for your application, please call (800) 608-5210 or email info@intlairtool.com
