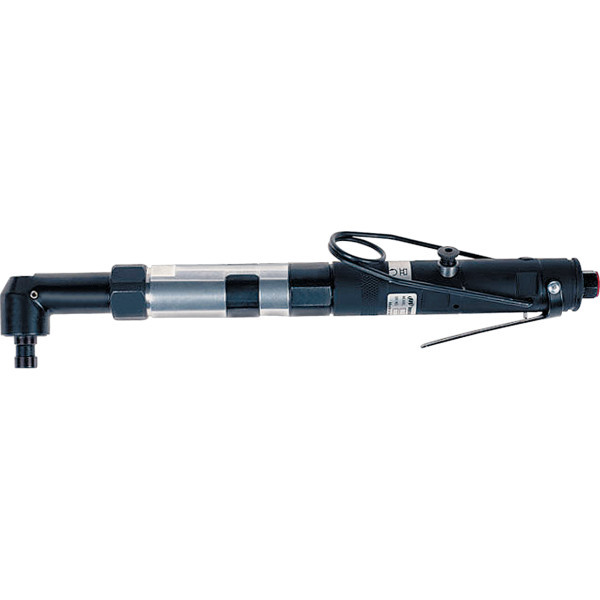

Ingersoll Rand 1RLN2S5 Angle Air Nutrunner | 1 Series | 3.5 - 46.0 (in-lbs) Torque Range | 1/4" Square Drive | Adjustable Shut-Off Clutch | Lever Start

Ingersoll Rand 1RLN2S5 Angle Air Nutrunner is engineered for precision fastening applications where consistent torque and operator comfort are essential. As part of the 1 Series, this pneumatic nutrunner features a 3.5–46.0 in-lbs adjustable torque range, a 1/4-inch square drive, and an adjustable shut-off clutch that automatically disengages once the preset torque is reached, helping improve fastening consistency while reducing the risk of over-tightening. Its compact angle head provides excellent access in confined workspaces, while the lever-start throttle offers simple, controlled operation during repetitive assembly tasks.

Designed for light-duty production and precision assembly environments, the 1RLN2S5 delivers dependable pneumatic performance with reduced operator fatigue. Its ergonomic angle configuration makes it ideal for applications where a straight nutrunner cannot easily reach, helping improve productivity without sacrificing fastening accuracy.

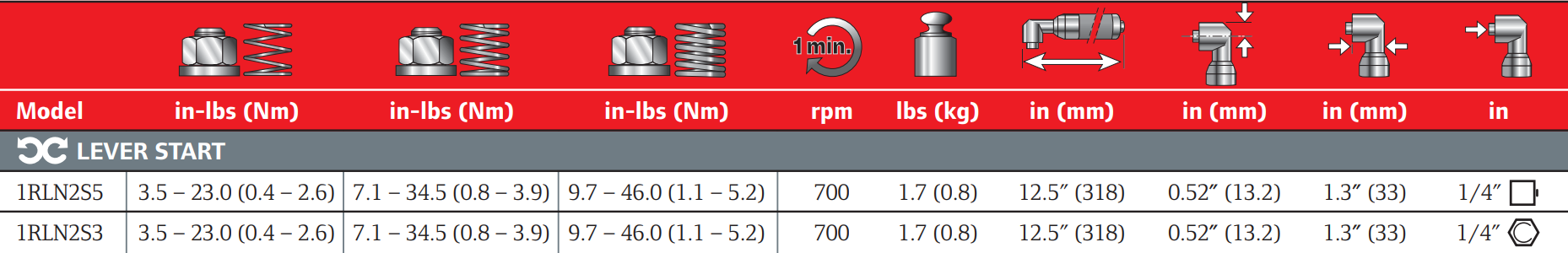

Tool Type: Angle Air Nutrunner | Series: 1 Series | Torque Range: 3.5–46.0 in-lbs | Drive Size: 1/4" Square | Clutch Type: Adjustable Shut-Off | Throttle: Lever Start

Features:

• Adjustable shut-off clutch automatically stops the tool when the preset torque is achieved for improved fastening consistency.
• Angle head design provides improved accessibility in tight or obstructed assembly locations.
• Lever start throttle offers smooth, responsive tool activation during repetitive fastening operations.
• Torque range of 3.5–46.0 in-lbs supports a wide variety of precision fastening applications.
• 1/4-inch square drive accepts compatible sockets for efficient fastener installation.
• Compact pneumatic design helps reduce operator fatigue during extended production use.

Made in USA:

Applications:

• Electronics and precision component assembly.
• Automotive sub-assembly and light manufacturing operations.
• Appliance and consumer product assembly lines.
• General industrial production requiring repeatable low-torque fastening.
• Assembly workstations where access is limited and an angle-head configuration is preferred.

FAQs:

• Q: What is an adjustable shut-off clutch?
  A: It is a clutch mechanism that automatically disengages the tool when the preset torque is reached, helping improve fastening consistency and reducing the chance of over-tightening.
• Q: Why choose an angle nutrunner instead of a straight model?
  A: The angle head provides better access to fasteners in confined or obstructed work areas where a straight tool may be difficult to position.
• Q: What size sockets are compatible with this tool?
  A: The 1RLN2S5 features a 1/4-inch square drive and is designed for use with compatible 1/4-inch square drive sockets.
• Q: What types of applications is this nutrunner best suited for?
  A: It is designed for precision, repeatable fastening in light manufacturing, electronics, appliance assembly, and other production environments requiring controlled low-torque output.

Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog

For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
