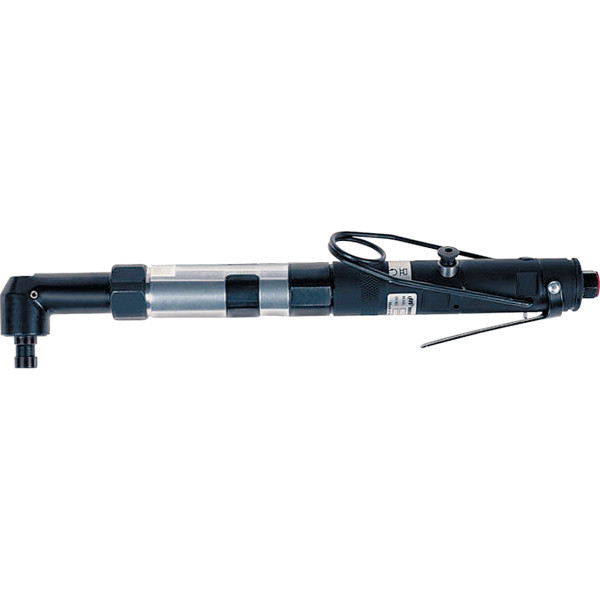

Ingersoll Rand 1RLN2S3 Angle Air Nutrunner is designed for precision fastening applications that demand repeatable torque accuracy and excellent accessibility. As part of the 1 Series, this pneumatic nutrunner delivers a 3.5–46.0 in-lbs adjustable torque range and features a 1/4-inch Hex Quick Change chuck for fast bit changes during repetitive assembly operations. Its adjustable shut-off clutch automatically disengages when the preset torque is achieved, helping improve fastening consistency while reducing the risk of over-tightening. The compact angle-head design and ergonomic lever start throttle make the tool well suited for assembly work in confined spaces.
Engineered for light-duty production environments, the 1RLN2S3 combines dependable pneumatic performance with operator comfort and productivity. The quick-change hex drive minimizes downtime when switching driver bits, making this tool an excellent choice for applications requiring multiple fastener types or frequent bit changes.
Tool Type: Angle Air Nutrunner | Series: 1 Series | Torque Range: 3.5–46.0 in-lbs | Drive Type: 1/4" Hex Quick Change | Clutch Type: Adjustable Shut-Off | Throttle: Lever Start
Features:
- Adjustable shut-off clutch automatically disengages the tool once the preset torque is reached for improved fastening consistency.
- 1/4-inch hex quick-change chuck allows rapid bit changes to minimize production downtime.
- Compact angle-head configuration improves access to fasteners in confined assembly areas.
- Lever start throttle provides smooth, responsive operation for repetitive fastening tasks.
- Torque range of 3.5–46.0 in-lbs supports a variety of precision fastening applications.
- Pneumatic design is well suited for continuous-duty manufacturing and assembly environments.
Made in USA:
Applications:
- Electronics and precision component assembly.
- Appliance and consumer product manufacturing.
- Automotive sub-assembly and light production operations.
- Industrial assembly lines requiring repeatable low-torque fastening.
- Workstations where frequent driver bit changes improve production efficiency.
FAQs:
- Q: What is the benefit of a 1/4-inch Hex Quick Change chuck?
A: The quick-change chuck allows operators to rapidly swap compatible hex driver bits without additional tools, improving productivity during repetitive assembly work. - Q: What does the adjustable shut-off clutch do?
A: It automatically disengages the tool when the preset torque is reached, helping deliver consistent fastening results while reducing the possibility of over-tightening. - Q: Why choose an angle-head nutrunner?
A: The angle-head design provides improved access to fasteners in tight or obstructed locations where straight tools may be difficult to use. - Q: What types of applications is this tool intended for?
A: The 1RLN2S3 is designed for precision, repeatable fastening in electronics, appliance manufacturing, automotive sub-assembly, and other light industrial production environments.
| SKU | Torque Range | Torque Range | Torque Range | Free Speed | Weight | Length | Side to Center | Head Height | Drive |
|---|---|---|---|---|---|---|---|---|---|
| IN-LBS (NM) | IN-LBS (NM) | IN-LBS (NM) | RPM | LBS (KG) | IN (MM) | IN (MM) | IN (MM) | IN | |
| Lever Start | |||||||||
| 1RLN2S5 | 3.5 – 23.0 (0.4 – 2.6) |
7.1 – 34.5 (0.8 – 3.9) |
9.7 – 46.0 (1.1 – 5.2) |
700 | 1.7 (0.8) |
12.5" (318) |
0.52" (13.2) |
1.3" (33) |
1/4" |
| 1RLN2S3 | 3.5 – 23.0 (0.4 – 2.6) |
7.1 – 34.5 (0.8 – 3.9) |
9.7 – 46.0 (1.1 – 5.2) |
700 | 1.7 (0.8) |
12.5" (318) |
0.52" (13.2) |
1.3" (33) |
1/4" |
Looking for more information about the Ingersoll Rand Nutrunner? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Nutrunners for your application, please call (800) 608-5210 or email info@intlairtool.com
