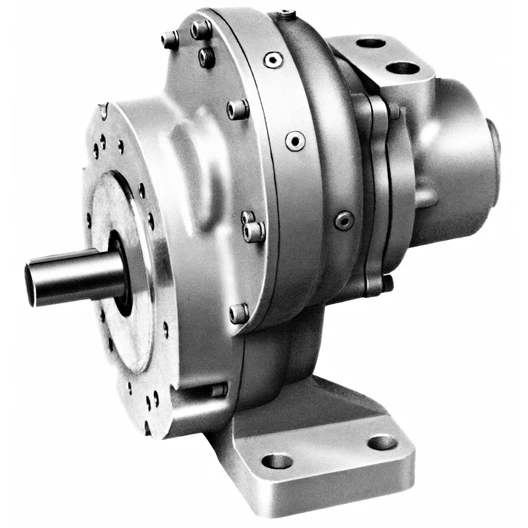

Ingersoll Rand 17RA005 Spur Gear Reversible Multi-Vane Air Motor | 2.3 HP | 1,110 RPM | 24 (ft-lbs) Starting Torque | 37 (ft-lbs) Stall Torque

Ingersoll Rand 17RA005 Spur Gear Reversible Multi-Vane Air Motor is designed to provide dependable pneumatic rotary power for industrial applications requiring reversible operation, controlled speed, and substantial torque output. This 17 Series air motor delivers 2.3 HP with a free speed of 1,110 RPM. Its spur gear, multi-vane configuration is suited to applications where reliable compressed-air rotary power and bidirectional operation are required.

The 17RA005 provides 24 ft-lbs starting torque, offering a reference for the torque available to initiate rotation from rest, and 37 ft-lbs stall torque, representing the maximum torque produced when the output shaft is prevented from rotating. The reversible design allows clockwise and counterclockwise operation, making this motor a flexible choice for compatible OEM machinery, production equipment, and rotary drive applications.

Type: Spur Gear Multi-Vane Air Motor | Series: 17 Series | Model: 17RA005 | Rotation: Reversible | Power: 2.3 HP | Free Speed: 1,110 RPM | Starting Torque: 24 ft-lbs | Stall Torque: 37 ft-lbs

Features:

• Spur gear, multi-vane motor configuration provides pneumatic rotary power for compatible industrial equipment.
• Reversible operation allows clockwise and counterclockwise rotation for applications requiring directional flexibility.
• 2.3 HP output provides substantial pneumatic power for compatible machinery and drive systems.
• 1,110 RPM free speed supports controlled rotary operation for applications requiring higher rotational speed.
• 24 ft-lbs starting torque provides a manufacturer-published reference for startup torque capability.
• 37 ft-lbs stall torque provides a manufacturer-published reference for maximum torque output under stalled conditions.
• 17 Series design is intended for high-torque air motor applications.
• Reversible pneumatic operation allows the motor to be integrated into equipment requiring changes in rotational direction.

Made in USA:

Applications:

• OEM machinery requiring reversible pneumatic rotary power.
• Industrial production and processing equipment.
• Rotary drive systems requiring bidirectional operation.
• Material handling and compatible automated equipment.
• Replacement installations where the motor's power, speed, torque, and rotation characteristics match the existing equipment requirements.

FAQs:

• Q: Is the Ingersoll Rand 17RA005 reversible?
  A: Yes. The 17RA005 is specified as a reversible air motor and is designed for operation in both rotational directions.
• Q: What does spur gear mean on this air motor?
  A: Spur gear refers to the gear arrangement used with the motor. The 17RA005 combines this configuration with a multi-vane pneumatic motor to provide rotary power.
• Q: What is the rated free speed of the 17RA005?
  A: The specified free speed is 1,110 RPM.
• Q: What is the starting torque of the 17RA005?
  A: The specified starting torque is 24 ft-lbs, which provides a reference for the motor's torque capability when initiating rotation.
• Q: What is the stall torque of the 17RA005?
  A: The specified stall torque is 37 ft-lbs, representing the manufacturer's published maximum torque under stalled conditions.
• Q: What should be checked before installing this air motor?
  A: Verify the required horsepower, operating speed, rotation direction, torque requirements, shaft and mounting configuration, and other equipment interface specifications before installation.

Looking for more information about Ingersoll Rand Air Motor? Click here to view the Catalog

For help selecting the correct Ingersoll Rand Air Motors for your assembly application, call (800) 608-5210 or email info@intlairtool.com
