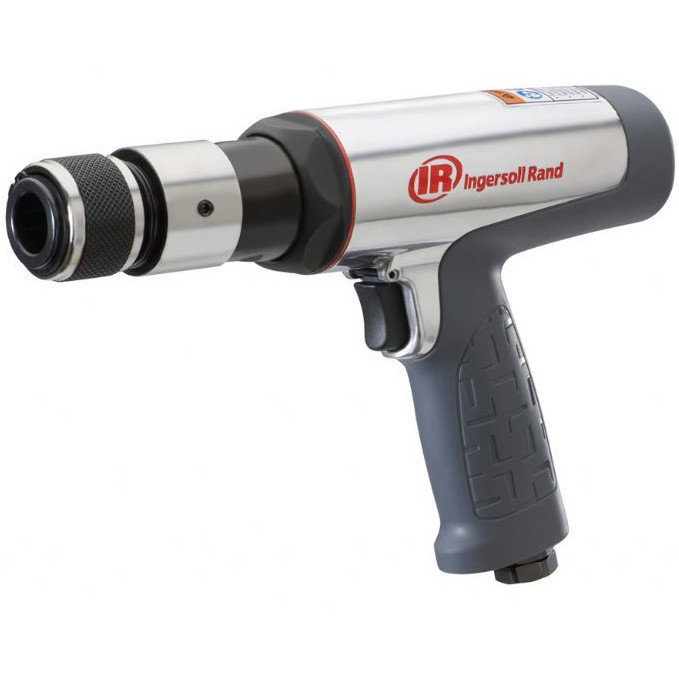

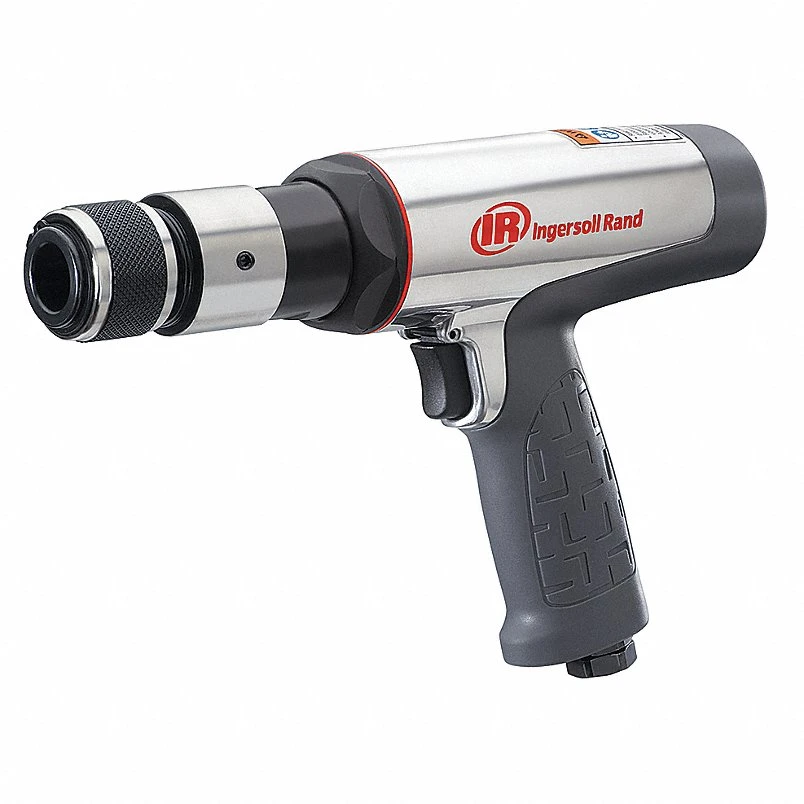

Designed for demanding metalworking, vehicle service, and industrial maintenance applications, the Ingersoll Rand 123MAX vibration reduced air hammer combines a 3/4" bore, 3,530 blows per minute (BPM), and a 2.6" piston stroke to deliver powerful material removal and cutting performance. Engineered with vibration-reducing technology and a trigger throttle, this pneumatic air hammer helps improve operator comfort while maintaining the power required for heavy-duty cutting, chiseling, and surface preparation tasks.
Built for professional technicians and industrial maintenance personnel, the 123MAX features an ergonomic design that helps reduce vibration transferred to the operator during extended use. Its long piston stroke generates strong impact energy for demanding applications such as cutting exhaust systems, removing stubborn fasteners, separating seized components, and chipping welds, making it a dependable solution for automotive, fleet, fabrication, and industrial repair work.
Type: Vibration Reduced Air Hammer | Bore: 3/4 in. | Blows Per Minute: 3,530 BPM | Piston Stroke: 2.6 in. | Throttle: Trigger
Features:
- Vibration-reduced design helps improve operator comfort during prolonged use.
- 3/4-inch bore and 2.6-inch piston stroke deliver strong impact energy for demanding material removal applications.
- 3,530 blows per minute provide rapid cutting, chiseling, and surface preparation performance.
- Trigger throttle offers responsive speed and impact control during operation.
- Ergonomic grip improves handling and helps reduce fatigue during repetitive work.
- Designed for professional automotive, industrial, and maintenance applications.
- Compatible with standard air hammer chisels and accessories designed for this class of tool.
Applications:
- Cutting exhaust systems, body panels, and sheet metal.
- Removing rusted or seized fasteners, rivets, and pins.
- Separating ball joints and suspension components during vehicle service.
- Chipping weld slag, removing gaskets, and cleaning metal surfaces.
- Industrial maintenance, fabrication, and general repair operations requiring high-impact pneumatic performance.
FAQs:
- Q: What is the benefit of the vibration-reduced design?
A: The vibration reduction system helps minimize vibration transmitted to the operator, improving comfort and reducing fatigue during extended periods of use. - Q: What does the 2.6-inch piston stroke provide?
A: The longer piston stroke helps generate greater impact energy, making the tool effective for demanding cutting, chiseling, and material removal applications. - Q: What types of work is the 123MAX intended for?
A: It is designed for automotive repair, fleet maintenance, fabrication, industrial maintenance, and general metalworking applications requiring pneumatic impact power. - Q: What advantage does the trigger throttle offer?
A: The trigger throttle provides responsive control over tool operation, allowing the user to better manage impact force during precision and heavy-duty tasks.

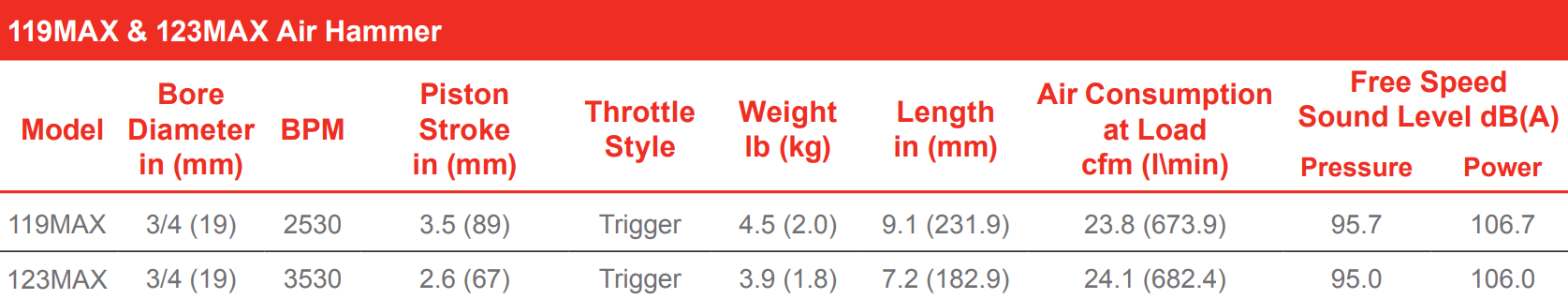

| SKU | Bore Diameter in (mm) |
BPM | Piston Stroke in (mm) |
Throttle Style | Weight lb (kg) |
Length in (mm) |
Air Consumption at Load cfm (l\min) |
Free Speed Sound Level dB(A) |
|
|---|---|---|---|---|---|---|---|---|---|
| Pressure | Power | ||||||||
| 119MAX | 3/4 (19) | 2530 | 3.5 (89) | Trigger | 4.5 (2.0) | 9.1 (231.9) | 23.8 (673.9) | 95.7 | 106.7 |
| 123MAX | 3/4 (19) | 3530 | 2.6 (67) | Trigger | 3.9 (1.8) | 7.2 (182.9) | 24.1 (682.4) | 95.0 | 106.0 |
Looking for more information about the Ingersoll Rand Air Hammer? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Air Hammers for your application, please call (800) 608-5210 or email info@intlairtool.com
