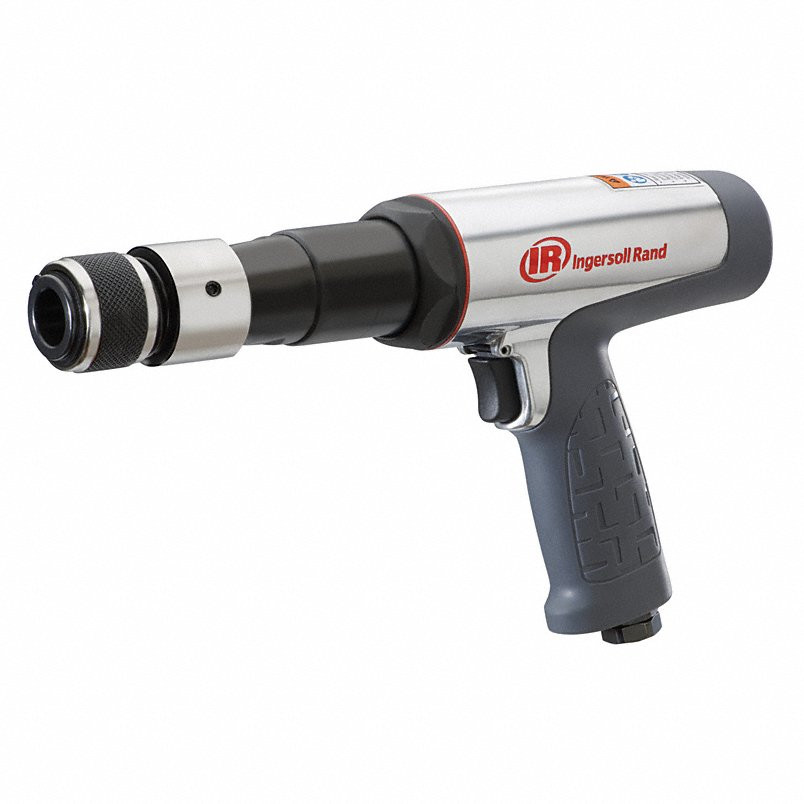

Engineered for demanding metalworking, heavy-duty vehicle service, and industrial maintenance, the Ingersoll Rand 119MAX vibration-reduced air hammer combines a 3/4" bore, 2,530 blows per minute (BPM), and a 3.5" piston stroke to deliver powerful impact energy for challenging cutting, separating, and material removal applications. Designed with a round shank retainer, this pneumatic air hammer is built to handle heavy-duty chiseling tasks while helping reduce vibration transmitted to the operator during extended use.
The 119MAX features vibration-reducing technology that improves operator comfort without compromising striking performance. Its extended piston stroke generates greater impact force per blow, making it well suited for demanding applications such as removing seized components, separating heavy suspension parts, cutting structural metal, and performing aggressive surface preparation in automotive, fleet, fabrication, and industrial environments.
Type: Vibration-Reduced Air Hammer | Bore: 3/4 in. | Blows Per Minute: 2,530 BPM | Piston Stroke: 3.5 in. | Retainer Style: Round Shank
Features:
- Vibration-reduced design helps improve operator comfort during prolonged heavy-duty applications.
- 3/4-inch bore and extended 3.5-inch piston stroke deliver high-impact energy for demanding material removal tasks.
- 2,530 blows per minute provide controlled striking power for aggressive cutting and chiseling applications.
- Round shank retainer is designed for use with compatible round shank air hammer accessories.
- Ergonomic construction helps improve handling and reduce fatigue during repetitive industrial work.
- Built for professional automotive, fleet maintenance, fabrication, and industrial repair applications.
- Designed to provide reliable pneumatic performance in continuous-duty service environments.
Applications:
- Removing seized pins, rivets, and stubborn fasteners.
- Separating suspension, steering, and chassis components during heavy vehicle repair.
- Cutting heavy-gauge metal, structural materials, and exhaust components.
- Removing weld slag, gaskets, corrosion, and other surface contaminants.
- Industrial fabrication, maintenance, and repair operations requiring high-impact pneumatic performance.
FAQs:
- Q: What is the benefit of the 3.5-inch piston stroke?
A: The extended piston stroke produces greater impact energy per blow, making the tool well suited for demanding cutting, separating, and heavy material removal applications. - Q: What does the vibration-reduced design provide?
A: The vibration reduction system helps minimize vibration transferred to the operator, improving comfort and reducing fatigue during extended use. - Q: What is the advantage of the round shank retainer?
A: The round shank retainer is designed to securely hold compatible round shank chisels and accessories used in heavy-duty air hammer applications. - Q: What types of applications is the 119MAX intended for?
A: It is designed for automotive repair, heavy equipment maintenance, fabrication, industrial maintenance, and metalworking applications requiring powerful pneumatic impact performance.
| SKU | Bore Diameter in (mm) |
BPM | Piston Stroke in (mm) |
Throttle Style | Weight lb (kg) |
Length in (mm) |
Air Consumption at Load cfm (l\min) |
Free Speed Sound Level dB(A) |
|
|---|---|---|---|---|---|---|---|---|---|
| Pressure | Power | ||||||||
| 119MAX | 3/4 (19) | 2530 | 3.5 (89) | Trigger | 4.5 (2.0) | 9.1 (231.9) | 23.8 (673.9) | 95.7 | 106.7 |
| 123MAX | 3/4 (19) | 3530 | 2.6 (67) | Trigger | 3.9 (1.8) | 7.2 (182.9) | 24.1 (682.4) | 95.0 | 106.0 |
Looking for more information about the Ingersoll Rand Air Hammer? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Air Hammers for your application, please call (800) 608-5210 or email info@intlairtool.com
