Ingersoll Rand 11119022 MLK Series Air Chain Hoist | ML500K-2C15-C10U | 1/2 Ton Capacity | 15 ft Lift | 10 ft Drop | Steel Snap Hook | Pendent Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand 11119022 MLK Series Air Chain Hoist | ML500K-2C15-C10U | 1/2 Ton Capacity | 15 ft Lift | 10 ft Drop | Steel Snap Hook | Pendent Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
11119022
Weight:
60.0000 LBS
Condition:
New
Description

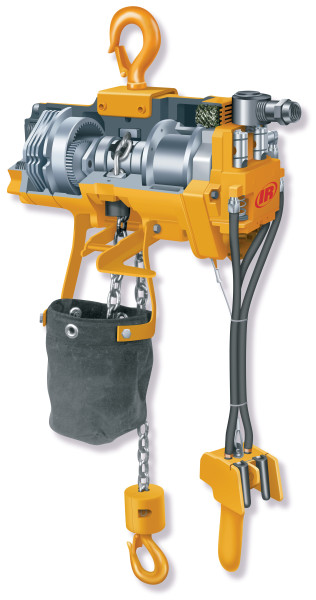

Designed for dependable overhead lifting in manufacturing, maintenance, assembly, and material handling applications, Ingersoll Rand 11119022 (ML500K-2C15-C10U) Air Chain Hoist combines a 1/2 Ton (1,100 lb / 500 kg) rated capacity, 15 ft lift, and 10 ft pendent drop to provide smooth, accurate load positioning. As part of the MLK Series, this pneumatic chain hoist is powered by a high-performance six-vane air motor engineered for continuous 100% duty cycle operation. The ergonomic 2-button pendent control enables responsive lifting and lowering, while the steel snap hook with safety latch provides dependable load engagement. The U configuration includes a fabric chain container for convenient storage of excess load chain.

Engineered for demanding industrial environments, this hoist incorporates a spring-engaged, air-release non-asbestos disc brake that automatically secures suspended loads whenever the controls are released. Upper and lower limit stops help prevent excessive chain travel, while the compact hook-mounted construction minimizes installation headroom. According to the Ingersoll Rand 7756 Industrial Lifting Equipment Catalog, this model utilizes a single-fall load chain configuration for reliable lifting performance.

Type: Air Chain Hoist | Series: MLK Series | Part Number: 11119022 | Model: ML500K-2C15-C10U | Capacity: 1/2 Ton (1,100 lb / 500 kg) | Lift: 15 ft | Pendent Drop: 10 ft | Control Type: 2-Button Pendent Control | Top Suspension: Top Hook | Bottom Hook: Steel Snap Hook with Safety Latch | Chain Container: Fabric Chain Container | Chain Falls: 1 | Load Chain Size: 6.4 × 19.5 mm | Headroom: 18 in (457.2 mm) | Lifting Speed: 55 ft/min | Lowering Speed: 97 ft/min | Air Inlet: 1/4 in. NPT | Operating Pressure: 90 PSI (6.3 bar) | Duty Cycle: 100%

Features:

  • High-performance six-vane pneumatic motor delivers continuous 100% duty cycle operation.
  • Responsive 2-button pendent control enables smooth and accurate lifting and lowering.
  • Spring-engaged, air-release non-asbestos disc brake automatically secures suspended loads.
  • Single-fall load chain configuration provides efficient lifting performance.
  • Steel snap hook with safety latch offers dependable load attachment.
  • Fabric chain container keeps excess load chain organized and protected during operation.
  • Upper and lower limit stops help prevent excessive chain travel.
  • Compact hook-mounted construction minimizes installation headroom requirements.
  • Designed to meet ASME B30.16, ASME HST-5 Duty Rating A5, and FEM/ISO Classification 1Am/M4.

Applications:

  • Manufacturing and production facilities.
  • Industrial maintenance and repair operations.
  • Machine shops and fabrication plants.
  • Assembly workstations requiring controlled overhead lifting.
  • General compressed air-powered material handling applications.

FAQs:

  • Q: What is the lifting capacity of this hoist?
    A: The 11119022 (ML500K-2C15-C10U) is rated to lift up to 1/2 Ton (1,100 lb / 500 kg).
  • Q: How many chain falls does this hoist use?
    A: According to the Ingersoll Rand manufacturer catalog, this model utilizes a single-fall (1-fall) load chain configuration.
  • Q: What size load chain is used?
    A: The manufacturer specifies a 6.4 × 19.5 mm load chain.
  • Q: Does this model include a chain container?
    A: Yes. The "U" configuration includes a fabric chain container for collecting and managing excess load chain.
  • Q: What operating air pressure is required?
    A: The hoist is designed to operate using clean, dry compressed air at 90 PSI (6.3 bar).



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
MLK Series
Capacity (tons):
1/2
Capacity (lbs):
1100
Lift (ft.):
15
Drop (ft.):
10
Control:
Pendent Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
1
Hook Mount Headroom (in.):
18
Trolley Mount Headroom (in.):
18
Lifting Speed Rated Load (ft/min):
55
Lifting Speed Rated Load (m/min):
16.8
Lifting Speed No Load (ft/min):
106
Lifting Speed No Load (m/min):
32.3
Lowering Speed Rated Load (ft/min):
97
Lowering Speed Rated Load (m/min):
29.6
Lowering Speed No Load (ft/min):
59
Lowering Speed No Load (m/min):
18
Chain Size:
6.4 x 19.5
Warranty Information
One year warranty against manufacturers defects.
