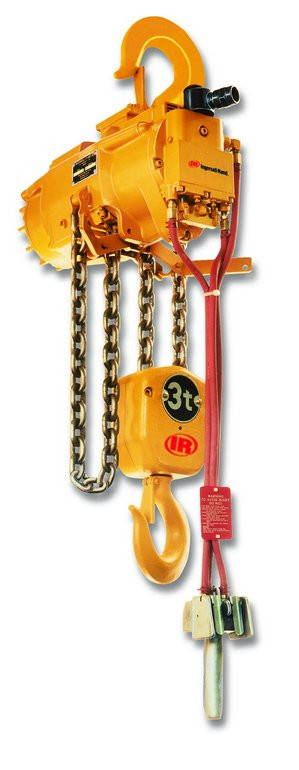

Ingersoll Rand 11118985 HLK Series Air Chain Hoist | HL6000K-1C10-C10M | 6 Ton Capacity | 10 ft Lift | 10 ft Drop | Steel Snap Hook | Pull Chain Control

Product images may not be an exact representation of the actual product. Please check the description below for technical specifications.

Ingersoll Rand

Ingersoll Rand 11118985 HLK Series Air Chain Hoist | HL6000K-1C10-C10M | 6 Ton Capacity | 10 ft Lift | 10 ft Drop | Steel Snap Hook | Pull Chain Control

Please Call (800) 608-5210 for Price and Availability or Email info@intlairtool.com

Availability:
Available To Order From Supplier
SKU:
11118985
Weight:
310.0000 LBS
Condition:
New
Description

Built for demanding lifting operations in manufacturing plants, maintenance facilities, fabrication shops, and heavy industrial environments, the Ingersoll Rand 11118985 HLK Series Air Chain Hoist delivers a 6 Ton (13,200 lb) lifting capacity with a 10 ft lift and 10 ft pull chain control drop for reliable overhead material handling. Its pneumatic drive eliminates the need for electrical power, making it a practical choice for continuous-duty lifting applications where dependable performance and precise load control are essential. The pull chain control provides responsive manual operation, while the steel snap hook bottom suspension offers secure load attachment for a variety of lifting tasks.

Built on the proven HLK Series platform, this air chain hoist incorporates interchangeable components that simplify maintenance and reduce downtime. A self-adjusting air-operated disc brake, planetary gearing, and bearing-supported rotating assemblies work together to provide smooth lifting performance and dependable load control. Rated for a 100% duty cycle and HMI Duty Classification A5, this hoist is well suited for continuous production environments where reliability and accurate load positioning are critical.

Type: Air Chain Hoist | Series: HLK Series | Model: HL6000K-1C10-C10M | Capacity: 6 Ton (13,200 lbs) | Lift: 10 ft | Control Drop: 10 ft | Control Type: Pull Chain Control | Top Suspension: Swivel Top Hook | Bottom Suspension: Steel Snap Hook | Chain Falls: 4 | Hook Mount Headroom: 36.2 in | Trolley Mount Headroom: 32.2 in | Lift Speed (Rated Load): 3.5 ft/min

Features:

  • 100% duty cycle with HMI Duty Classification A5 for continuous industrial lifting applications.
  • Pull chain control allows accurate lifting and lowering with responsive manual operation.
  • Self-adjusting air-operated disc brake is spring applied and air released to provide dependable load holding.
  • Planetary gear train distributes load across multiple gear teeth for smooth, efficient power transmission.
  • Ball and roller bearings support rotating components to promote reliable operation and reduced wear.
  • Modular construction with interchangeable components simplifies maintenance and minimizes downtime.
  • Inlet swivels, exhaust air chain lubrication, and adjustable controls improve serviceability.
  • Compatible with optional accessories and specialized configurations for a variety of industrial applications.

Applications:

  • Positioning machinery, equipment, and heavy components during maintenance and repair.
  • Lifting dies, molds, and production tooling in manufacturing facilities.
  • Material handling in fabrication shops, steel processing plants, and industrial warehouses.
  • Supporting equipment installation, assembly, and production line maintenance.
  • Continuous overhead lifting where precise manual load control is required.

FAQs:

  • Q: What are the advantages of pull chain control?
    A: Pull chain control allows the operator to manually regulate lifting and lowering speed for accurate load placement without requiring a pendant hose.
  • Q: Is this hoist intended for continuous-duty operation?
    A: Yes. The HLK Series is rated for a 100% duty cycle and HMI Duty Classification A5, making it suitable for demanding industrial production environments.
  • Q: What does the 10 ft control drop mean?
    A: The control drop is the length of the pull chain, allowing the operator to safely control the hoist from ground level beneath the installed unit.
  • Q: Can this hoist be installed on a trolley?
    A: Yes. HLK Series hoists are available in hook-mounted and trolley-mounted configurations when paired with compatible supporting equipment.



industrial-tools-parts-breakdown.pngLooking for more information about Ingersoll Rand Air Hoist? Click here to view the Catalog.

Need more feet of chain or a longer pendant hose? How about a motorized trolley? Give us a call at 1-800-608-5210 or email info@intlairtool.com. We can help!

Specifications
Type:
Air Chain Hoist
Series:
HLK Series
Capacity (tons):
6
Capacity (lbs):
13200
Lift (ft.):
10
Drop (ft.):
10
Control:
Pull Chain Control
Top Suspension:
Swivel Top Hook
Bottom Suspension:
Steel Snap Hook
Chain Falls:
4
Hook Mount Headroom (in.):
36.2
Trolley Mount Headroom (in.):
32.2
Lifting Speed Rated Load (ft/min):
3.5
Lifting Speed Rated Load (m/min):
1.1
Lifting Speed No Load (ft/min):
8.4
Lifting Speed No Load (m/min):
2.6
Lowering Speed Rated Load (ft/min):
7.6
Lowering Speed Rated Load (m/min):
2.3
Lowering Speed No Load (ft/min):
4.8
Lowering Speed No Load (m/min):
1.5
Chain Size:
9.5 x 25.7
Warranty Information
One year warranty against manufacturers defects.
