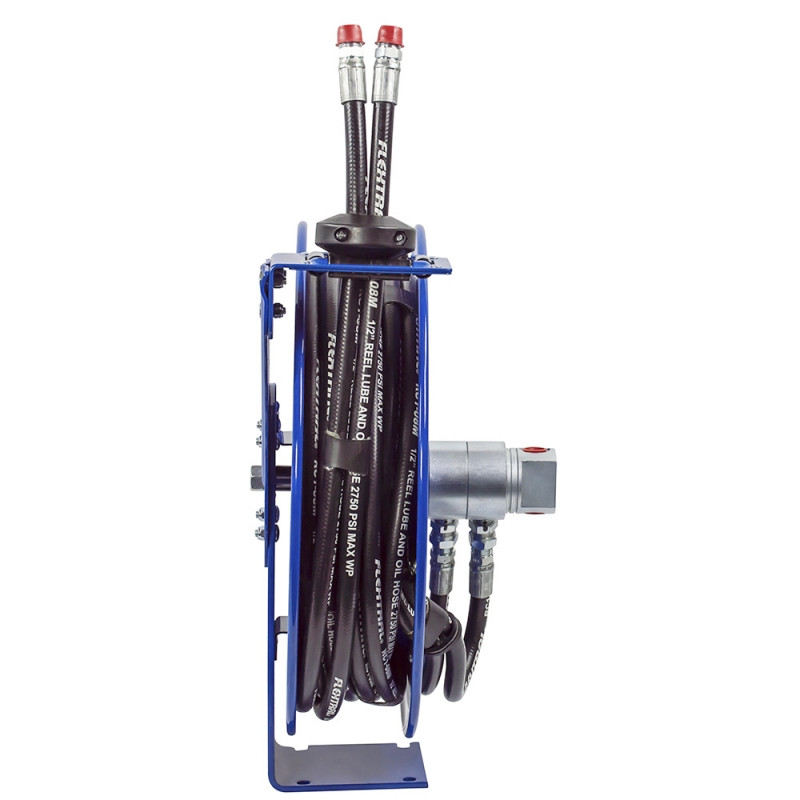

Coxreels MPDL-N-330 dual hydraulic hose spring rewind hose reel is engineered for efficient management of paired hydraulic hose assemblies used on mobile equipment, service trucks, industrial machinery, and hydraulic-powered systems. As part of the MPD Series, this reel is designed to accommodate dual 3/8-inch hoses with a 30-foot hose capacity and a maximum operating pressure of 3000 PSI. The automatic spring rewind mechanism retracts both hose lines after use, helping keep work areas organized while protecting valuable hydraulic hoses from unnecessary wear.
Supplied in a Less Hose configuration, this reel allows users to install hydraulic hoses that best match their equipment and application requirements. The dual-hose design keeps paired hydraulic lines together for cleaner routing, while automatic rewind reduces manual effort and helps improve productivity during repetitive hose deployment and retrieval.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Dual Hydraulic Hose Spring Rewind Hose Reel | Series: MPD Series | Model: MPDL-N-330 | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 30 ft | Maximum Pressure: 3000 PSI
Features:
- Spring rewind mechanism automatically retracts both hydraulic hoses for efficient hose management.
- Dual hose design keeps paired hydraulic lines organized during operation and storage.
- Designed to accommodate up to 30 feet of dual 3/8-inch hydraulic hose.
- 3000 PSI maximum pressure rating supports demanding hydraulic service when used with compatible hose and fittings.
- Less hose configuration allows users to install hydraulic hoses suited to their specific application.
- Helps reduce hose kinking, abrasion, and tangling while promoting a cleaner and safer work environment.
Made in USA:
Applications:
- Hydraulic-powered industrial machinery and equipment.
- Mobile hydraulic service and maintenance vehicles.
- Construction, agricultural, and utility equipment service.
- Industrial hydraulic systems requiring organized dual hose management.
- Manufacturing facilities utilizing paired hydraulic hose assemblies.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without hydraulic hoses. Compatible 3/8-inch hydraulic hoses must be installed separately. - Q: Why does this reel use a dual hose design?
A: The dual configuration keeps paired hydraulic lines together, helping simplify hose routing and improve organization during operation. - Q: How much hose can this reel accommodate?
A: This model is designed to hold dual 3/8-inch hydraulic hoses with a capacity of up to 30 feet each. - Q: What is the maximum operating pressure?
A: The reel is rated for applications up to 3000 PSI when used with compatible hydraulic hoses and fittings.
| HOSE | LESS HOSE | SIZE INDEX |
||||||
|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
LESS HOSE SKU | APRX. LBS. |
|
|
MPD SERIESMedium pressure reels are furnished standard with dual-hydraulic hose banded together every 2-3 feet with power strip-type clamps. Maximum temperature 212°F.
|
||||||||
| - | - | - | - | - | MPDL-N-150 | 62 | 1 | |
| MPD-N-330 | 3/8" | 11/16" | 30 | 3,000 | 78 | MPDL-N-330 | 62 | 1 |
| MPD-N-430 | 1/2" | 13/16" | 30 | 2,500 | 79 | MPDL-N-430 | 62 | 1 |
|
TDMP SERIESMedium pressure reels are furnished standard with dual-hydraulic hose banded together every 2-3 feet with power strip-type clamps. Maximum temperature 212°F.
|
||||||||
| TDMP-N-350 | 3/8" | 11/16" | 50 | 3,000 | 104 | TDMPL-N-350 | 79 | 2 |
| TDMP-N-450 | 1/2" | 13/16" | 50 | 2,500 | 106 | TDMPL-N-450 | 79 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
