Coxreels MPDL-N-150 Dual Hydraulic Hose Spring Rewind Hose Reel | MPD Series | 1/4" Hose Diameter | 50' Hose Length | 3000 Max PSI | Less Hose

When hydraulic lines need organized storage and controlled rewind in service trucks, maintenance bays, and equipment work areas, the Coxreels MPDL-N-150 MPD Series Reel provides a spring rewind platform for dual hydraulic applications. This model is configured less hose, giving buyers a bare reel for pairing with compatible hydraulic hose already specified for the system. Its 1/4" hose I.D., 50 ft hose capacity, and 3,000 PSI maximum pressure rating make it suitable for medium-pressure hydraulic circuits where hose reach, pressure compatibility, and clean storage all matter.

The MPD Series uses a spring driven rewind mechanism for controlled hose retrieval and includes Coxreels’ dual hydraulic layout with a one-sided supply/return hookup. The adjustable guide arm supports wall, floor, vehicle, and overhead mounting positions, while the steel base, support post, precision bearings, and external fluid path swivel help the reel fit demanding shop and field service installations.

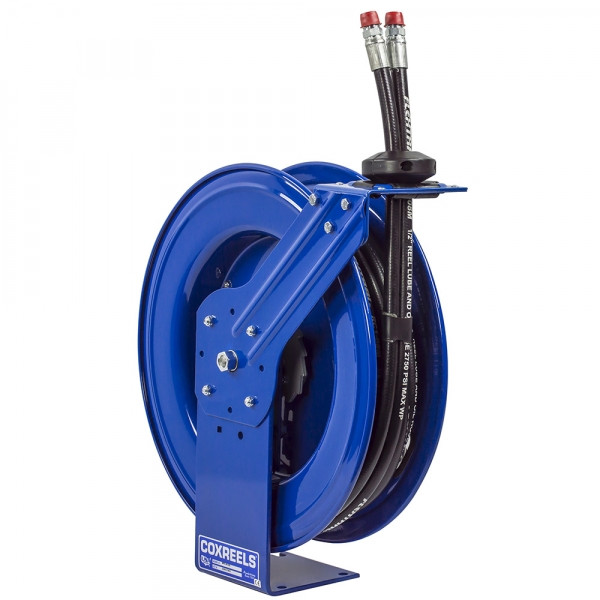

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Dual Hydraulic Spring Rewind Hose Reel | Series: MPD Series | Model: MPDL-N-150 | Configuration: Less Hose | Hose I.D.: 1/4" | Hose O.D.: 1/2" | Hose Capacity: 50 ft | Max Pressure: 3,000 PSI | Hose Included: No | Overall Dimensions: 11.5" W x 21.13" H x 19.5" L | Mounting Pattern: 4" M x 5" N | Base: 6" X x 6" Y | Ship Weight: 62 lbs

Features:

• Dual hydraulic reel layout supports supply and return hose management from one reel location.

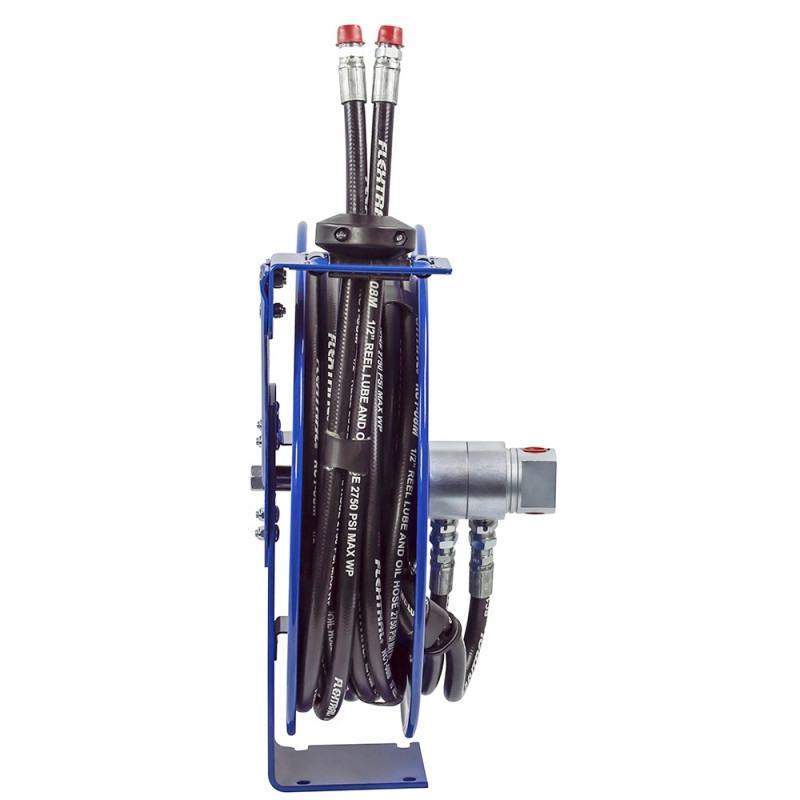

• External fluid path with dual port 90° full-flow 1/2" ORB port swivel inlet supports hose installation and seal maintenance without removing the reel from its mount.
• TEFLON swivel seals are used for hydraulic service compatibility.
• Guide arm adjusts to wall, floor, vehicle, and overhead positions for flexible installation in shops, trucks, and equipment service areas.
• Solid one-piece, heavy gauge 1/4" steel base and support post provide a stable mounting platform.
• 1" solid steel axle and lubricated precision bearings support smooth reel rotation during hose payout and rewind.
• Enclosed factory tuned and matched cartridge-style spring motor provides spring driven retraction.
• Multi-position lock ratchet mechanism secures hose at the desired working length.

Made in USA:

2 Year Warranty

Applications:

• Hydraulic equipment service trucks where dual hydraulic hoses need clean storage and controlled rewind between jobs.
• Industrial maintenance and MRO areas handling medium-pressure hydraulic oil circuits and mobile equipment repairs.
• Fleet and utility service operations where hose organization helps reduce floor clutter and improves hose access around vehicles.
• Shop hydraulic workstations where a less-hose reel is preferred so the buyer can install hose matched to the system requirements.
• Vehicle-mounted hydraulic service setups requiring a compact spring rewind reel with wall, floor, vehicle, or overhead mounting flexibility.

FAQs:

• Q: What does “less hose” mean on the MPDL-N-150?
  A: It means the reel is supplied without hose installed. The buyer must provide compatible hydraulic hose separately before putting the reel into service.
• Q: Is this reel for one hose or dual hydraulic hose service?
  A: The MPD Series is built for dual hydraulic applications, commonly used for paired supply and return hose routing. The hose selected must match the reel capacity, pressure rating, and hydraulic system requirements.
• Q: What hose size should be used with this model?
  A: This model is listed for 1/4" hose I.D. with 1/2" hose O.D. and up to 50 ft capacity. Confirm the selected hose’s pressure rating, outside diameter, bend radius, and fluid compatibility before installation.
• Q: Can the MPDL-N-150 be mounted on a truck?
  A: Yes, the guide arm can be adjusted for vehicle mounting as well as wall, floor, and overhead positions. The mounting surface must be strong enough to support the reel, hose, fluid load, and operating forces.
• Q: What pressure range is this reel intended for?
  A: The MPDL-N-150 is rated for 3,000 PSI maximum pressure, placing it in Coxreels’ medium-pressure reel range. Do not exceed the lowest pressure rating of the reel, hose, fittings, or hydraulic system components.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
