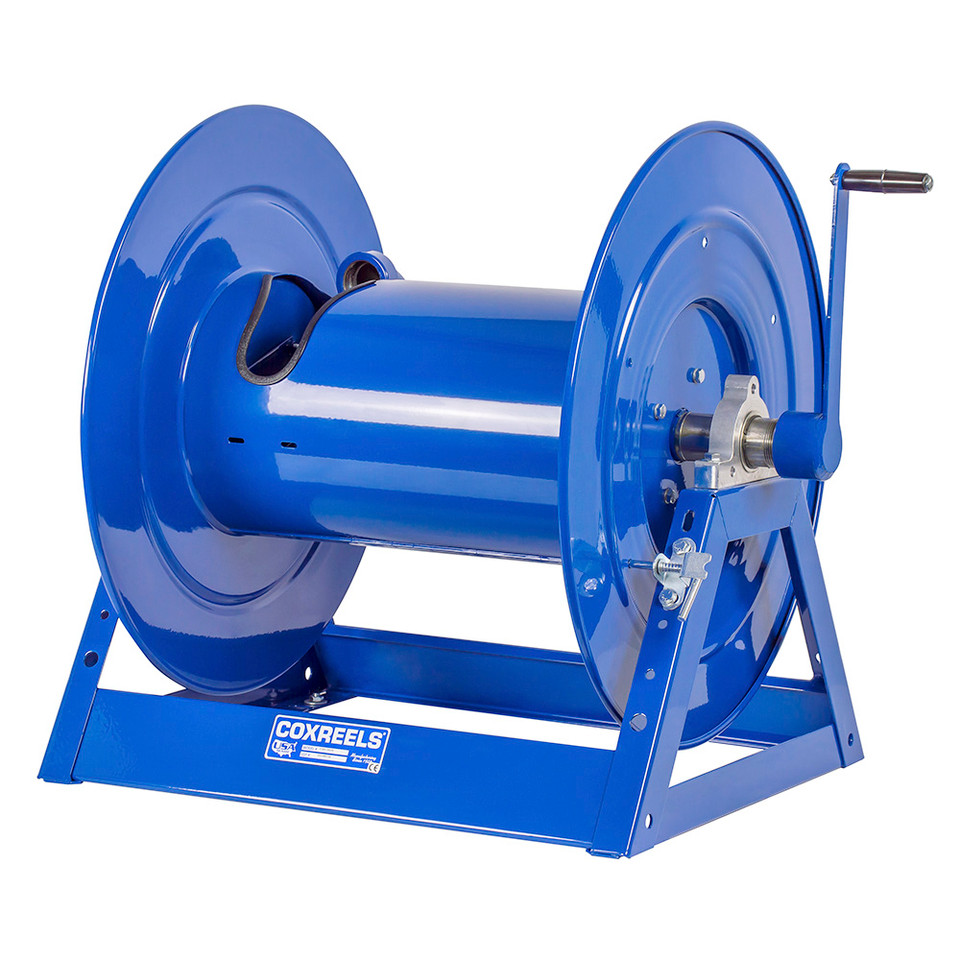

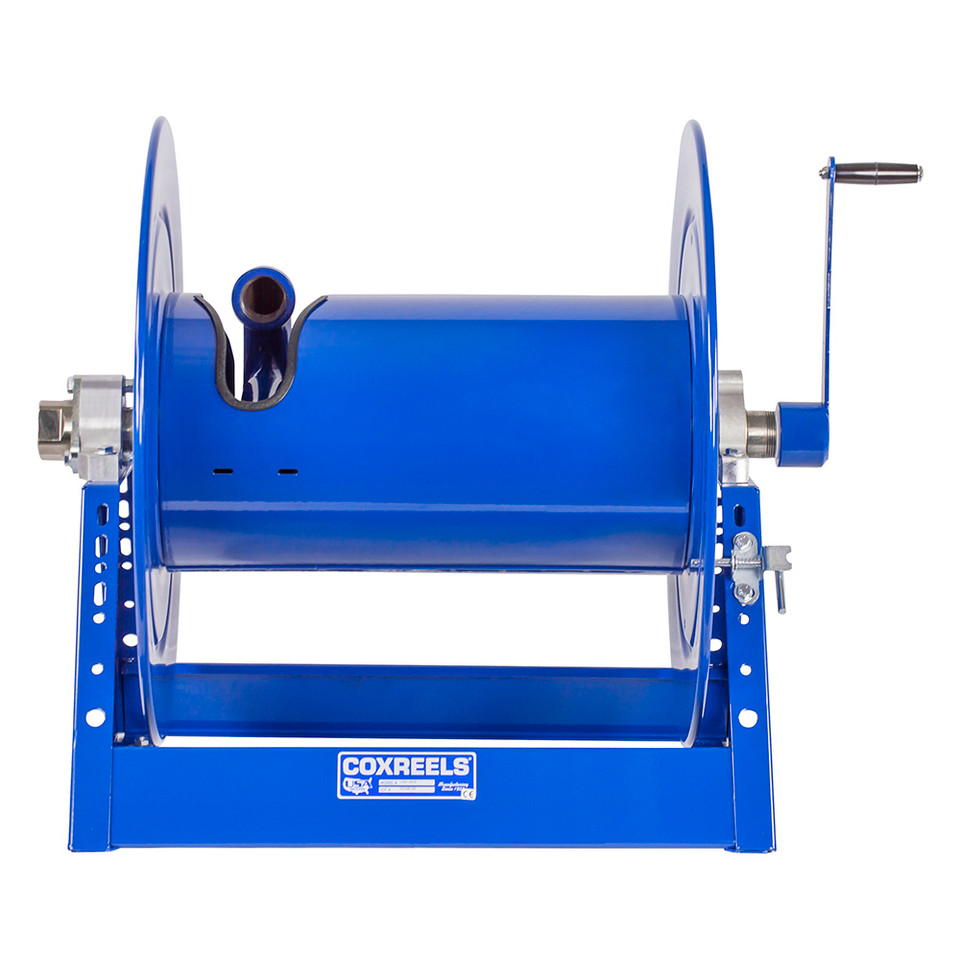

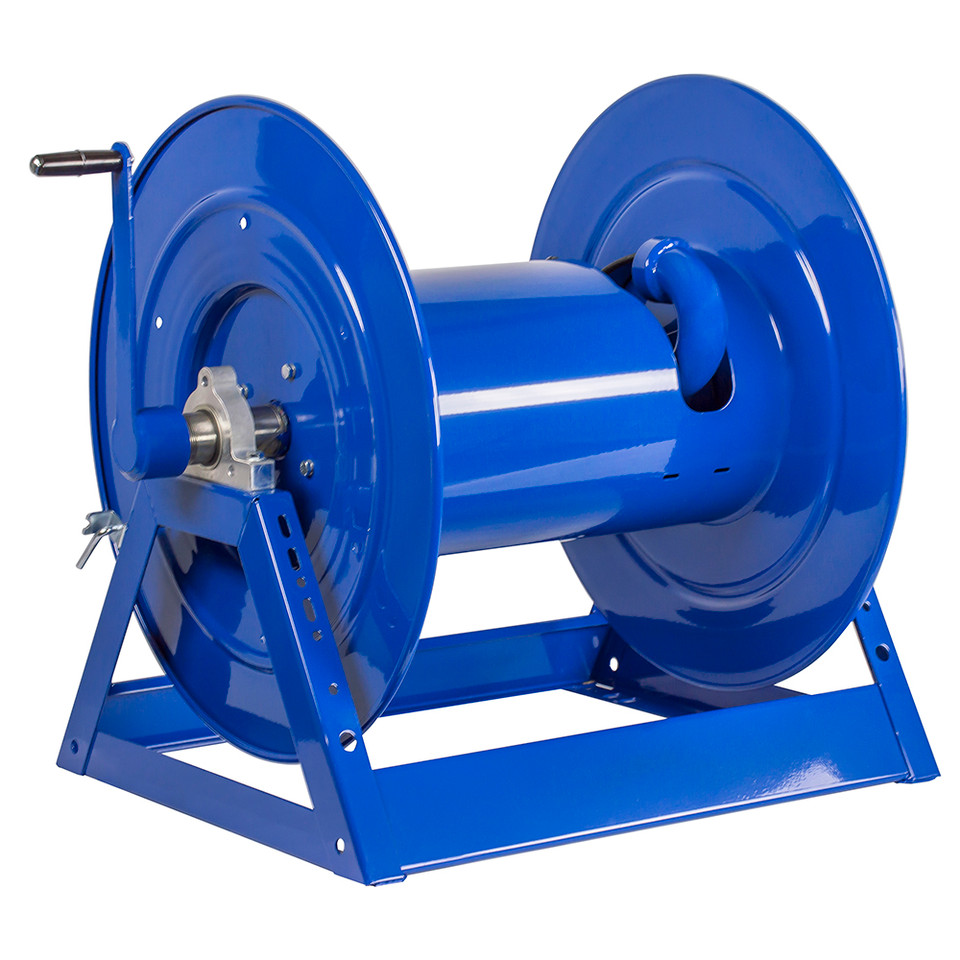

When long runs of large-diameter hose need to stay organized and manageable, the Coxreels 1185-2528 Hand Crank Hose Reel provides capacity for up to 150 ft of 1-1/2" I.D. hose while supporting pressures up to 1,500 PSI. Part of the 1185 Series, this manually operated reel is built around an open-drum configuration that promotes a flat, smooth hose wrap and helps prevent crimping as large hose is wound onto the drum. Its capacity makes it particularly useful where high-volume fluid delivery and substantial hose reach are required.
The 1185-2528 uses an external fluid path with an in-line aluminum straight, full-flow NPT swivel inlet, helping maintain an unrestricted flow path through the reel. A welded "A" frame base supports the additional weight associated with large-diameter hose, while the hand crank gives the operator direct control over hose retrieval without requiring an electric, hydraulic, or pneumatic rewind system. Coxreels lists the 1185 Series for applications including bulk liquid handling and oil/lubrication service.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1185 Series | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 150 ft | Inlet Swivel and Outlet Riser: 1 1/2" Female NPT | Swivel Seal: Nitrile | Max Pressure: 1,500 PSI | Weight: 122 lbs
Features:
- Hand crank rewind provides manual control over hose retrieval without requiring a separate powered rewind source.
- Large-capacity drum accommodates up to 150 ft of 1-1/2" I.D. hose for applications requiring substantial reach and high-volume delivery.
- Exclusive low-profile outlet riser and open drum configuration promote a flat, smooth hose wrap while helping prevent hose crimping.
- All-welded “A” frame base provides structural support for the added weight of long lengths of large-diameter hose.
- External fluid path incorporates an in-line aluminum straight, full-flow NPT swivel inlet.
- 1,500 PSI maximum pressure rating supports compatible fluid-transfer applications within the reel's specified operating limits.
- Open-frame construction keeps the hose drum accessible during winding, inspection, and hose installation.
Made in USA:
Applications:
- Bulk liquid handling systems requiring storage and controlled deployment of large-diameter hose.
- Oil and lubrication operations using compatible hose and fluids within the reel's pressure rating.
- Mobile equipment installations where long hose capacity and a manually operated rewind system are preferred.
- Industrial fluid-transfer stations that need up to 150 ft of 1-1/2" hose readily available while keeping excess hose organized.
FAQs:
- Q: Does the Coxreels 1185-2528 include hose?
A: No. The 1185-2528 is supplied less hose. It provides capacity for up to 150 ft of 1-1/2" I.D. hose with a 2-1/16" O.D.; compatible hose must be selected separately. - Q: What is the maximum working pressure of the 1185-2528?
A: Coxreels rates this model for a maximum pressure of 1,500 PSI. The installed hose and other system components must also be suitable for the application's pressure and fluid requirements. - Q: Is the 1185-2528 a spring rewind reel?
A: No. This model uses a hand crank, allowing the operator to manually retrieve and store the hose on the drum. - Q: How much mounting space does this reel require?
A: Coxreels lists overall dimensions of 38.5" wide x 30" high x 28" long. Installation planning should also account for hose deployment, crank operation, plumbing connections, and adequate clearance around the reel. - Q: What types of jobs is the 1185 Series intended for?
A: Coxreels identifies the 1185 Series for applications that include bulk liquid handling and oil/lubrication service. Fluid and hose compatibility should be confirmed for the specific system before installation.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-2528 | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-A | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-AB | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-C | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-E | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-EA | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-ED | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
| 1185-2528-EF | 1-1/2" | 2-1/16" | 150 | 1-1/4" | 1-13/16" | 220 | 1-1/2" F NPT | 1,500 | 122 | 6 | |
