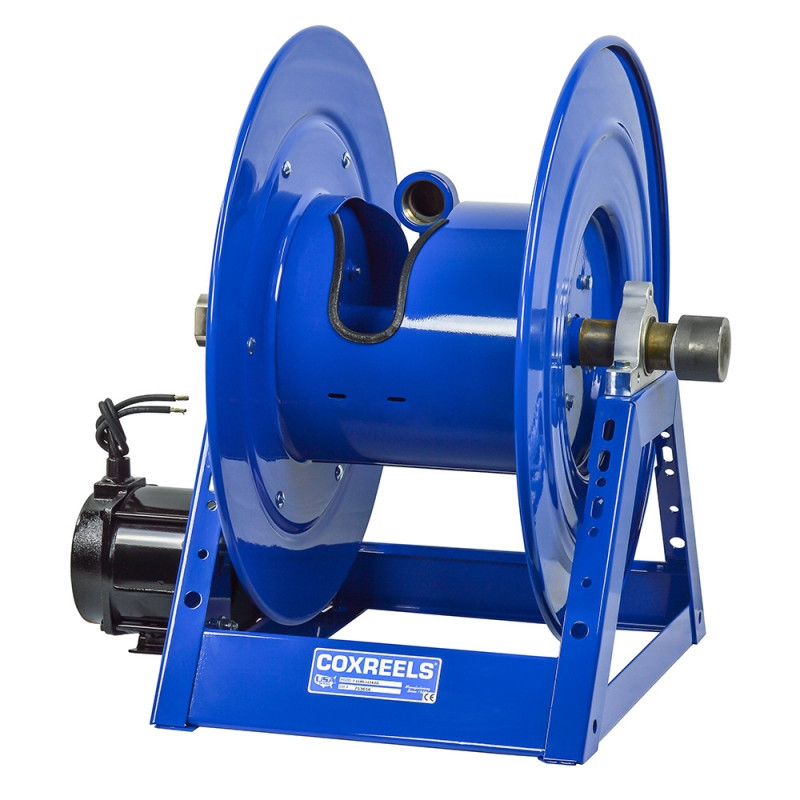

Coxreels 1185-2528-EA Electric 115V AC Explosion Proof Motor Rewind Hose Reel | 1185 Series | 1-1/2" Hose Diameter | 150' Hose Length | 1500 Max PSI | Less Hose

Built for powered retrieval of extra-long, large-diameter hose runs where a 115V AC explosion proof motor option is required, the Coxreels 1185-2528-EA electric motor rewind hose reel provides 1-1/2" I.D. x 150 ft hose capacity with a 1500 PSI maximum pressure rating. The 1185 Series is designed for increased-volume delivery applications where facility maintenance teams, fleet service crews, utility operators, and industrial service setups need a strong reel platform for heavier hose with AC-powered rewind.

This model is supplied less hose, allowing the buyer to install a compatible 1-1/2" hose matched to the application's fluid, pressure, temperature, fittings, and installation requirements. The 115V AC explosion proof motor rewind provides powered hose retrieval where compatible AC power is available, while Coxreels' all-welded steel 'A' frame supports heavier hose loads. The low profile outlet riser and open drum slot help guide long hose runs into a flatter, smoother wrap, and the adjustable tension brake helps control drum movement during payout and rewind.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Electric 115V AC Explosion Proof Motor Rewind Hose Reel | Series: 1185 Series | Model: 1185-2528-EA | Motor: 115V AC Explosion Proof, 1/2 HP | Configuration: Less Hose | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 150 ft | Hose Included: No | Max Pressure: 1500 PSI

Features:

• Electric 115V AC explosion proof motor rewind provides powered hose retrieval for compatible installations requiring this motor configuration.
• 1/2 HP motor option supports motor-driven rewind on the 1185 Series reel platform.
• 1185 Series design handles long lengths of large diameter hose for increased volume delivery applications.
• 1-1/2" x 150 ft hose capacity supports extended hose reach for large-volume transfer layouts and remote work points.
• All welded steel 'A' frame construction provides strength for heavier hose loads and mobile applications.
• Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat, smooth hose wrap.
• External fluid path with full-flow NPT swivel inlet supports efficient flow through the reel and simplifies seal access.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and motorized rewind.
• Adjustable tension brake helps prevent free-wheeling during operation.
• Reliable chain and sprocket drive supports motor-driven rewind operation.
• Rolled edges and ribbed discs provide strength, hose protection, and safer handling around the reel drum.
• CPC powder coat finish helps resist chips and rust in industrial, fleet, utility, and service environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial fluid transfer stations requiring 150 ft of large 1-1/2" hose capacity with powered 115V AC rewind.
• Fleet and heavy equipment service areas where extra hose reach is needed for maintenance, transfer, or utility work.
• Plant maintenance and MRO departments handling high-volume air, water, oil, or compatible fluid transfer through customer-supplied hose.
• Construction, utility, and field service operations that need a rugged 'A' frame reel platform with greater reach than 100 ft or 125 ft models.
• Facilities reviewing explosion proof motor requirements for reel-powered hose retrieval in approved installation environments.

FAQs:

• Q: Does the Coxreels 1185-2528-EA include hose?
  A: No. This model is supplied less hose. The buyer must install a compatible 1-1/2" I.D. hose that matches the application’s pressure, temperature, fluid, and fitting requirements.
• Q: What does 115V AC explosion proof motor rewind mean?
  A: It means the reel uses a 115V AC electric motor configured as an explosion proof motor option for powered hose rewind. Final suitability for any hazardous or classified location must be confirmed by the buyer, installer, or site safety authority based on the full installation.
• Q: What hose size will this reel hold?
  A: This reel is listed for 1-1/2" I.D. hose with a 2-1/16" O.D. and 150 ft capacity. Hose outside diameter matters because a larger O.D. hose can reduce the amount of hose the reel can safely store.
• Q: Can this reel be used at 1500 PSI?
  A: The reel is rated to 1500 PSI, but the final system pressure must not exceed the lowest-rated component in the hose assembly. Confirm the installed hose, fittings, swivel, and system requirements before pressurizing.
• Q: Why choose the 1185-2528-EA instead of a non-explosion proof electric rewind model?
  A: The 1185-2528-EA uses a 115V AC explosion proof motor configuration, while non-explosion proof electric models are intended for installations that do not require that motor option. Select the motor type based on the available power source and the installation environment.
