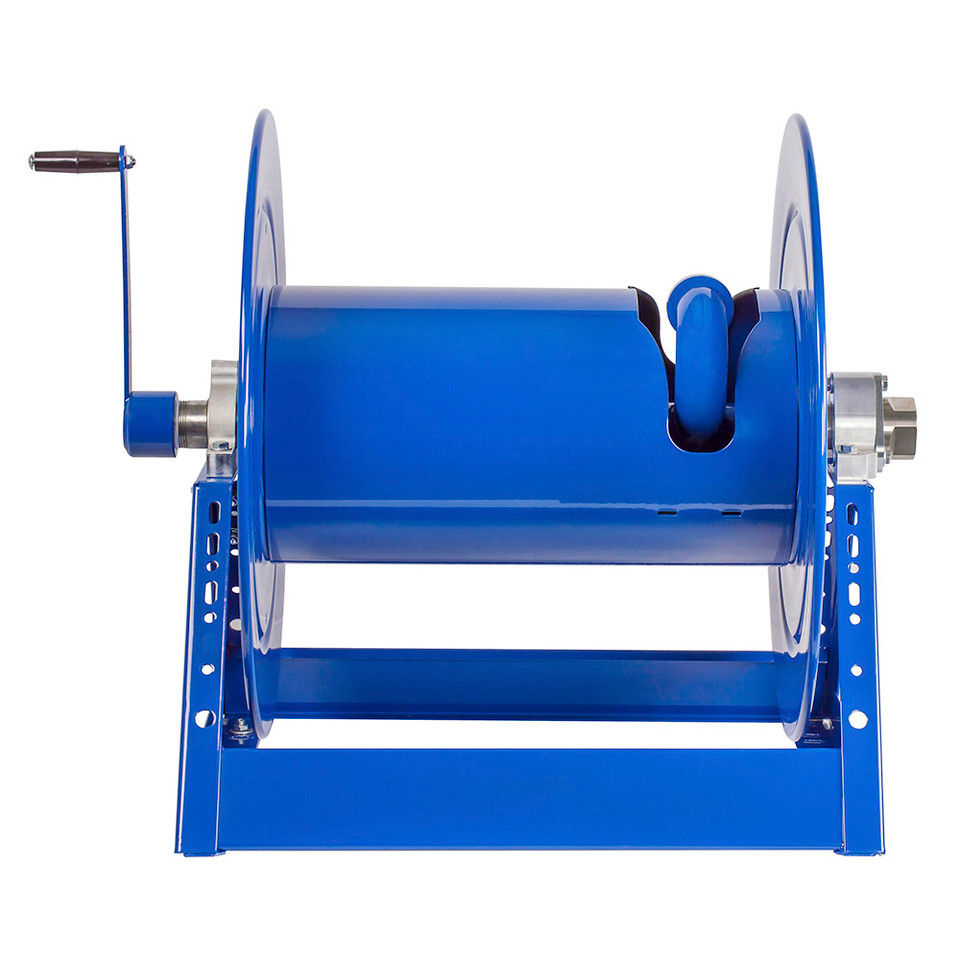

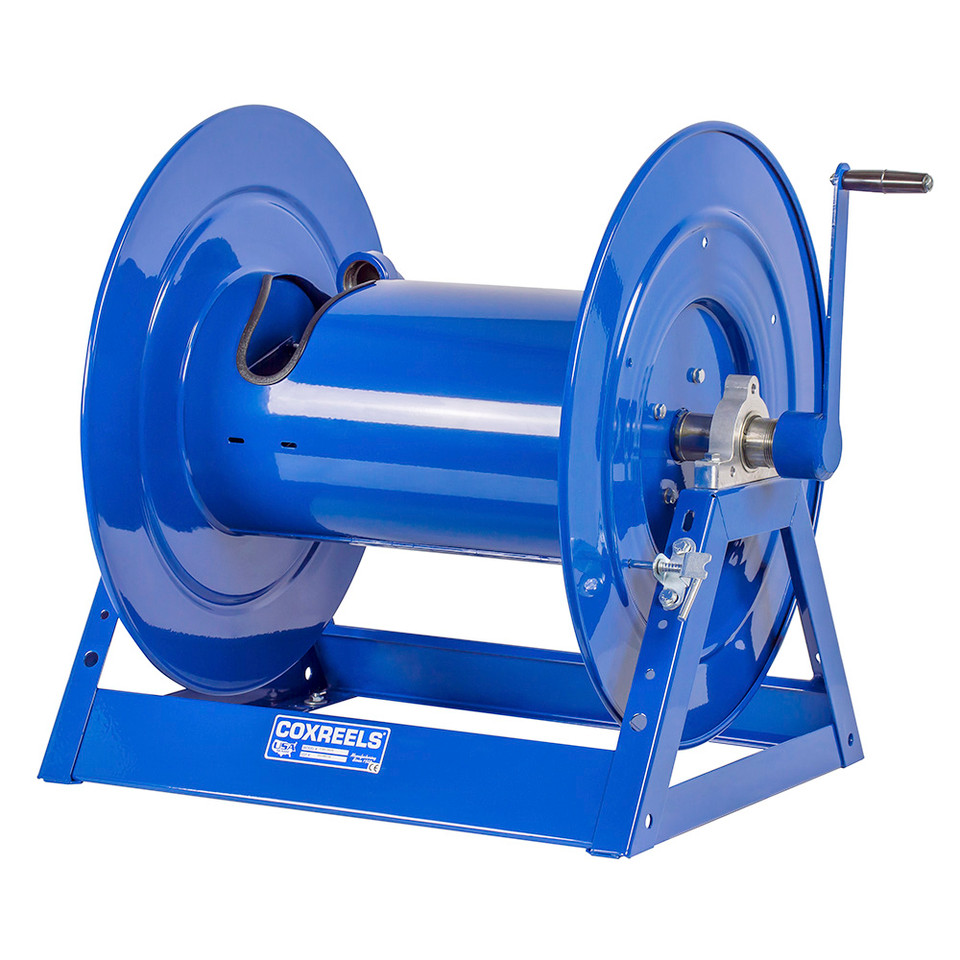

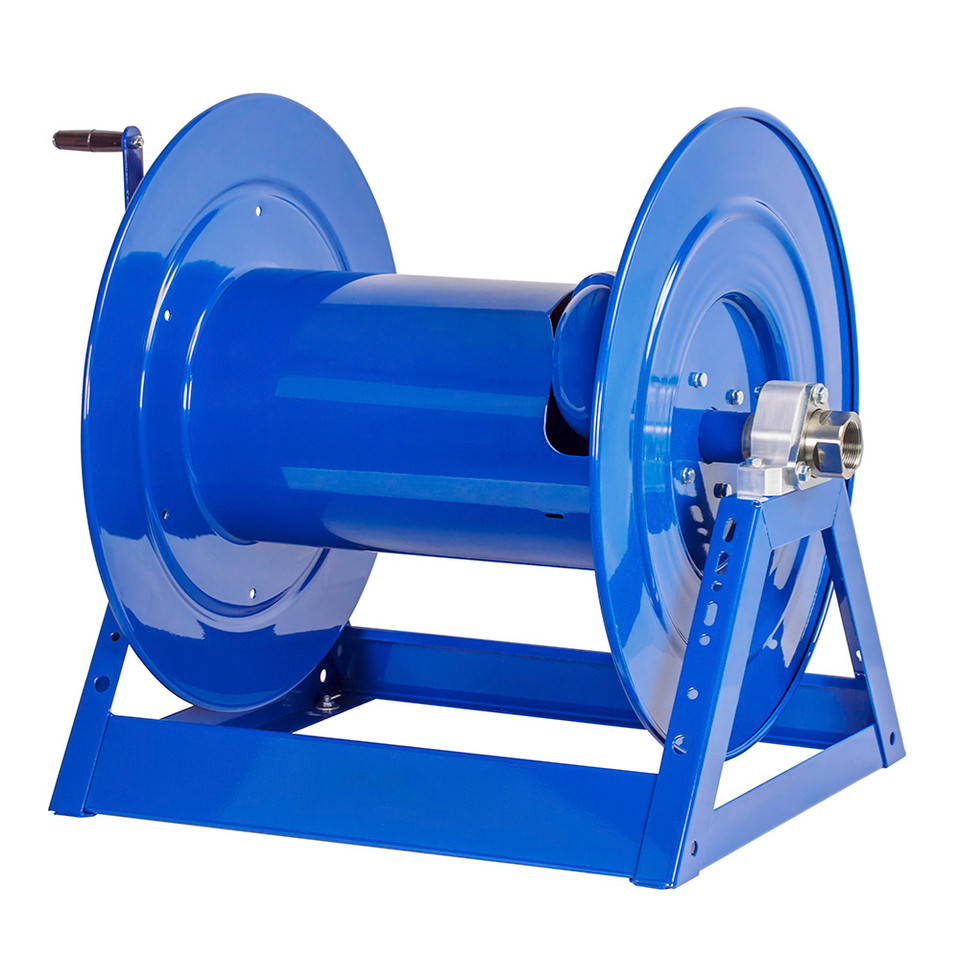

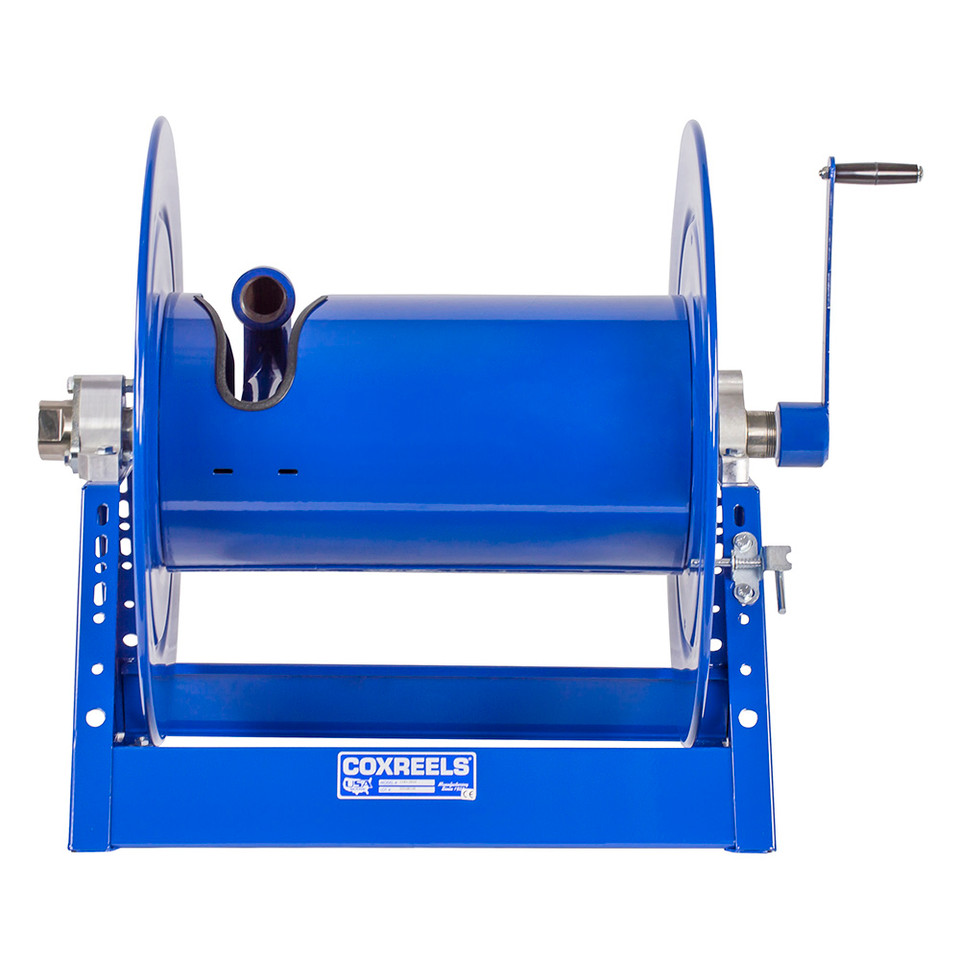

For fluid-transfer systems that need more reach than a 50-foot reel without moving to a full 100-foot configuration, the Coxreels 1185-1524 Hand Crank Hose Reel stores up to 75 feet of 1 1/2-inch I.D. hose. Its 1,500 PSI maximum working pressure supports compatible medium-pressure applications, while the large-capacity drum helps organize high-volume hose used in plant, utility, agricultural, and mobile-service installations.
This 1185 Series reel features an external fluid path with a straight, full-flow swivel inlet to help maintain flow through the reel. Coxreels' low-profile outlet riser and open drum slot guide the hose into a flat wrap that reduces sharp bends during retrieval. The direct hand crank gives the operator controlled manual rewind, and the long-handled locking pin prevents unwanted drum rotation during storage or transport.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1185 Series | Configuration: Less Hose | Hose I.D.: 1 1/2" | Hose O.D.: 2 1/16" | Hose Capacity: 75 ft | Inlet Swivel and Outlet Riser: 1 1/2" Female NPT | Swivel Seal: Nitrile | Max Pressure: 1,500 PSI | Ship Weight: 81 lbs
Features:
- 75-foot capacity provides extended working reach while keeping 1 1/2-inch I.D. hose organized between transfer operations.
- External fluid path incorporates an in-line, full-flow NPT swivel inlet to support efficient fluid movement through compatible systems.
- Nitrile swivel seals accommodate approved fluids when matched with compatible hose, fittings, and system components.
- Exclusive low-profile outlet riser and open drum slot promote a flat, smooth hose wrap with less crimping.
- Solid steel direct hand crank with a smooth round handle provides controlled manual hose retrieval.
- Long-handled locking pin secures the drum against unintended rotation during storage and transport.
- One-piece, all-welded steel "A" frame supports the weight of large-diameter hose in stationary and mobile installations.
- Rolled disc edges, ribbed drum construction, lubricated bearings, and a chip-resistant CPC powder-coat finish support reel strength and smooth operation.
Made in USA:
Applications:
- Industrial fluid-transfer stations requiring organized storage for large-diameter hose.
- Agricultural and utility operations dispensing water or other compatible liquids over extended distances.
- Oil and lubrication delivery systems where the hose, nitrile seals, and fittings are suitable for the transferred fluid.
- Service trucks, trailers, skids, and equipment platforms that use manual hose retrieval.
- Plant maintenance and facility-support work requiring up to 75 feet of 1 1/2-inch hose.
FAQs:
- Q: Does the Coxreels 1185-1524 come with hose installed?
A: No. This model is supplied less hose, meaning the buyer must purchase and install a compatible hose separately. - Q: What hose will fit on this reel?
A: The published capacity is 75 feet of hose measuring 1 1/2 inches I.D. and 2 1/16 inches O.D. Using hose with a different outside diameter can change the amount that fits on the drum. - Q: Is the 1185-1524 a spring rewind reel?
A: No. The hose is retrieved manually with the direct hand crank. A locking pin holds the drum in position when the reel is not being operated. - Q: Can the reel operate continuously at 1,500 PSI?
A: The reel has a maximum working pressure of 1,500 PSI. The hose, fittings, seals, and remaining system components must also be rated for the actual pressure and transferred fluid. - Q: How much mounting space does this model require?
A: The reel measures 29 inches wide, 26 inches high, and 24 inches long. Its mounting pattern is 18.75 by 16 inches, with a base footprint of 21 by 22.25 inches.
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required | INLET SWIVEL & OUTLET RISER | PSI | APRX. LBS. | SIZE INDEX | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||||
|
1185 SERIES - IN-LINE SWIVEL
|
|||||||||||
| 1185-1524 | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-A | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-AB | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-C | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-E | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EA | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-ED | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
| 1185-1524-EF | 1-1/2" | 2-1/16" | 75 | 1-1/4" | 1-13/16" | 100 | 1-1/2" F NPT | 1,500 | 81 | 2 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 1185 Series
- Hose Inside Diameter (in.)
- 1-1/2
- Hose Outside Diameter (in.)
- 2-1/16
- Hose Length (ft.)
- 75
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 1500
- Width (in.)
- 29
- Height (in.)
- 26
- Length (in.)
- 24
- Mounting Pattern (in.)
- 18.75M
- Mounting Pattern (in.)
- 16N
- Base (in.)
- 21X
- Base (in.)
- 22.25Y
