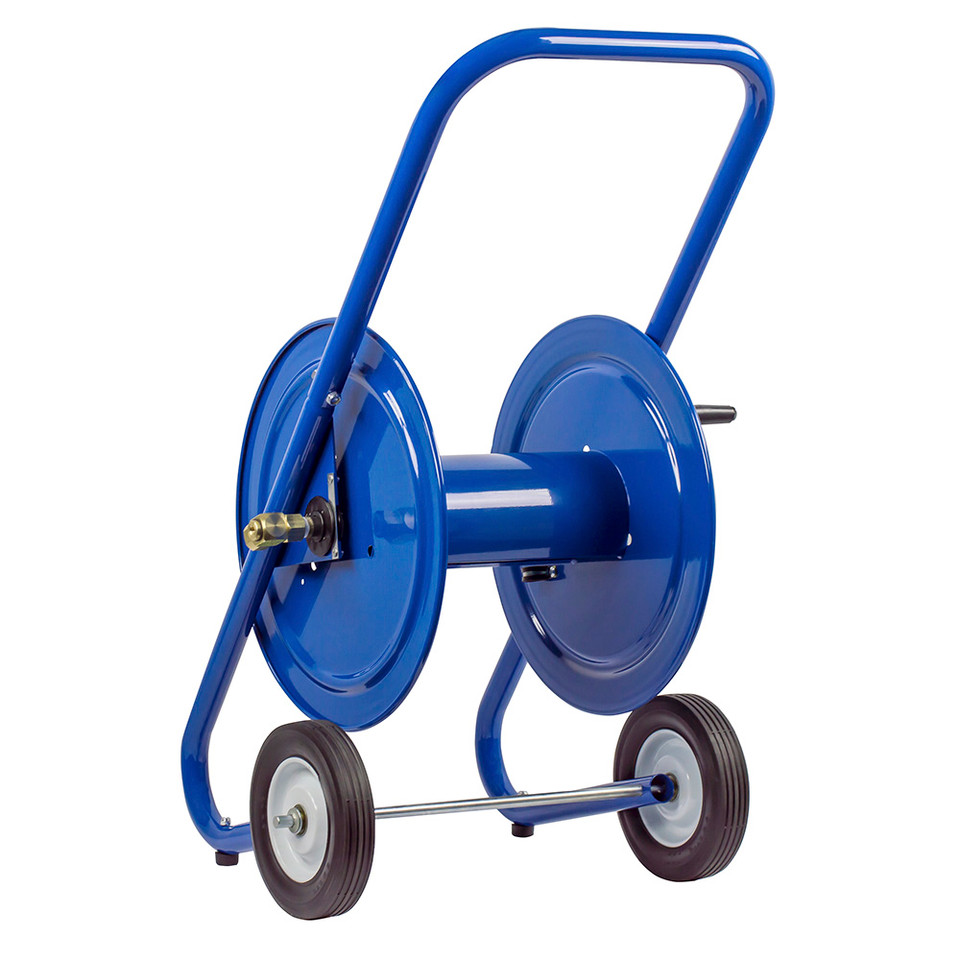

Coxreels 117-4-225-DM DM Series Hand Crank Dolly Hose Reel is designed for portable storage and manual handling of high-pressure hose. This model accommodates 225 ft of 1/2" I.D. hose, is rated for a maximum working pressure of 4,000 PSI, and is supplied in a less hose configuration, allowing the user to install a compatible hose separately. The dolly-mounted design provides convenient mobility while the direct hand crank offers controlled hose rewind.
Built as part of the Coxreels DM Series, this reel combines a portable dolly frame with durable steel construction for applications requiring long hose lengths and manual rewind. The less hose configuration provides flexibility to select the appropriate hose for the intended high-pressure application.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Dolly Hose Reel | Series: DM Series | Model: 117-4-225-DM | Configuration: Less Hose | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Length: 225 ft | Max Pressure: 4,000 PSI | Approximate Weight: 39 lbs | Rewind: Direct Hand Crank
Features:
- Portable dolly frame for convenient transport around the job site.
- Direct hand crank provides controlled manual hose rewind.
- Machined full-flow brass swivel for smooth fluid transfer.
- Adjustable tension brake helps prevent free-wheeling during operation and transport.
- CPC powder coat finish helps resist corrosion.
- Designed to accommodate up to 225 feet of 1/2-inch hose.
- Less hose configuration allows installation of a compatible hose selected by the user.
Made in USA:
Applications:
- Pressure washing systems.
- Industrial maintenance.
- Commercial cleaning equipment.
- Mobile service vehicles.
- Portable high-pressure hose management.
FAQs:
- Q: Does the 117-4-225-DM include hose?
A: No. The manufacturer lists this model as a less hose configuration. - Q: What hose size is this reel designed for?
A: It is designed for 1/2-inch I.D. hose with a maximum hose O.D. of 3/4 inch. - Q: What is the hose capacity?
A: The reel accommodates up to 225 feet of hose. - Q: What is the maximum working pressure?
A: The manufacturer rates this reel at 4,000 PSI maximum working pressure. - Q: How is the hose rewound?
A: The reel uses a direct hand crank for manual hose rewind.
| LESS HOSE SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX LBS. | SIZE INDEX | ||||
|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||
|
CM SERIES CADDY MOUNT
|
|||||||||
| 112-3-100-CM | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 | 18 | 1 |
| 112-3-150-CM | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 | 22 | 2 |
| 117-4-225-CM | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 | 28 | 3 |
|
DM SERIES DOLLY MOUNT
|
|||||||||
| 117-3-200-DM | 3/8" | 5/8" | 200 | 1/4" | 1/2" | 350 | 4,000 | 37 | 4 |
| 117-4-225-DM | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 | 39 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
