Coxreels 117-3-200-DM DM Series Hand Crank Dolly Hose Reel is designed for portable hose management in high-pressure applications. This model accommodates 200 ft of 3/8" I.D. hose, is rated for a maximum working pressure of 4,000 PSI, and is supplied in a less hose configuration. The dolly-mounted design with solid rubber tires allows the reel to be transported easily between job sites while providing controlled manual hose rewind.
The DM Series is intended for long lengths of hose where portability is required. According to the manufacturer, the reel features a high-quality steel frame, direct hand crank, solid brass full-flow swivel, and adjustable tension brake to assist with safe and organized hose handling.

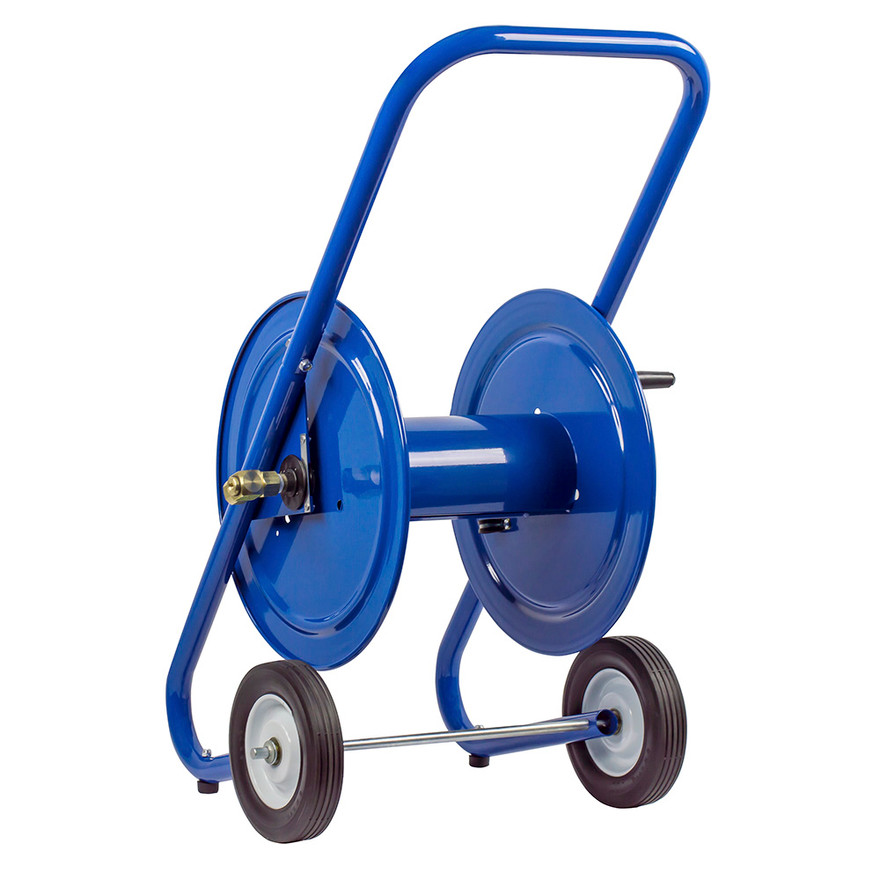

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Dolly Hose Reel | Series: DM Series | Model: 117-3-200-DM | Configuration: Less Hose | Hose I.D.: 3/8" | Hose O.D.: 5/8" | Hose Length: 200 ft | Max Pressure: 4,000 PSI | Approximate Weight: 37 lbs | Rewind: Direct Hand Crank
Features:
- Portable dolly mount design for transporting long lengths of hose.
- Machined solid brass 90° full-flow NPT swivel inlet.
- Three-piece 1-1/4" steel tube frame construction.
- Heavy-duty CNC-spun ribbed steel discs with rolled edges.
- Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.
- Durable CPC powder coat finish resists chips and corrosion.
- Solid 8-inch rubber tires and rubber front feet.
- Direct hand crank provides controlled manual hose rewind.
Made in USA:
Applications:
- Pressure washing equipment.
- Industrial maintenance.
- Commercial cleaning.
- Agricultural applications.
- Portable high-pressure hose management.
FAQs:
- Q: Does the 117-3-200-DM include hose?
A: No. The manufacturer lists this model as supplied less hose. - Q: What hose size is this reel designed for?
A: It is designed for 3/8-inch I.D. hose with a maximum outside diameter of 5/8 inch. - Q: What is the hose capacity?
A: The reel accommodates up to 200 feet of hose. - Q: What is the maximum working pressure?
A: The manufacturer rates this reel at 4,000 PSI maximum working pressure. - Q: Is this reel portable?
A: Yes. The DM Series includes a dolly frame with solid rubber tires for portability.
| LESS HOSE SKU | STANDARD CAPACITY | OPTIONAL CAPACITY Reducer Required |
PSI | APRX LBS. | SIZE INDEX | ||||
|---|---|---|---|---|---|---|---|---|---|
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | ||||
|
CM SERIES CADDY MOUNT
|
|||||||||
| 112-3-100-CM | 3/8" | 5/8" | 100 | 1/4" | 1/2" | 150 | 4,000 | 18 | 1 |
| 112-3-150-CM | 3/8" | 5/8" | 150 | 1/4" | 1/2" | 225 | 4,000 | 22 | 2 |
| 117-4-225-CM | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 | 28 | 3 |
|
DM SERIES DOLLY MOUNT
|
|||||||||
| 117-3-200-DM | 3/8" | 5/8" | 200 | 1/4" | 1/2" | 350 | 4,000 | 37 | 4 |
| 117-4-225-DM | 1/2" | 7/8" | 225 | 3/8" | 3/4" | 315 | 4,000 | 39 | 5 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
